Quick Details
-
Model Number:
-
ACR39U-U1
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

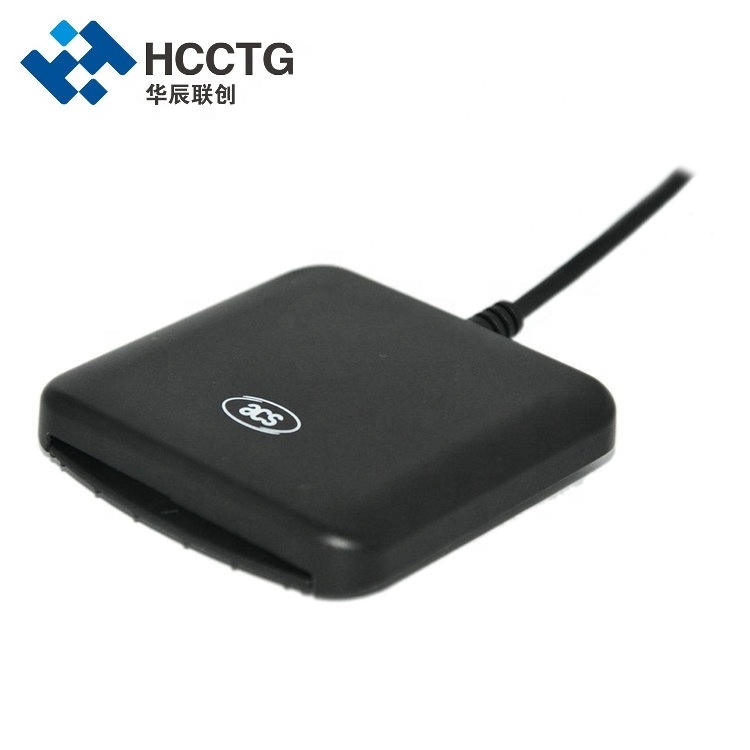

Type A IC Chip ISO 7816 USB EMV Smart Card Reader ACR39U-U1
-
Support Card:
-
ISO-7816 Class A, B and C
-
Supply Voltage:
-
Regulated 5V DC
-
Supply Current:
-
Max. 50mA
-
CLK Frequency:
-
4.8 MHz
-
MTBF:
-
500,000 hours
-
Operation System:
-
Windows, Linux, Mac, Android
-
Certifications:
-
EMV Level 1, PC/SC, CCID, CE, FCC, RoHS 2, REACH, TAA, J-LIS
-
Dimension:
-
72.2 mm (L) x 69.0 mm (W) x 14.0 mm (H)
Quick Details
-
Type:
-
Other Type
-
Interface:
-
usb
-
Brand Name:
-
HCCTG
-
Model Number:
-
ACR39U-U1
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
Type A IC Chip ISO 7816 USB EMV Smart Card Reader ACR39U-U1
-
Support Card:
-
ISO-7816 Class A, B and C
-
Supply Voltage:
-
Regulated 5V DC
-
Supply Current:
-
Max. 50mA
-
CLK Frequency:
-
4.8 MHz
-
MTBF:
-
500,000 hours
-
Operation System:
-
Windows, Linux, Mac, Android
-
Certifications:
-
EMV Level 1, PC/SC, CCID, CE, FCC, RoHS 2, REACH, TAA, J-LIS
-
Dimension:
-
72.2 mm (L) x 69.0 mm (W) x 14.0 mm (H)
Product Description
|
Dimensions
|
72.2 mm (L) × 69.0 mm (W) × 14.5 mm (H)
|
Weight
|
60g
|
|
Color
|
Black (Matte)
|
Protocol
|
USB CCID
|
|
Connector Type
|
Standard Type A
|
Power Source
|
From USB port
|
|
Speed
|
USB Full Speed (12 Mbps)
|
Supply Voltage
|
5 V
|
Support credit card payment,NFC reader，EMV certificates ，There are more ACR readers for you to choose from, if you want to know more,
please click here
The ACR39U-U1 hails new and modern technology in the world of smart card readers. It is a compact and stylish smart card reader that brings together sophisticated technology with modern design to meet rigorous requirements in various smart card–based applications.
|
Cable Length
|
1.5 m (Fixed)
|
Number of Slot
|
1 Full-sized Card Slot
|
||
|
Standard
|
ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
|
Protocol
|
T=0; T=1; Memory Card Support
|
||
|
Supply Current
|
Max. 50mA
|
Smart Card Read/Write Speed
|
9.6 Kbps – 600 Kbps
|
||
|
Short Circuit Protection
|
(+5) V/GND on all pins
|
Clock Frequency
|
4.8 MHz
|
||
|
Card Connector Type
|
Contact
|
Card Insertion Cycles
|
Min.100,000
|
||
|
LED
|
Green
|
PC-linked Mode
|
PC/SC
CT-API (through wrapper on top of PC/SC) |
||
|
Temperature
|
0 °C – 60 °C
|
Humidity
|
Max. 90% (non-condensing)
|
||
|
MTBF
|
500,000 hrs
|
Certifications/Compliance
|
EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS
(Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL |
||
|
Device Driver Operating System Support
|
Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008,
Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 LINUX/MAC/ANDROID |
|
|
||
Features
1.USB 2.0 Full Speed Interface
2.USB Type C Connector
3.Plug and Play – CCID support brings utmost mobility
4.Smart Card Reader:
Supports ISO 7816 Class A, B, and C (5 V, 3 V, 1.8 V) cards
Supports CAC
Supports SIPRNET Card
Supports J-LIS Card
Supports microprocessor cards with T=0 or T=1 protocol
Supports memory cards
Supports PPS (Protocol and Parameters Selection)
Features Short-Circuit Protection
Application Programming Interface:
Supports PC/SC
Supports CT-API CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
