Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YR
-
Model Number:
-
YR-A3-003/L/E
-
Product name:
-
12MM momentary plasitc push button switch
-
Operation Type:
-
Momentary
-
Diameter:
-
12mm
-
Button color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Electrical Life:
-
100000cycles
-
Function:
-
OFF-(ON)
-
Terminal type:
-
2 Pin Terminals/ Screw Feet
-
Material:
-
PA66+Copper/Stainless steel
-
Certification:
-
CE CQC TUL
Quick Details
-
Protection Level:
-
IP65/IK09
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YR
-
Model Number:
-
YR-A3-003/L/E
-
Product name:
-
12MM momentary plasitc push button switch
-
Operation Type:
-
Momentary
-
Diameter:
-
12mm
-
Button color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED voltage:
-
2V/3V/6V/12V/24V/36V/110V/220V/250V
-
Electrical Life:
-
100000cycles
-
Function:
-
OFF-(ON)
-
Terminal type:
-
2 Pin Terminals/ Screw Feet
-
Material:
-
PA66+Copper/Stainless steel
-
Certification:
-
CE CQC TUL
Product Information

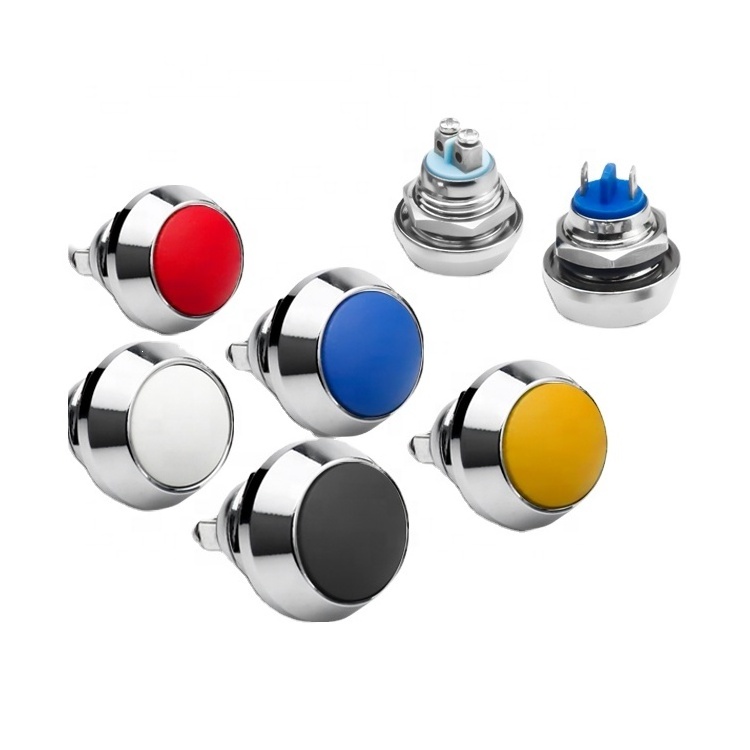

waterproof momentary plastic power button switch 12mm ip65 push button switch
| The Product Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤11mm or customised the others |
| Dielectric Strength | 1000VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -30℃~+80℃ | Outshell/Press Key | Stainless Steel/ copper plated/ aluminum oxide |
| Electrical Life |
100000 cycles |
Base material |
PA66 |
| Mechanical Life |
Latching-200,000 cycles Momentary-800,000 cycles |
Transmissive cover |
PC |
| Protection Level | IK09 | Pins Contact | Copper palted sliver |
| Waterproof Level | IP65 | Spring | Steel wire |
