Quick Details
-
Model Number:
-
PPM-T6103A
-
Supply Voltage:
-
5Vdc or 9~30Vdc
-
Ambient Temperature:
-
25℃
-
Compensated Temperature:
-
-20 ~ 85℃
-
Operating Temperature:
-
-40 ~ 125℃
-
Storage temperature:
-
-40 ~ 125℃
-
Vibration:
-
±20g
-
Shock (11mS):
-
100g
-
Long term stability (1 year):
-
±0.25%Span
-
Pressure Overload:
-
3Rated
-
Burst Pressure:
-
5Rated
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TECNK
-
Model Number:
-
PPM-T6103A
-
Supply Voltage:
-
5Vdc or 9~30Vdc
-
Ambient Temperature:
-
25℃
-
Compensated Temperature:
-
-20 ~ 85℃
-
Operating Temperature:
-
-40 ~ 125℃
-
Storage temperature:
-
-40 ~ 125℃
-
Vibration:
-
±20g
-
Shock (11mS):
-
100g
-
Long term stability (1 year):
-
±0.25%Span
-
Pressure Overload:
-
3Rated
-
Burst Pressure:
-
5Rated
Products Description

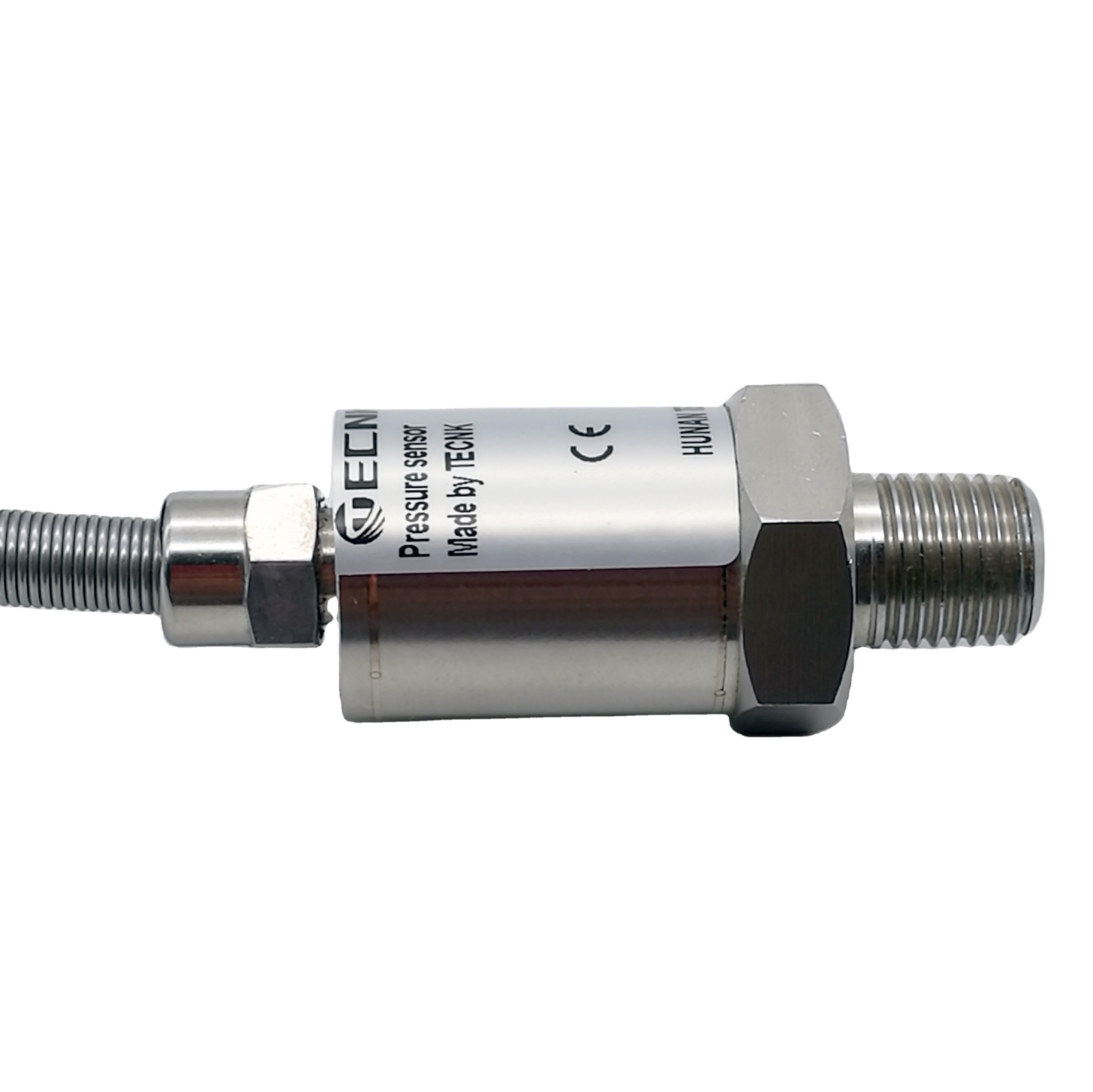

PPM-T6103A pressure transmitter, with the composition micro fused pressure sensor and high precision digital integrated circuit,can accurate measurements and for a long period of time -196degrees liquid and quickly provide output signal. This type of pressure transmitter through a dedicated circuit module, filtering and noise suppression, and provides temperature compensation,make the product has unique hydrogen and hydrogen brittleness can resistance, high temperature resistance, resistance to overload,anti-jamming, long life, high cost performance, etc. Typical application: LNG and CNG pressure measuring, Gas control system,Liquefied petroleum gas fuel vehicle and liquefied gas carrier pressure monitoring and measurement.
PPM-T6103A pressure transmitter pressure seat adopts 17-4PH stainless steel single integral structure processing, The integration of the stainless steel diaphragm to overload performance is much higher than diffusion silicon, ceramic, etc, and pressure interface no welds, no oil or other organic matter, sealed performance is good. Sensor sensitive device adopts glass melting
technology solid sintering on pressure seat, the sensor of high temperature resistant, shock resistant performance significantly increase, Ensure the sensor in harsh industrial environments, long-term stability and reliability, durable. In the standard purification production process, the parameters are strictly controlled, the entire product components, semi-finished and finished products after the strict test and screening of ageing, stable and reliable performance.
