Quick Details
-
Weight:
-
800 KG
-
Marketing Type:
-
New Product 2022, New Product 2022
-
Name:
-
stone crusher
-
Raw material:
-
stone
-
Color:
-
Customer's Request
-
Advantage:
-
High Efficiency
-
Keywords:
-
Broken stone
-
Application:
-
Buliding Construction
-
Worker:
-
1-2 People
-
Feature:
-
High Efficiency Low Cost
Quick Details
-
Capacity(t/h):
-
2-3t/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
BLK
-
Weight:
-
800 KG
-
Marketing Type:
-
New Product 2022, New Product 2022
-
Name:
-
stone crusher
-
Raw material:
-
stone
-
Color:
-
Customer's Request
-
Advantage:
-
High Efficiency
-
Keywords:
-
Broken stone
-
Application:
-
Buliding Construction
-
Worker:
-
1-2 People
-
Feature:
-
High Efficiency Low Cost
Products Description
Jaw crusher is mainly used for medium particle size crushing of various ores and bulk materials, and is widely used in mining, smelting, building materials, highways, railways, water conservancy and chemical industries. The compressive strength of the crushed material is 320MPa.

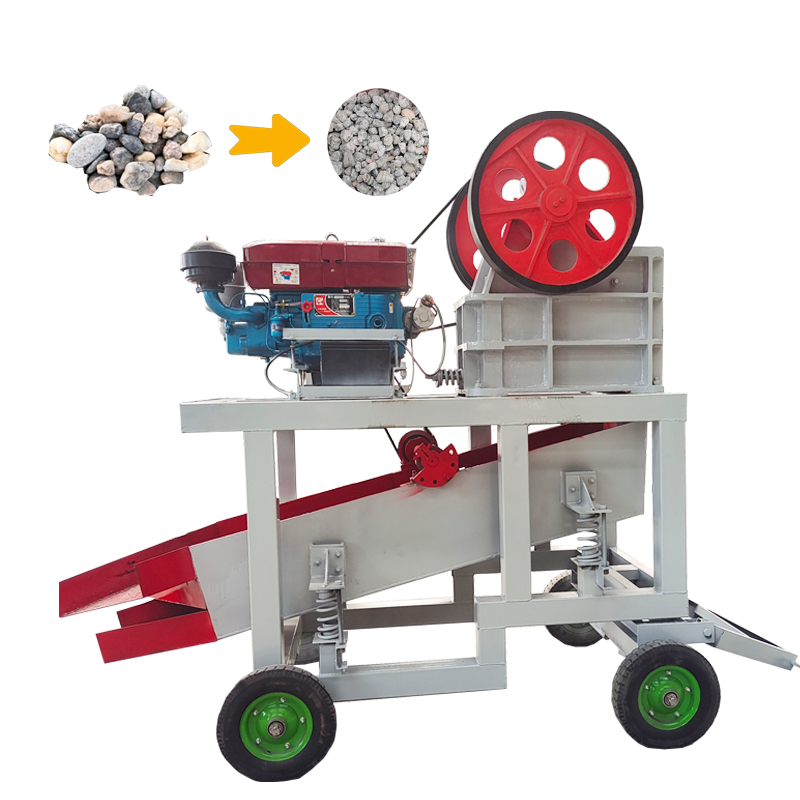

The machine can add wheels to make it movable
Product Parameters
|
Name
|
Power（double）
|
Discharge size
|
The weight
|
Capacity
|
|
BLK 150*250
|
5.5KW
|
15~40mm
|
0.8T
|
2-3t/h
|
|
BLK 200*300
|
7.5KW
|
15~50mm
|
1.2T
|
4-7t/h
|
|
BLK 200*350
|
11KW
|
18~60mm
|
1.4T
|
8-10t/h
|
|
BLK 250*400
|
15KW
|
20~60mm
|
1.7T
|
20t/h
|
|
BLK 300*500
|
22KW
|
30~80mm
|
3.2T
|
40t/h
|
|
BLK 400*600
|
30KW
|
40~100mm
|
5.6T
|
60t/h
|
|
BLK 500*750
|
55KW
|
50~100mm
|
10T
|
120t/h
|
|
BLK 600*900
|
75KW
|
65~160mm
|
16T
|
180t/h
|
|
BLK 750*1060
|
90KW
|
80~240mm
|
29T
|
240 t/h
|
How it works：
The motor drives the belt and pulley, through the eccentric shaft to make the moving jaw move up and down, when the moving jaw rises, the angle between the elbow plate and the moving jaw becomes larger, thereby pushing the moving jaw plate to approach the fixed jaw plate, and at the same time the material is crushed or split to achieve the purpose of crushing; When the movable jaw goes down, the angle between the elbow plate and the movable jaw becomes smaller, and the movable jaw plate leaves the fixed jaw plate under the action of tie rod and spring, and the crushed material is discharged from the lower mouth of the crushing cavity
Highlight the advantages:
1quipment saves energy
The cavity type of jaw rock breaker is a deep cavity hyperboloid form, and the structure of negative support, zero suspension, small eccentricity and high swing frequency matches the deep cavity type, so that it can obtain excellent performance of high processing capacity, low wear and low energy consumption, and the energy saving of the single machine is 15%~30%, and the energy saving of the system is more than doubled.
2.The crushing ratio is large
The crushing ratio of jaw stone breaker is extremely high, the so-called size eats, effective power design makes the material get crushed many times, using advanced crushing technology, using advanced digital processing equipment, so that the internal structure is precise, improve the crushing performance, and the product particle size is uniform.
3.High productivity
Reasonable crushing cavity design, good motion parameters, determined meshing angle and stroke characteristic values, provide larger crushing stroke, higher productivity and greater load capacity. Yield can be increased by 30%-50%.
4.Long service life and high service life
The manufacturing process adopted, the use of advanced digital components, the selection of end production materials, to ensure the precision of the machine parts, greatly enhance its pressure resistance, wear resistance, reduce maintenance costs, and greatly extend the service life.
5.Advanced manufacturing
The high-quality production materials at the end of the parts enhance the compression resistance and wear resistance of the parts, among which the moving jaw is composed of steel castings, and the eccentric shaft is processed by forging billets, etc., so that the reliability of the parts is increased, the efficiency is high and durable.
6.Wide range of applications
The discharge port has a large adjustment range, reasonable structure and small footprint, which can meet the various processing needs of users and is widely used in crushing production in many industries.
Detailed display of the machine
Raw materials and finished products are displayed
Scenario application
Our service
1.24 hours all day service, tel:008613598076521/whats@pp:008613598076521/wech@t: 18639575789/Email:13598076521@163.com
2.Can be customized according to customer needs.
3. Check again before we send the goods.
4. Send the goods on time.
5.One year warranty from the date of receiving.
6. We can test the machine before we send it if the client need.
7. The more you need, the cheaper the unit price is.
8. Help the client with the shipment.
Package&Delivery
Packing and Delivery：
(1)simple packaging.Other in wooden boxes;
(2)Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment ;
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded.
(2)Delivery the machine by 20-foot container/40-foot container;
(3)Delivery the machine within 7 days after receiving balance payment ;
(4)Once the product is sold, if it is not a product quality problem, it cannot be returned or refunded.
FAQ
Q1: What's the warranty for this machine?
A1: 3 years does not include wearing parts. Spare parts are recommended for at least one year in case of emergency
Q2: What material is this machine made of?
A2: Stainless steel and carbon steel.
Q3: When can I get the price?
A3: Within 24 hours. If it's urgent, please call us directly.
Q4: Can you come down a lot?
A4: Our minimum order quantity is a very reasonable price for one set, but if the order is large, we can apply to our manager for a proper discount.
A1: 3 years does not include wearing parts. Spare parts are recommended for at least one year in case of emergency
Q2: What material is this machine made of?
A2: Stainless steel and carbon steel.
Q3: When can I get the price?
A3: Within 24 hours. If it's urgent, please call us directly.
Q4: Can you come down a lot?
A4: Our minimum order quantity is a very reasonable price for one set, but if the order is large, we can apply to our manager for a proper discount.
