Quick Details
-
Model Number:
-
C9000-B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
maixinminwei
-
Output:
-
RS485 RS422
-
Operating Temperature:
-
-40~+85℃
-
Frequency:
-
5~100HZ optional
-
Output Configuration:
-
RS485/RS422
-
Voltage Rating:
-
DC 5V (9-36V can be customized)
-
Humidity Range:
-
IP67
-
Size / Dimension:
-
L55*W37*H24
-
Measuring Range:
-
0~360°
-
Resolution:
-
0.1
Quick Details
-
Series:
-
ELECTRONIC COMPASS
-
Mounting Type:
-
None
-
Description:
-
Navigation and positioning
-
Model Number:
-
C9000-B
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
maixinminwei
-
Output:
-
RS485 RS422
-
Operating Temperature:
-
-40~+85℃
-
Frequency:
-
5~100HZ optional
-
Output Configuration:
-
RS485/RS422
-
Voltage Rating:
-
DC 5V (9-36V can be customized)
-
Humidity Range:
-
IP67
-
Size / Dimension:
-
L55*W37*H24
-
Measuring Range:
-
0~360°
-
Resolution:
-
0.1
Specification
|
Parameter
|
|
C9000-B
|
|
Compass heading parameters
|
Heading accuracy
|
0.3~0.5° (RMS, pitch<85°)
|
|
|
Resolution
|
0.1°
|
|
|
Repeatability
|
0.05°
|
|
Compass inclination parameters
|
Pitch accuracy
|
0.1°
|
|
|
Roll accuracy
|
0.01° (pitch<15°)
0.02° (pitch<50°) 0.05° (pitch<80°) |
|
|
Inclination angle resolution
|
0.005°
|
|
|
Inclination range
|
Pitch ±90°; Roll 360°
|
|
Calibration
|
Hard iron calibration
|
Yes
|
|
|
Soft iron calibration
|
Yes
|
|
|
Tilt calibration
|
Yes
|
|
Physical properties
|
Size
|
L96*W19*H8 (mm)
|
|
|
Weight
|
10g
|
|
|
RS-232/RS485 interface connector
|
5-pin aviation connector
|
|
Interface features
|
Startup delay
|
<50ms
|
|
|
Maximum sampling rate
|
50 times/second
|
|
|
RS-232 communication rate
|
2400~19200 baud rate
|
|
|
RS-485 communication
|
optional
|
|
|
TTL communication
|
optional
|
|
|
Output format
|
hexadecimal
|
|
Power supply
|
Support voltage
|
DC+5V (9~36V)
|
|
|
Current (max)
|
40mA
|
|
|
Working mode
|
30mA
|
|
Environment
|
Storage range
|
-40℃--+125℃
|
|
|
Working temperature
|
-40℃--+85℃
|
|
|
Vibration resistance
|
3000g
|
2. Electrical indicators
Glossary:
Resolution: It refers to the minimum change value of the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy: Absolute accuracy refers to the comprehensive error of absolute linearity, repeatability, hysteresis, zero point
deviation, and horizontal axis error of the sensor under normal temperature conditions.
Long-term stability: Long-term stability refers to the deviation between the maximum value and the minimum value of the sensor after one year of long-term work under normal temperature conditions.
Response time: Response time is the time required for the sensor output to reach the standard value when the sensor angle changes once.
Resolution: It refers to the minimum change value of the measured value that the sensor can detect and distinguish within the measurement range.
Accuracy: Absolute accuracy refers to the comprehensive error of absolute linearity, repeatability, hysteresis, zero point
deviation, and horizontal axis error of the sensor under normal temperature conditions.
Long-term stability: Long-term stability refers to the deviation between the maximum value and the minimum value of the sensor after one year of long-term work under normal temperature conditions.
Response time: Response time is the time required for the sensor output to reach the standard value when the sensor angle changes once.
|
Connector
|
Lead wire (10m) or waterproof aviation socket (customized)
|
|
Protection level
|
IP66
|
|
Material
|

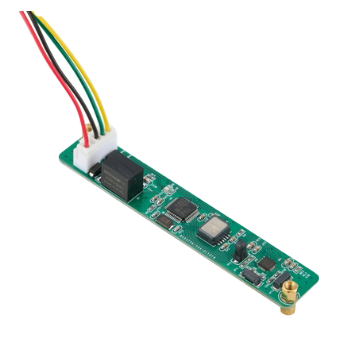

PCB board
|
|
Installation
|
2 M3 screws
|
