Quick Details
-
Heating Power (kW):
-
40 kW
-
Production Speed(times/h):
-
600
-
Power Supply:
-
AC 380V/50Hz, Three phrases, Four wires
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LITAI
-
Voltage:
-
According to requirements
-
Dimension(L*W*H):
-
6500*1300*2500mm
-
Weight (T):
-
2.5 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keyword:
-
pvc pet plastic box making machine
-
Controlled:
-
PLC & Touch Screen
-
Sheet Feeding:
-
Servo Motor
-
Forming Area:
-
720mm x 1220mm
-
Application:
-
Vacuum Forming Machine
-
PLC:
-
Touch screen control
-
Usage:
-
Production of plastic products
-
Need to install several molds:
-
1 pairs
-
Machine Name:
-

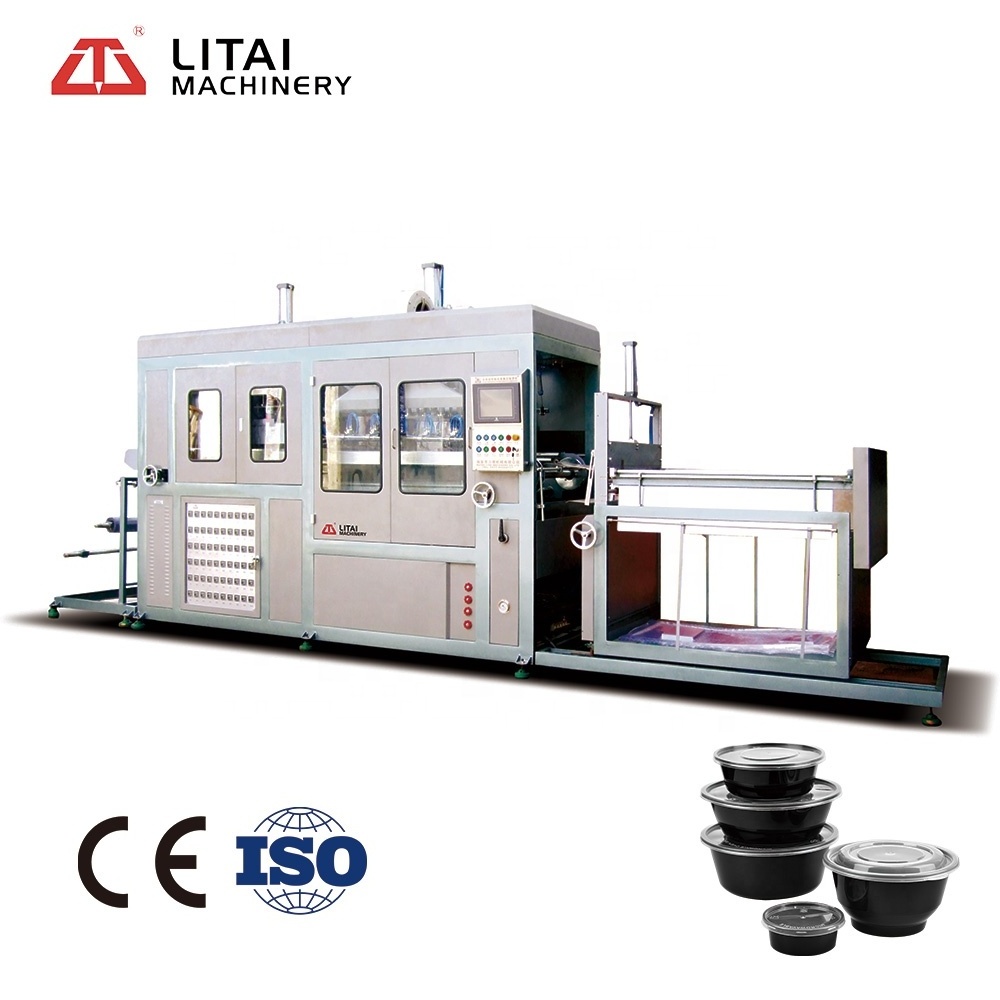

Vacuum Forming Machine
Quick Details
-
Max.Forming Height(mm):
-
100 mm
-
Forming Width (mm):
-
720 mm
-
Forming Length (mm):
-
1220 mm
-
Heating Power (kW):
-
40 kW
-
Production Speed(times/h):
-
600
-
Power Supply:
-
AC 380V/50Hz, Three phrases, Four wires
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LITAI
-
Voltage:
-
According to requirements
-
Dimension(L*W*H):
-
6500*1300*2500mm
-
Weight (T):
-
2.5 T
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Keyword:
-
pvc pet plastic box making machine
-
Controlled:
-
PLC & Touch Screen
-
Sheet Feeding:
-
Servo Motor
-
Forming Area:
-
720mm x 1220mm
-
Application:
-
Vacuum Forming Machine
-
PLC:
-
Touch screen control
-
Usage:
-
Production of plastic products
-
Need to install several molds:
-
1 pairs
-
Machine Name:
-
Vacuum Forming Machine
Product Paramenters
|
Model
|
TX-720C
|
|
Forming Size
|
W: 420-720mm /L: 760-1220mm
|
|
Cooling System
|
Blower*2 / Sprayer*10
|
|
Vacuum Pump
|
100m³/hr. (4hp)
|
|
Rated Power
|
40Kw
|
|
Working Speed
|
200-600 times/hour
|
|
Power Supply
|
AC 380V/50Hz, Three phrases, Four wires
|
|
Dimension
|
L6500xW1300xH2500mm
|
|
Weight
|
About 2.5T
|
|
MAIN ELECTRICAL COMPONENTS
|
|
|
|
Vacuum Pump
|
Rietschle, Germany
|
|
|
PLC
|
Delta, Taiwan
|
|
|
Touch Screen
|
WeinView, Taiwan
|
|
|
Cylinder
|
Zhicheng, Joint Venture / Air TAC, Taiwan
|
|
|
Middle Relay
|
IDEC, Japan
|
|
|
Travel Switch
|
OMRON, Japan
|
|
|
Proximity Switch
|
OMRON, Japan
|
|
|
Servo Motor
|
Yaskawa, Japan
|
|
|
Option Switch / AC Contactor / Circuit Breaker
|
Schneider, France
|
|
|
Filter
|
CKD, Japan
|
|
|
Solenoid Valve
|
SMC, Japan / Jinqi, Taiwan
|
|
Products Description
APPLICATION
This machine finished products are widely used in sealing and packing toys, hardware, cosmetics, electronic products (such as batteries, electronic components and so on), foodstuff (such as fruit pallets, snack boxes, biscuit boxes, food dishes, trays and so on), medicines, etc. It is suitable for PVC, PE, PET, PP, PS and HIPS plastic sheet.
Sheet feeding controlled by servo motor.
Touch screen / PLC (DELTA), more reliable.
Vacuum Pump made in Germany - Rietschle
Gas circuit adopts copper tube, aging proof, and durable.
Special alloy orbit, small friction coefficient, stretch steadier and faster.
Automatic feeding frame, driven by motor save time and effort.
