RF series can be connected to five types of LED strip:
DIM/CCT/RGB/RGBW/RGB+CCT
- Product Details
- {{item.text}}
Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yourlite
-
Connection Mode:
-
Remote, Common Anode
-
Item:
-
FRM1
-
Adjustment range:
-
1-100
-
Interface Type:
-
DC
-
Output:
-
1CH*6A(each circuit)
-
Output Power:
-
5V:<30W; 12V:<72W; 24V:<144W
-
Color:
-
Single Color
-
IP:
-
IP20
-
Application:
-
Single Color Strips(5050 5630 3528)
-
Terminal:
-
DC
Quick Details
-
Warranty(Year):
-
2-Year
-
Type:
-
Remote Control
-
Max. Load Power:
-
144
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Yourlite
-
Connection Mode:
-
Remote, Common Anode
-
Item:
-
FRM1
-
Adjustment range:
-
1-100
-
Interface Type:
-
DC
-
Output:
-
1CH*6A(each circuit)
-
Output Power:
-
5V:<30W; 12V:<72W; 24V:<144W
-
Color:
-
Single Color
-
IP:
-
IP20
-
Application:
-
Single Color Strips(5050 5630 3528)
-
Terminal:
-
DC
|

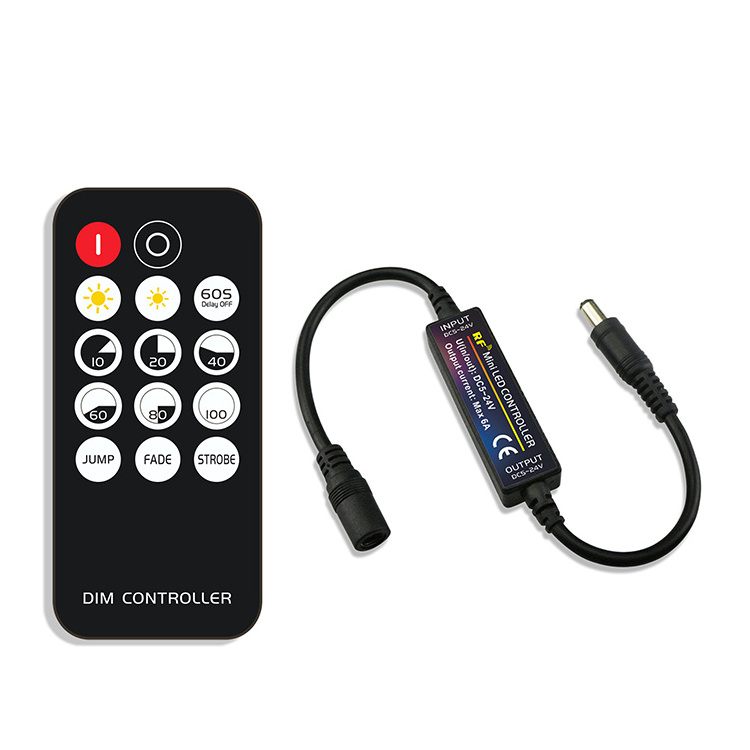

Factory Direct Single Color LED RF Remote Controller
Lamp LED Lighting Remote Controller |
Wireless RF Mini Controller
Products Description
Wireless RF DIM LED Controller
Product model:
RFM1
Power supply voltage:
DC5-24V
Working Tmep.:
-20-60℃
Connection method:
Common Anode
Controller size:
L55.7 × W16.6 × H10.7mm
Net weight:
30G
Gross weight:
32G
Static power consumption:
<0.5W
Output current:
<2A/CH Maximum: 6A (bold wire, high quality PCB, chip, MOS tube, full load wiring)
Output power:
Maximum: 5V: <30W, 12V: <72W, 24V: <144W
Details
Dimensions
Stylish and beautiful design, small and portable
Interface Description
Power input: 5.5*2.1mm DC interface input (customized thick wire, can withstand 6A, ordinary connector can only withstand 3A)
Interface Description
Load output:
5.5*2.1mm DC interface output
(with custom thickened copper wire for full load access)
Wiring Instructions
If the controller output line sequence you are using is different from the reference line order above, please select the line order according to the actual corresponding LED strip to ensure that the arrow on the controller output connector is inserted with the arrow of the LED input connector .
