1 - Common single row front shock absorber --- Our standard configuration
2 - Single row bigger type front shock absorber --- Opitional configuration, extra money
3 - Double row front shock absorber --- Opitional configuration, extra money
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Dimension(Long * Breadth * High):
-
2800*1000*1350MM
-
Machine Weight:
-
540 kg
-
Product name:
-
electric mini dumper
-
Battery:
-
60V
-
Lifting Motor Power:
-
1000W
-
Driving Motor Power:
-
3000W
-
Max speed(km/h):
-
15-25km/h
-
Box Sizes:
-
1450*900*500mm
-
Charging time:
-
First is 12h, normal 8h
-
Working Time:
-
10-12 h
-
Front Tire:
-
4.00-12
-
Rear Tire:
-
5.00-14
Quick Details
-
Engine Brand:
-
LIANKE
-
Power:
-
3KW
-
Brand Name:
-
LIANKE
-
Place of Origin:
-
Henan, China
-
Dimension(Long * Breadth * High):
-
2800*1000*1350MM
-
Machine Weight:
-
540 kg
-
Product name:
-
electric mini dumper
-
Battery:
-
60V
-
Lifting Motor Power:
-
1000W
-
Driving Motor Power:
-
3000W
-
Max speed(km/h):
-
15-25km/h
-
Box Sizes:
-
1450*900*500mm
-
Charging time:
-
First is 12h, normal 8h
-
Working Time:
-
10-12 h
-
Front Tire:
-
4.00-12
-
Rear Tire:
-
5.00-14
Product Description

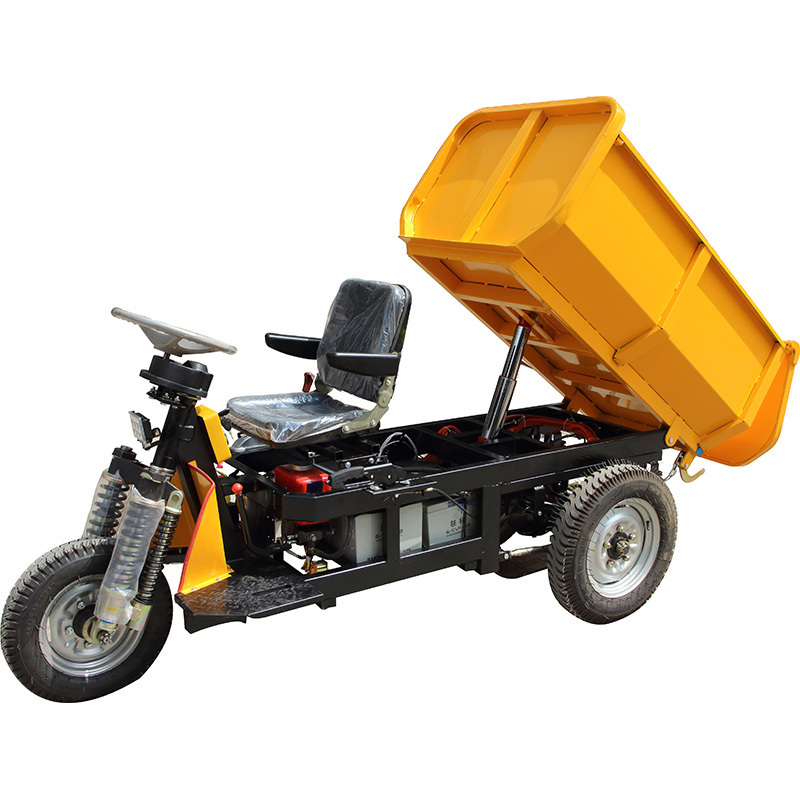

Electric mini dumper
is one of our best selling products.
Our electric mini dumper belongs to cargo vehicles, mainly for loading rocks, minerals, soil, sands, cement, and other goods. It can be used in a variety of terrain, mainly is used in mining.
It is popular in many countries and has won good reputation. Now we have exported to Peru, Chile, Bolivia, Ecuador, Africa, Europe, United states, and North American. It use battery as power source, used in mining, farm, brickyard, sanitation and cleaning.
The marked price ($1494-$1578) is a range price for standard configuration of dumper.
The configuration of this page's dumper is different, and the price is also different.
The price of the order needs to be determined according to your required configuration.
In this page, I will introduce you one high configuration type LK135.
( The following items extra configuration need extra money, compared with standrad configuration)
1. Double row front shock absorber (Shi Feng brand,
With anti-counterfeiting logo
);
2. Luxury better quality seat.
3.
The inner height of the cargo box is increased by 10 cm
4. Direct coupling type rear axle and 3000W brushless motor (Yuanhao brand);
5.
Maintence free dry batteries
60V80AH (single piece is 12V80AH)
;
6. Hydraulic oil brake system
Video of our dumper---- https://youtu.be/tybLB_BgZIQ
Video of our dumper---- https://youtu.be/tybLB_BgZIQ
|
Customized Model LK135 electric mini dumper Specification
|
|
|
|
|||
|
Loading capacity
|
1000KGS to 1500KGS
|
Net weight
|
540KG
|
|||
|
Front tire
|
4.00-12 (Huanyan Brand)
|
Rear tire
|
5.00-14 (Huanyan Brand)
|
|||
|
Overall size
|
2800*1000*1350MM
|
Cargo box size
|
1450*900*500MM
|
|||
|
Battery
|
60V 80AH Maintence free Dry batteries (5pcs of 12V80AH) ------ Customized Configuration
|
|
|
|||
|
Rear Axle type
|
Direct coupling type rear axle ------ Customized Configuration
|
|
|
|||
|
Dia of half shaft
|
The diameter of half shaft's external measurement size is 30mm
|
|
|
|||
|
Driving motor power
|
60V3000W Brushless motor and controller ------ Customized Configuration
|
|
|
|||
|
Lifting motor power
|
60V1000W brush type motor
|
|
|
|||
|
Front suspension
|
Double row type front shock absorber ------ Customized Configuration
|
|
|
|||
|
Steel spring plate
|
The latest version is with 12pcs plates' stell spring plate, which is 12kgs weight
|
|
|
|||
|
Braking system
|
Hydraulic/oil brake system ------ Customized Configuration
|
|
|
|||
|
Others
|
Including front and rear 6 spots LED lights, horn and reversing "dididi" voice
|
|
|
|||
|
Logo
|
We can customize VIN plate information and logo for container order
|
|
|
|||
Detailed Images
In the following, please check our
customized type
LK135
electric mini dumper
specification and details.
The following shows our LK135 customized electric mini dumper every parts details
1. Front shock absorber
This customized mini dumper use double-layer front shock absorber which is more durable than our standard configuration's common single row front shock absorber and single row bigger type front shock absorber. Our double-row front shock absorbers are genuine Shifeng products with anti-counterfeiting labels on both sides. The quality is much better than the double-row shock absorbers produced and used by other manufacturers.
For LK135 type dumper, we can install 3 different types front shock absorber according to your need.Please check
the following pictures to be corresponding.
2. Luxury better quality seat
1). The left picture is luxury better quality seat, which need extra money.
More details, you can check this video link:
https://youtu.be/RHAxgSuWyCw
2). The right picture is our standard configuration's seat
If the seat belt is required, we can also add, just need extra money
The seat cushion is a square pattern seat cover and thickened and comfortable material, which is more comfortable when driving.
3. Inner height of cargo box's
From the comparison of the above pictures, it can be seen that there is a significant difference
between the inner height of the cargo box is 40cm and the inner height of the
cargo
box is 50cm
The standard configuration of our dumper' cargo box is that the inner height is 40cm.
Customers can customize the inner height of the bucket so that the loading capacity can be larger, just need extra money. Most customers choose to add 10cm higher than standard configuration's inner height.
4. Direct coupling type rear axle and 3000W brushless motor
The product on this page use direct coupling type rear axle and brushless type 3KW motor.
(Yuanhao Brand).
The direct coupling (in-line) rear axle has many advantages, such as: high speed, strong climbing ability, and is suitable for driving on bumpy roads,
but direct coupling (in-line) rear axle is also the most expensive one of all our rear axles.
We have totally 3 different type rear axles.
1). Gearbox double chain type rear axle. ( Our standard configuration )
2). Transmission shaft type rear axle.
3). Direct coupling (in-line) rear axle ( Customized configuration )
1). Gearbox double chain type rear axle. ( Our standard configuration )
2). Transmission shaft type rear axle.
3). Direct coupling (in-line) rear axle ( Customized configuration )
If you do not know how to choose, please contact me and send us your using environment,
we can recommend for you.
we can recommend for you.
It is our standard configuration's rear axle. You can click on the picture to jump to the relevant product page
More information of rear axle, please contact me.
You can click on the picture to jump to the relevant product page
5. Oil brake system
Oil brake advantages: more force, more energy. When going downhill, the brakes are faster and safer.
LK135 standard configuration braking system is
Mechanical brake
, changing to oil brake system need extra money.
6.
Lead-acid maintenance-free dry battery
60V80AH
The advantage of the dry battery is that no need maintenance,
and the charge and discharge are stable and will not spontaneously ignite
The quality is guaranteed. The dry batteries we use have not had any problems with customer feedback.
totally 5pcs, total 60V
Total is 60V80AH
7. Tire (Huanyan brand, China famous brand).
Lead-acid water battery Single piece is 12V80AH
Load 300kg, AT 420Kpa, 6PR NYLON RIM 3.00D
https://youtu.be/XjjwJW8D7bg
8. The other parts
Load 895kg, AT 530Kpa, 8PR NYLON RIM 3.00D
Add leather protection at the charging port, waterproof
Packing&Shipping
LCL Delivery
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
For order one unit or order less container load we adopt standard wooden box packing, to convenient package we only remove the wheels.Other parts do not do any demolition, so when arrive you just need to assemble the wheels then can driving directly.
FCL Delivery
For the order quantities more than 8 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.
For the order quantities more than 8 units, normally we advise to adopt full container load, full container shipment without any demolition, it‘s more convenient transportation and cost savings.
One 20GP can hold 8 to 12 sets. One 40HC can hold 16 to 24 sets.
