Quick Details
-
Model Number:
-
TB178
-
Max. Current:
-
30A
-
Color:
-
Light Green
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
240VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Cleanlysis
-
Model Number:
-
TB178
-
Max. Current:
-
30A
-
Color:
-
Light Green
-
Certification:
-
CE

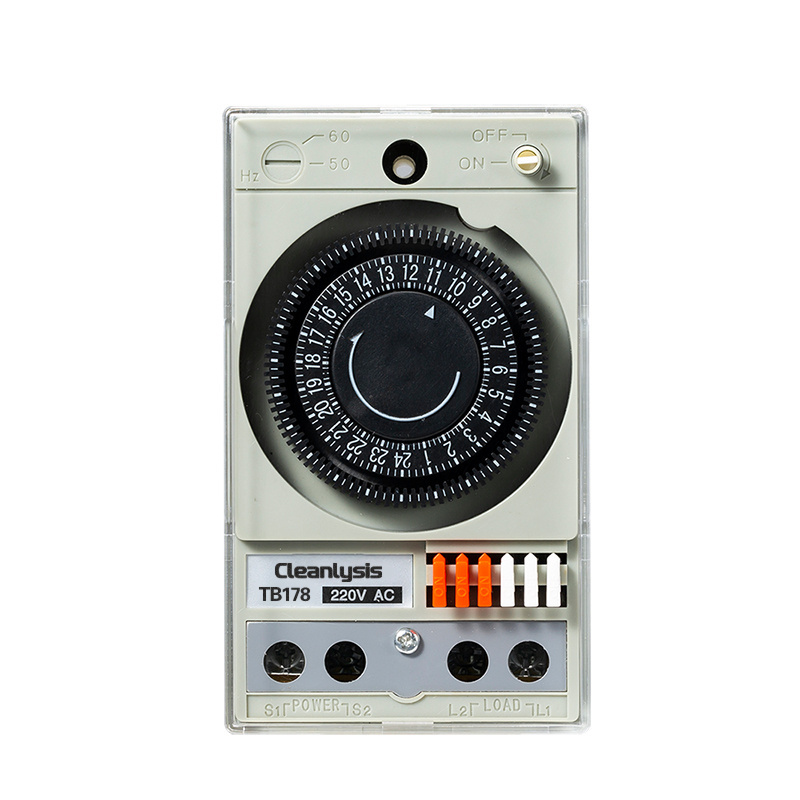

| Type | TB178 | |
| Working Voltage | 100,110,115,120,127VAC | 220,230,240VAC |
| Resistance Load Switch Capacity | 30A | 15A |
| Power Consumption | <1W | <2W |
| Voltage Range | 85~110% | |
| Power Source Frequency | 50/60HZ | |
| Control Electrical Life | 100000 Times | |
| Mechanical Life | 10000000 Times | |
| Action Number | Standard:6, Maximum:48 | |
| Timing Control Range | 24 hours | |
| Average Error | <±2s/24h,20℃ | |
| Minimum Setting Unit | 15 minutes/Unit | |
| Minimum Setting Interval | 30 minutes | |
| Temperature | -20℃~ +60℃ | |
| Relative Humidity | <90% | |
| Weight | 200g | |
| Dimensions | 123*72*50 mm | |
| Installation | Panel & Screw Fixation | |
| Shell Material | PC Material, Proof Flame | |
Q: How to choose the right model of the timers?
A: 1. Three basic types of timers: Digital, mechanical, astronomical timers.
It depends on your preference. Mechanical timers can be set more intuitively. While digital timers have smaller time intervals.
If the timer should be adjusted along with the season changes, an astronomical timer is the only option.
2. Dimensions.
Check up the space for installation. And compare the space with the dimensions of the timers. Make sure the timer can be fit in.
3. Load capacity: Max. voltage, max. current.
For digital types of timers, KG316 has larger load capacity than THC15A and CN101A. If there is enough space for installation, KG316 will be a better choice for large load capacity.
Times can be customized with higher load capacity. Contact us if you have a special requirement.
