Quick Details
-
Network:
-
NO/NC(optional)
-
Dimension:
-
24*14*6(mm)
-
MAX voltage:
-
≤100VDC
-
Material:
-
fireproof ABS housing
-
Gap:
-
20±5mm
-
Application:
-
wooden door or window
-
MAX rating:
-
≤10W
-
MAX current:
-
≤500mA
-
Colour:
-
brown/white
-
Certificate:
-
CE Approved
-
Warranty:
-
2 Years
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM or SMQT
-
Model Number:
-
EB-135
-
Network:
-
NO/NC(optional)
-
Dimension:
-
24*14*6(mm)
-
MAX voltage:
-
≤100VDC
-
Material:
-
fireproof ABS housing
-
Gap:
-
20±5mm
-
Application:
-
wooden door or window
-
MAX rating:
-
≤10W
-
MAX current:
-
≤500mA
-
Colour:
-
brown/white
-
Certificate:
-
CE Approved
-
Warranty:
-
2 Years

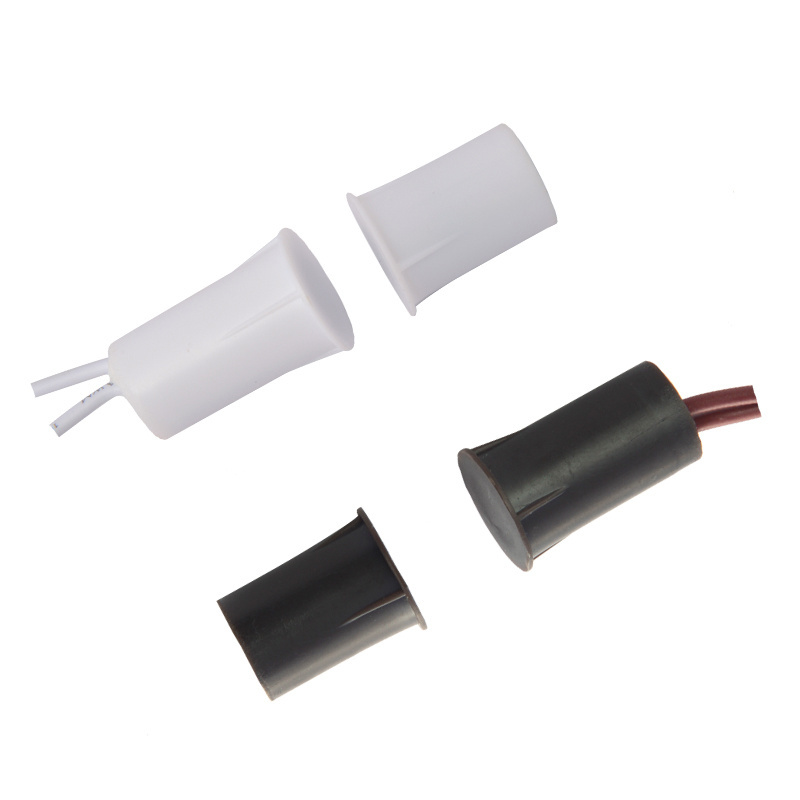

Round magnetic door contact switch for home alarm magnetic sensor EB-135
EB-135's main parameter
| Parameter | |
| Product name | Concealed magnetic contact sensor |
| Model | EB-135 |
| Dimension |
Φ10 ×18.5(mm) |
| Code mode |
NO/NC(optional) |
| Gap | 20±5(mm) |
| Max voltage | ≤100V DC |
| Max current | ≤500mA |
| Max rating | ≤10W |
| Color | Brown/White(optional) |
| Suit for | wooden door or window |
| Material | Fireproof ABS housing |
| Working temperature | -10 ℃~50 ℃ |
| Net weight | 8g |
What features EB-135 have?
How about other choice?
Round magnetic door contact switch for home alarm magnetic sensor EB-135
Round magnetic door contact switch for home alarm magnetic sensor EB-135
Round magnetic door contact switch for home alarm magnetic sensor EB-135
