- Product Details
- {{item.text}}
Quick Details
-
Color:
-
Full color
-
Panel Size:
-
1000*240mm, 1000*240mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
p16
-
Pixel Pitch:
-
16mm*16mm, 16mm*16mm
-
Brightness:
-
≥3500cd/㎡, ≥3500cd/㎡
-
pixel density:
-
3844, 3844
-
IP Rating:
-
IP30, IP30
-
HS Code:
-
8528591090
-
Resolution:
-
62*15
-
View Angle（H/V）:
-
140/140°, 140/140°
-
Product name:
-
p16 crystal film display
-
Certificate:
-
ce&rosh
-
Warranty:
-
2 Years
-
Life span:
-
>100,000 hours
-
Weight:
-
≤ 7KG/m2
-
LED chip:
-
SMD2121(light drive in one)
-
Led Control system:
-
NOVA
-
Viewing angle:
-
140/140 Degree
-
Refresh rate:
-
≥3840Hz
-
Grey scale:
-
16bit
Quick Details
-
Application:
-
Indoor
-
Type:
-
LED
-
Brand Name:
-
SQ
-
Color:
-
Full color
-
Panel Size:
-
1000*240mm, 1000*240mm
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
p16
-
Pixel Pitch:
-
16mm*16mm, 16mm*16mm
-
Brightness:
-
≥3500cd/㎡, ≥3500cd/㎡
-
pixel density:
-
3844, 3844
-
IP Rating:
-
IP30, IP30
-
HS Code:
-
8528591090
-
Resolution:
-
62*15
-
View Angle（H/V）:
-
140/140°, 140/140°
-
Product name:
-
p16 crystal film display
-
Certificate:
-
ce&rosh
-
Warranty:
-
2 Years
-
Life span:
-
>100,000 hours
-
Weight:
-
≤ 7KG/m2
-
LED chip:
-
SMD2121(light drive in one)
-
Led Control system:
-
NOVA
-
Viewing angle:
-
140/140 Degree
-
Refresh rate:
-
≥3840Hz
-
Grey scale:
-
16bit
Product Description
Specification
|
Product specification
|
P16
|
|
Pixel pitch
|
16mm*16mm（x*y）
|
|
Pixel
|
3844points/m2
|
|
LED specification
|
SMD2121 (light drive in one)
|
|
Pixel composition
|
1R1G1B
|
|
Module Size
|
1000mm*240mm
|
|
Module Resolution
|
62*15
|
|
Pixel resolution
|
62*62/㎡
|
|
Permeability
|
≥90%
|
|
Box wiring mode
|
Internal wiring (clean back)
|
|
Weight
|
≤ 7KG/m2
|
|
White balance brightness
|
≥3500cd/㎡
|
|
Peak power consumption
|
600 W/㎡
|
|
Average power consumption
|
About 200 W/㎡ (depending on the video source)
|
|
Refresh frequency
|
≥3840hz
|
|
Grayscale level
|
16Bit
|
|
Brightness control level
|
Grade 0-255
|
|
Color temperature
|
3200K-8500K (adjustable)
|
|
Frame change frequency
|
≥60Hz
|
|
Viewing angle
|
H-H140 degrees V-V140 degrees
|
|
Input signal
|
DVI VGA, composite video
|
|
Control screen mode
|
Or synchronous box (computer control screen) or asynchronous box (WiFi connection mobile phone APP control screen, USB flash drive
control screen) |
|
Protection grade
|
IP30
|
|
Power supply requirements
|
AC 220V ± 10%, 50-60Hz, (optional wide voltage 110V and 9-36V)
|
|
working temperature
|
-20~50 ℃
|
|
Theoretical service life
|
100000 hours
|

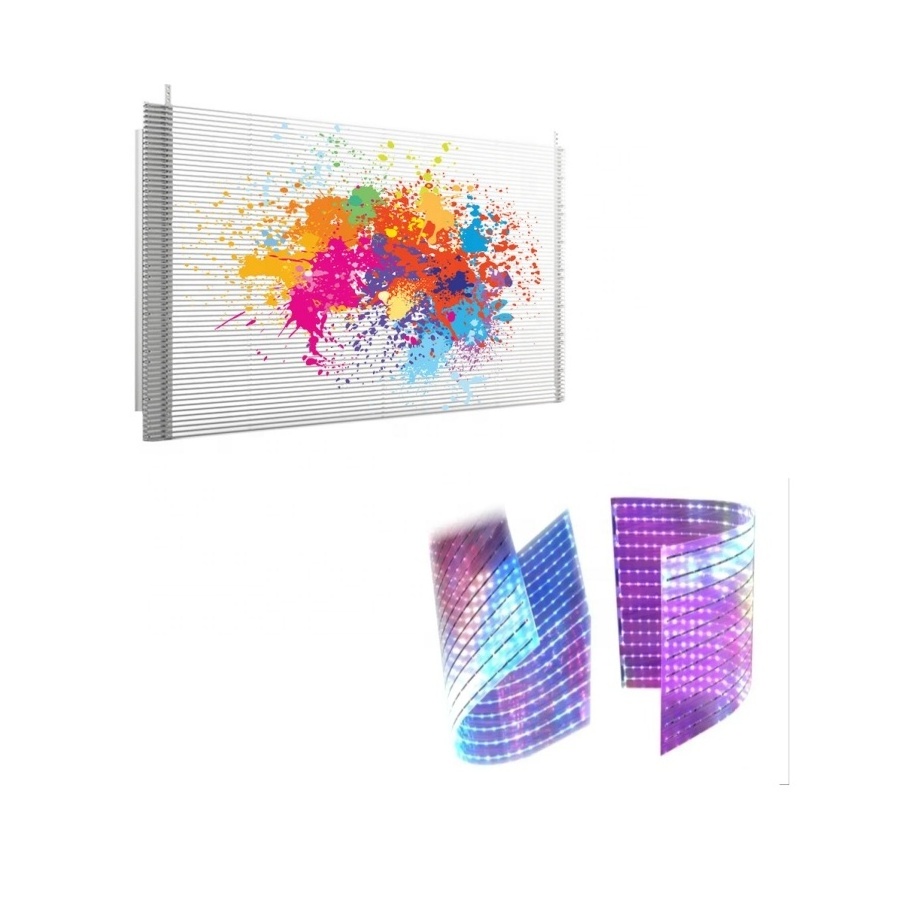

Product Application
Why Choose Us
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Wooden cases for transport
sea
transportation
air
transportation
