Quick Details
-
Voltage:
-
220 V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Davo
-
Dimension(L*W*H):
-
350*450*1080 mm
-
Weight:
-
35 KG, 35 kg
-
Product name:
-
DV-20 lipstick filling machine
-
Mixing speed:
-
0-100 r/min
-
Barrel Capacity:
-
20 L
-
Power:
-
2.2 kw
-
Capacity:
-
about 15 seconds/mould
-
Dimension:
-
350*450*1080mm
-
Material:
-
SUS 304
-
Marketing Type:
-
Hot Product 2022
Quick Details
-
Machinery Capacity:
-
1000BPH
-
Packaging Material:
-
Other
-
Filling Material:
-
Other
-
Voltage:
-
220 V
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Davo
-
Dimension(L*W*H):
-
350*450*1080 mm
-
Weight:
-
35 KG, 35 kg
-
Product name:
-
DV-20 lipstick filling machine
-
Mixing speed:
-
0-100 r/min
-
Barrel Capacity:
-
20 L
-
Power:
-
2.2 kw
-
Capacity:
-
about 15 seconds/mould
-
Dimension:
-
350*450*1080mm
-
Material:
-
SUS 304
-
Marketing Type:
-
Hot Product 2022
Lipstick Making Machines Lipstick Making Mixer Lipstick Manufacturing Machinery
Description of the lipstick making machine line
1. We have both the small scale lipsticks making machine line with the capacity of 5000 pcs/day and the semi-automatic machine line with large capacity which is suitable for the factory processing.
2.The whole line can be made of 304 stainless steel or 316 stainless steel.
Machines of the lipstick making machine line
| Item Name And Photos |
Description |
Technical Data |
|
1. Three roll milling machine
|
Three roll mill is mainly used for all kinds of pigments, lipstick, lip gloss and other slurry. It is especially suitable for grinding products with high dispersion viscosity and fine particle size. Through the surface extrusion of the horizontal three roller and different speeds of friction to achieve grinding effect.
The equipment is easy to operate, convenient to clean and maintain. The fuselage is made of cast iron, three-roll jacket is made of hard nickel alloy with water cooling.
|
Model: DV-150 Roller diameter: 150 mm Working length of roller: 300mm Roller speed: 25.3 for slow roller 63.25 for middle roller 152 for fast roller Power: 2.2 kw Rotated speed: 1420 rpm Roller speed ratio: 1:2.5:6 Dimension:820*800*920mm Weight: 400kg |
|
2. Lipsticks heating mixing machine
|
the machine applies to the mixing of lipsticks, lip balm, lip gloss, lip oil, lip honey, shampoo, shower gel and other liquid paste raw materials. |
Model: DV-50 Power: 0.4 kw Rotated Speed: 0-200 r/min Barrel heating power: 3 kw T emperature of barrel: 0-150 ℃ Dimension: 700*700*1620mm
|
|

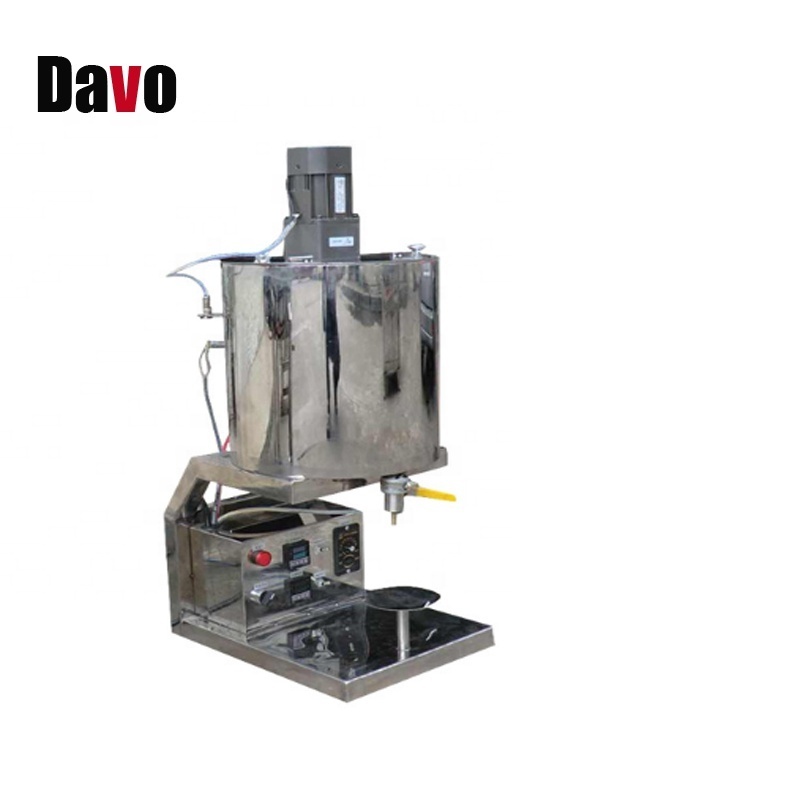

3. Lipsticks filling machine
|
1. The lipstick filling machine is suitable for filling lipstick, lipstick, eyebrow pencil and other liquid paste materials. 2. The machine has the function of heating and stirring. The barrel is used to heat the raw material by means of layer heating, which increases the heated area of the raw material and effectively controls the heating temperature of the raw material. 3. The speed control motor can effectively control the mixing speed. 4. It has the advantages of easy cleaning, high efficiency and wide application range. |
Model: DV-20 Power: 2.2 kw Barrel Capacity: 20 L Mixing speed: 0-100 r/min Temperature range: 0-100 ℃ Capacity: about 15 second/mould Dimension: 350*450*1080mm Weight: 35kg
|
|
4. Lipsticks cooling machine
|
This machine is suitable for the cold forming of lipstick, lip balm, crayon and other pastes. 1. The refrigeration time can be fixed. 2. The cooling temperature can be set as required. 3. Fast freezing speed, 1-3 minutes for freezing forming |
Model: DV-PT Compressor power: 1 kw Freezing plate size: 600*400mm Minimum refrigerating temperature: -15 ℃ Frozen paste time: 1-3 min Dimension: 700*900*680 mm Weight: 50 kg Material SUS 304
|
|
5. Demoulding machine
|
This product is designed for the demoulding device of silicone lipstick. After manually inserting the red tube, put it on the machine, press the mold and demoulding. 2. Simple machine is convenient for workers to operate. 3. Reduce production process and improve work efficiency. 4, lightweight does not take up space. 5. Easy maintenance and cleaning. |
Model: DV-TM Capacity: 15-50 pcs/min Number of demoulding :1-12 pcs/set Material: SUS 304 Dimension: 650*450*688mm Weight: 20 kg
|
Photos of the lipstick making machine line
End products photos
