Quick Details
-
Model Number:
-
VRX932LA
-
Output Power:
-
800W RMS
-
Shell Material:
-
plywood
-
System type:
-
passive/unpowered 2 way full frequency
-
Size:
-
1x12"
-
Frequency Range (-10 dB):
-
57 Hz - 20 kHz
-
Frequency Response (±3 dB):
-
75 Hz - 20 kHz
-
Coverage pattern:
-
100° x 15° nominal (horizontal x vertical)
-
Maximum System SPL1:
-
136 dB
-
Components:
-
LF: 2262HPL; HF: 3x 2407H (1.5 in voice coil)
-
Power Rating:
-
800W/1600W/3200W
-
Dimensions (H x W x D):
-
343 mm x 597 mm x 376 mm
-
Weight:
-
21 kg
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
skytone
-
Model Number:
-
VRX932LA
-
Output Power:
-
800W RMS
-
Shell Material:
-
plywood
-
System type:
-
passive/unpowered 2 way full frequency
-
Size:
-
1x12"
-
Frequency Range (-10 dB):
-
57 Hz - 20 kHz
-
Frequency Response (±3 dB):
-
75 Hz - 20 kHz
-
Coverage pattern:
-
100° x 15° nominal (horizontal x vertical)
-
Maximum System SPL1:
-
136 dB
-
Components:
-
LF: 2262HPL; HF: 3x 2407H (1.5 in voice coil)
-
Power Rating:
-
800W/1600W/3200W
-
Dimensions (H x W x D):
-
343 mm x 597 mm x 376 mm
-
Weight:
-
21 kg
1. Why choose us?
--------------------Skytone Audio------------------Skytone Audio-------------------Skytone Audio----------

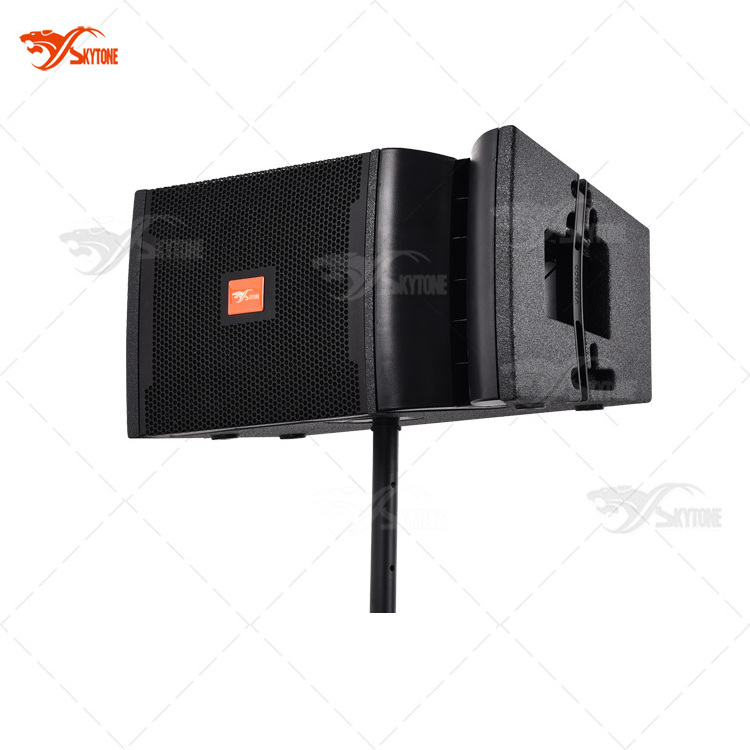

VRX932LA 12inch Empty Line Array Stage Speaker Cabinet
1. Compact line array 12"
2. Fantastic nice sound
3. Coming with neodymium drivers inside with light weight
4. The most popular models of active line array
5. 18mm plywood cabinet enclosure
6. Polyurea finish, which was imported, environmental water-based paint , which can be dried in 3 seconds, no bad smell
VRX932LA Application
A. Music playback and sound reinforcement in MID-size venues
B. Entertainers, corporate A/V professionals and sound system hire companies
C. Permanent Installation
D. Multi-function hall, church, wedding
E. Outdoor or indoor hug, middle, small events
F. Other entertainment places
--------------------Skytone Audio------------------Skytone Audio-------------------Skytone Audio-------
Specification of VRX932LA:
| VRX932LA Line Array Speaker | |
| Power Rating | 800 W / 1600 W / 3200 W |
| Frequency Range | 57 Hz - 20 kHz |
| (-10 dB) | |
| Dimensions | 343 mm x 597 mm x 376 mm |
| (H x W x D) | (13.5 in x 23.5 in x 14.8 in) |
| Frequency Response | 75 Hz - 20 Hz |
| (+/-3db) | |
| Coverage Pattern | 100 x 15 nominal |
| Crossover Modes | Bi-amp / passive, externally switchable |
| Crossover Frequency | 132 dB SPL peak 1.2 kHz |
| System Maximum SPL | Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak |
| System Sensitivity (1w @ 1m | Passive: 95 dB SPL |
| Bi-amp LF: 95 dB SPL | |
| Bi-amp HF: 114 dB SPL | |
| LF Driver | 1 x2262H 305 mm (12 in) Differential Drive® woofer with |
| neodymium magnet, dual voice-coils, and dual magnetic gaps. | |
| Nominal Impedance | Passive: 8 ohm |
| Bi-amp LF: 8 ohm | |
| Bi-amp HF: 8 ohm | |
| Enclosure | 18 mm, 11-ply birch plywood |
| Suspension / Mounting | Optional VRX932LA-AF line array frame kit |
| Finish | Black polyurea finish |
| Grille | Power coated, black, 16-guage perforated steel with with acoustically transparent foam |
| Input Connectors | Speakon® NL-4 (x2) |
| Net Weight | 21 kg (46 lb) |
