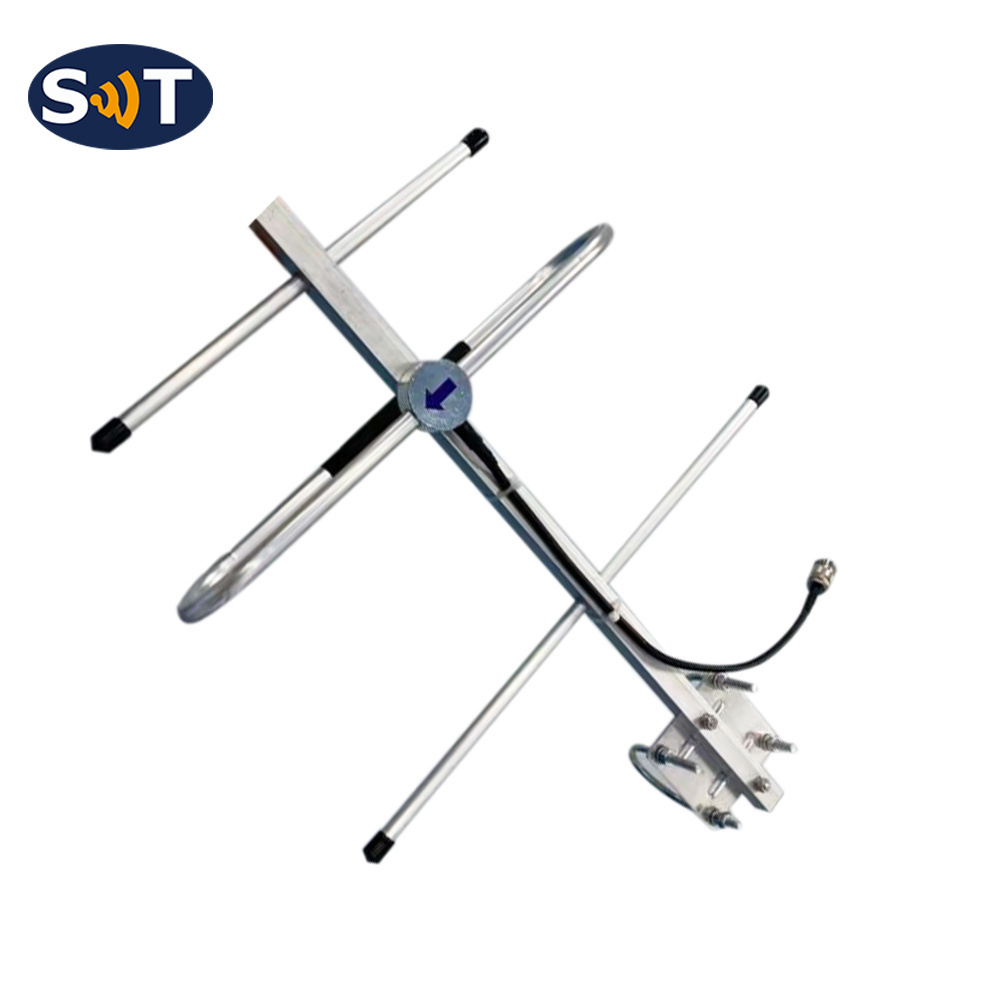

Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model NO.:
-
SWT-09YI12V09
-
Frequency Range:
-
902-928MHz
-
Gain:
-
12dBi
-
Polarization Type:
-
Vertical
-
VSWR:
-
≤1.5
-
Max Input Power.:
-
50W
-
Connector Type:
-
N-Type Female
-
Dimensions:
-
865*250*60(mm)
-
Radome Material:
-
Aluminum
Quick Details
-
Brand Name:
-
SWT
-
Model Number:
-
SWT-09YI12V09
-
Type:
-
Yagi antenna, Yagi antenna
-
Place of Origin:
-
Jiangsu, China
-
Model NO.:
-
SWT-09YI12V09
-
Frequency Range:
-
902-928MHz
-
Gain:
-
12dBi
-
Polarization Type:
-
Vertical
-
VSWR:
-
≤1.5
-
Max Input Power.:
-
50W
-
Connector Type:
-
N-Type Female
-
Dimensions:
-
865*250*60(mm)
-
Radome Material:
-
Aluminum
Application:
★902-928MHz,wireless communication system
★RFID System
Features:
★High gain,Good performance
★Anti Oxidation Coating,Long service life
★Simple Structure, thick and firm material,install and use conveniently
★902-928MHz,wireless communication system
★RFID System
Features:
★High gain,Good performance
★Anti Oxidation Coating,Long service life
★Simple Structure, thick and firm material,install and use conveniently
Technical Parameters:
|
Model Number
|
SWT-09YI12V09
|
|
|
|
|
Frequency Range
|
902-928MHz
|
|
|
|
|
Polarization Type
|
Vertical
|
|
|
|
|
Gain
|
12dBi
|
|
|
|
|
3dB Beam-Width. H-Plan
|
42°
|
|
|
|
|
3dB Beam-Width. E-Plan
|
38°
|
|
|
|
|
VSWR
|
≤1.5
|
|
|
|
|
Front to Back Ratio(dB)
|
≥17dB
|
|
|
|
|
Input Impedance
|
50Ω
|
|
|
|
|
Max Input Power.
|
50W
|
|
|
|
|
Lightning Protection
|
DC Grounded
|
|
|
|
Mechnical Parameters:
|
Connector Type
|
N-Type Female
|
|
|
|
|
Dimensions H*W*D (mm)
|
865*250*60(mm)
|
|
|
|
|
Radome Material
|
Aluminum
|
|
|
|
|
Radome color
|
silvery
|
|
|
|
|
Operating Temperature Rang
|
-40ºC/+60ºC
|
|
|
|
|
Support Pole Diameter
|
φ30-φ60(mm)
|
|
|
|
|
Rated Wind Velocity
|
60m/s
|
|
|
|
|
Operating Temperature Rang
|
-40ºC/+60ºC
|
|
|
|
Nanjing Shinewave Technology Co.,Ltd.
is established in year 2008,and it's a company specialized in the research and development, production and sales of RF microwave active,passive components and subsystems. Based on the academic research team of Nanjing University of Aeronautics and Astronautics, our company has established an innovative research and development team with doctor and master degree talents, and constantly attracts outstanding talents in the industry and outstanding students from famous universities to expand the team.
Our company has about 20 authorized invention patents in active,passive device phase shifter reconfigurable antenna, etc. The application fields are related to radar electronic countermeasures, aerospace, navigation and other military fields. At the same time, it is also widely used in microwave communication, mobile communication and other civil market products, covering RF microwave devices components and antennas, among which, active products include high power solid-state microwave power amplifier,
low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,
low noise amplifier transceiver module, up and down frequency converter, frequency source, etc. Passive products include microwave filter,
duplexer power divider, coupler,
power synthesizer, etc. The antenna products are mainly based on various high gain horn antennas, which covers VHF, UHF, L-band, S-band, C-band, X-band, Ku band and so on.
Our company is located in the beautiful ancient capital of six Dynasties, in Nanjing Yuhuatai District Big Data Industrial Base. To meet the special needs of customers and higher index requirements, in addition to the standard products, we also provide customers with customized products development methods, dedicated to provide customers with fast and high-quality products and
services.
services.
Packaging Details:
Port of Delivery: Shanghai
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample ususally take within 3 working days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.
Q4. How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number,
sometimes need email. Then we can draft the order and it will have a alibaba paying link.
Q5. After paid, what info of the supplier provided?
A: Tracking number
Q6: Do you offer guarantee and after-service for the products?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample ususally take within 3 working days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item.
Q4. How to proceed an order?
A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number,
sometimes need email. Then we can draft the order and it will have a alibaba paying link.
Q5. After paid, what info of the supplier provided?
A: Tracking number
Q6: Do you offer guarantee and after-service for the products?
A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate.
