Quick Details
-
Product name:
-
RF output IP QAM Modulator
-
Application:
-
CATV headend system
-
Input interface:
-
6*ASI+3*IP
-
Output interface:
-
RF 8/12/16/32 frequencies
-
Protocol:
-
IP intput(SPTS/MPTS ),UDP,RTP protocol
-
Standard:
-
ARIB STD-B31
-
FFT mode:
-
2K,4K,8K
-
Constellation:
-
QPSK, 16QAM, 64QAM
-
Output standard:
-
DVB-C/DVB-T/ATSC/ISDBT/DMBT
-
Web:
-
supports online upgrading
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GreenGo
-
Model Number:
-
NI0316 RF output IP QAM Modulator
-
Product name:
-
RF output IP QAM Modulator
-
Application:
-
CATV headend system
-
Input interface:
-
6*ASI+3*IP
-
Output interface:
-
RF 8/12/16/32 frequencies
-
Protocol:
-
IP intput(SPTS/MPTS ),UDP,RTP protocol
-
Standard:
-
ARIB STD-B31
-
FFT mode:
-
2K,4K,8K
-
Constellation:
-
QPSK, 16QAM, 64QAM
-
Output standard:
-
DVB-C/DVB-T/ATSC/ISDBT/DMBT
-
Web:
-
supports online upgrading

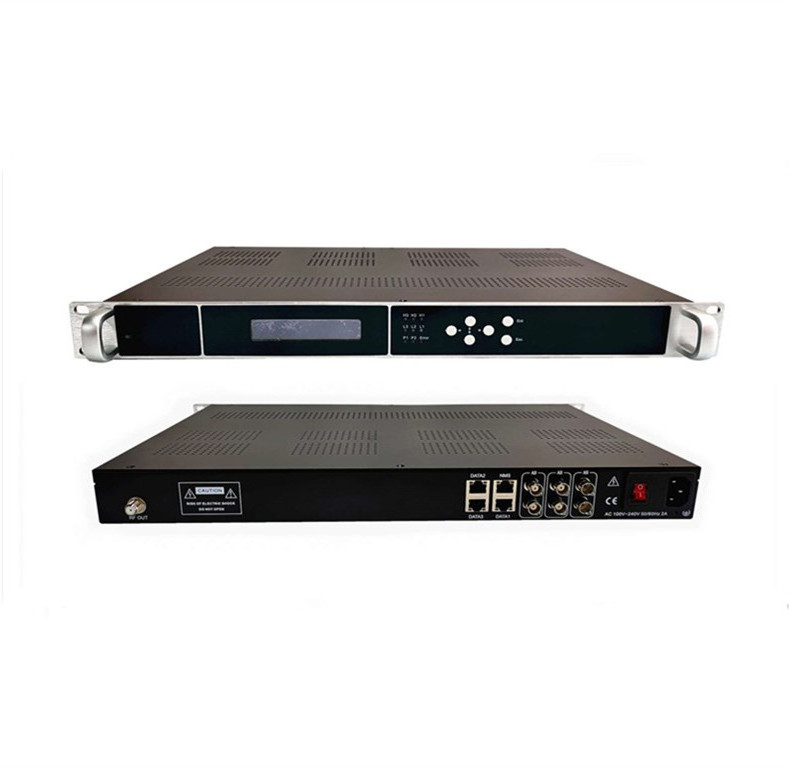

GreenGo 16 in 1 IP input and RF output IP QAM Modulator digital tv ip QAM Modulator
NI0316 is a cost-effective QAM modulator developed according to ISDB (EN300744) standard. It has 128*3 IP inputs. After multiplexing and modulating process, it gives 16 (ATSC,ISDBT,DTMBT,DVB-C/-T) non-adjacent carriers (96MHz~864MHz) output through the RF output interface. To meet customers’ various requirements, this device is also equipped with data port for 8 MPTS output over UDP and RTP. This is very adaptable to newly generation DTV broadcasting system
FEATURES
v Support maximum 3*128 IP input (MPTS/SPTS) over UDP and RTP protocol
v Support 8 MPTS Output
v Support 16 channel ISDB modulating
v RF 96~864MHz Any Settings
v Support 6 Serial TS Input (Any Multiplex)
v Integrated multiplexing and modulating functions
v Support accurate PCR adjusting/PID Remapping/PSI/SI rebuilding and editing
v Web-based NMS management
Specification
|
Modulation |
Standard |
ARIB STD-B31 |
|
FFT mode |
2K,4K,8K |
|
|
Bandwidth |
6M |
|
|
Constellation |
QPSK, 16QAM, 64QAM |
|
|
RF out |
16 Channels ISDB , |
|
|
RF frequency |
96~864MHz , 1kHz step |
|
|
RF output level |
-35dBm~-5dBm |
|
|
MER |
≥40db |
|
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|
|
|
|
|
|
IP Input |
3ch 128 IP(SPTS/MPTS) input over UDP and RTP, RJ45,1000M/100M, Unicast/Multicast, 6ch ASI input. |
|
|
System |
LCD/Keyboard operating and web-based NMS support |
|
|
Ethernet software upgrading |
||
|
General |
Dimension (W*D*H) |
440mm×300mm×45mm (Box)
|
|
Temperature |
0~40℃(work) ; -20~80℃(storage) |
|
|
Power supply |
AC 110V±10% , 50/60Hz AC 220V±10% , 50/60Hz |
|
1. Online upgrading:
We offers online service to make the setting of the software, change the product standard (From DVB T to DVB C or to other system)
2. Accessorie and STB
We offer aftersales service for all accessaries , and information of metching STB suppliers.
