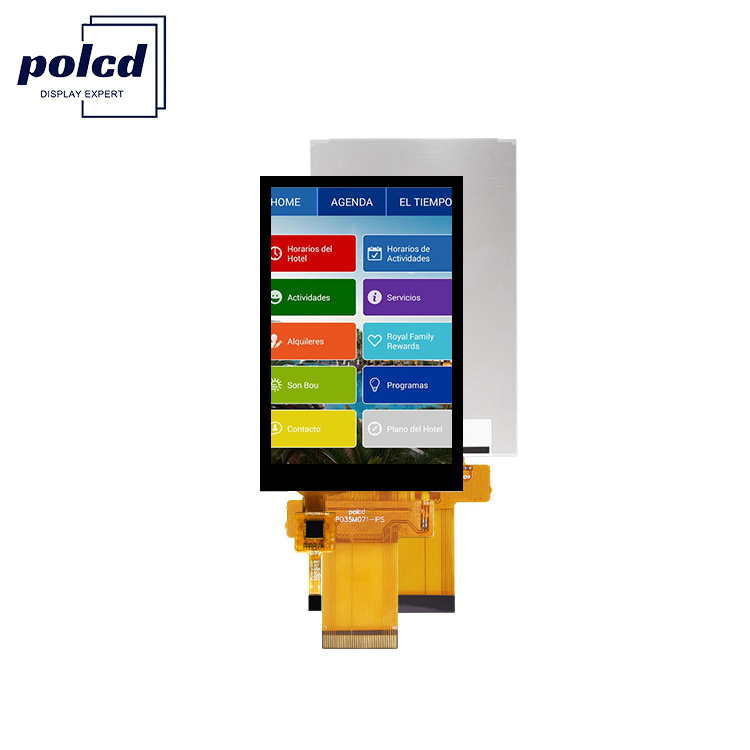

Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen
Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen

Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen

FOB Reference Price: Get Latest Price
≥1 Pieces
US $6.27
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Polcd
Product Name:
TFT LCD Dispaly
Resolution:
320*480
Display Mode:
Normally Black
Active Area (W * H ):
48.96(H) * 73.44(V)MM
Luminance:
300cd/㎡
Viewing Direction(eye):
IPS all view angle
Interface:
MCU 8/16bit 3/4wire SPI
LCM Driver IC:
ILI9488
CTP IC:
FT6336U
Warranty:
1 year / 2 years

Quick Details

Type:
TFT / LCD / LCM
Display Size:
3.5 inch
Supplier Type:
OEM/ODM
Place of Origin:
Guangdong, China
Brand Name:
Polcd
Product Name:
TFT LCD Dispaly
Resolution:
320*480
Display Mode:
Normally Black
Active Area (W * H ):
48.96(H) * 73.44(V)MM
Luminance:
300cd/㎡
Viewing Direction(eye):
IPS all view angle
Interface:
MCU 8/16bit 3/4wire SPI
LCM Driver IC:
ILI9488
CTP IC:
FT6336U
Warranty:
1 year / 2 years

Polcd Manufacturer 3.5 inch MCU SPI interface TFT LCD Module 320*480 Resolution 40pin Capacitive Touch Screen

Product Description

We are the manufacturer, can be continuous supply for at least 20 years !!

>>>> NO MOQ
>>>> Free Sample
>>>> Fast Delivery
>>>> Any information can consult us.

D escription of 3.5 inch TFT LCD :

3.5 inch TFT LCD is a high-quality display screen that is commonly used in various electronic devices, including handheld devices, automotive displays, and medical equipment.

The 3.5 inch TFT LCD is a versatile and reliable display technology that offers high-quality display performance, low power consumption, and durability. Its wide range of applications and customization options make it an ideal choice for a variety of electronic devices.

Parameter:

Model

P035M071-IPS-CTP

Screen Size

3.5 inch

Number of Pixel

320RGB(H)x480(V)

Display area

48.96(H)x73.44(V)mm

Pixel pitch

51(H)x153(V) um

Pins

40 pins

CTP IC

FT6336U

Outline Dimension

54.66x84.71x3.40mm

Pixel arrangement

RGB Vertical Stripe

Display mode

Normally Black

Viewing Direction(eye)

ALL

Display Color

262k

Luminance(cd/m2)

300 nit

Contrast Ratio

700:1

Interface

MCU 8/16bit   3/4wire SPI

Back-light

LED Side-light type

Drive IC

ILI9488

Operation Temperature

-20~70 ℃

Storage Temperature

-30~80 ℃

Features and benefits of the 3.5 inch TFT LCD :

Size and resolution: The 3.5 inch TFT LCD has a diagonal size of 3.5 inches and typically has a resolution of 320x480 pixels, providing a high-quality display for various applications.

Color display: The TFT LCD can display up to 262,144 colors, providing accurate color representation and making it ideal for displaying images and videos.

Wide viewing angle: The TFT LCD typically has a wide viewing angle, allowing for clear viewing from different angles without distortion or color shift.

Touch screen support: The TFT LCD can support capacitive touch screen input, allowing users to select, slide, and zoom with their fingers.

Low power consumption: TFT LCD technology typically has low power consumption, which is important for devices that run on battery power.

Durability: TFT LCDs are durable and can withstand shock and vibration, making them suitable for use in various applications, including handheld devices, automotive displays, and medical equipment.

Customization: The 3.5 inch TFT LCD can be customized to meet specific application requirements, including different sizes, FPC Shape, and brightness.

Strict Quality Inspection
Polcd's LCD screens can be used in the aerospace industry because we have veryhigh quality requirements. The raw materials are purchased from high-end brands. Professional testing equipment will be used for testing every step in the period of production. The most important thing is that before the products shipped, we can do more and more precise aging tests than those in the same industry.

Production Process
The production process of TFT LCD involves multiple steps, including substrate cleaning and cutting, coating, film deposition, photolithography, and etching. First, glass substrates are cleaned and cut into specific sizes. Then, a layer of transparent conductive material is coated onto the substrate surface. This is followed by deposition of several thin films, including the active layer, metal layer, and passivation layer, using specialized equipment. Photolithography and etching processes are then used to create the desired patterns on the different layers.

Finally, the substrates are assembled into a complete TFT LCD panel, including the addition of polarizer, backlight unit, and driver IC. The entire production process is highly precise and requires advanced equipment and technology to ensure high-quality and high-yield production.

Packaging & Shipping

Samples (1-30 PCS)

Lead Time

1~30 PCS

1~7 days

31 ~500 PCS

7~10 days

501~1000 PCS

2 weeks

1001~5000+ PCS

2~3 weeks

Our production capacity can reach 25,000 pcs/Day = 7 00,000 + pcs/Month .

Guaranteed non-stop supply for at least 20 years ! !
