Quick Details
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2900*1140*1160mm
-
Application:
-
Woodworking Equipment
-
Weight (KG):
-
800 KG
-
Power (kW):
-
5.5kw
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Woodworking Panel Saw
-
Model:
-
2800mm 45 degree
-
Sliding Table Size:
-
2800*320mm
-
Maximum Cutting Length:
-
2750mm
-
Maximum Cutting Width:
-
1250mm
-
Saw Blade Diameter:
-
300mm
-
Maximum Sawing Thickness:
-
80mm
-
Saw Blade Angle:
-
0-45°
-
Main Motor Power:
-
4/5.5Kw
-
Size:
-
2900*1140*1160mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
grandio
-
Usage:
-
Wood Cutting
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
2900*1140*1160mm
-
Application:
-
Woodworking Equipment
-
Weight (KG):
-
800 KG
-
Power (kW):
-
5.5kw
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Woodworking Panel Saw
-
Model:
-
2800mm 45 degree
-
Sliding Table Size:
-
2800*320mm
-
Maximum Cutting Length:
-
2750mm
-
Maximum Cutting Width:
-
1250mm
-
Saw Blade Diameter:
-
300mm
-
Maximum Sawing Thickness:
-
80mm
-
Saw Blade Angle:
-
0-45°
-
Main Motor Power:
-
4/5.5Kw
-
Size:
-
2900*1140*1160mm
Product Description
<Performance features>
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable. .
1. Improved internal structure, ensure stable and precision working environment;
2. Aluminum sliding table with round stick rail, ensure smooth running;
3. Accurate and solid rip fence with fine adjustment function;
4. Adjustment saw blade protection extraction hood;
5. Saw blade manual tiltable (0°- 45°)as well as height adjustable. .
Specification
|
Mode
|
2800mm MJ45°/90°
|
3000mm MJ45°/90°
|
3200mm MJ45°/90°
|
|
|
|
Dimension of sliding table
|
2800X320mm
|
3000X375mm
|
3200X375mm
|
|
|
|
Length of cut between saw blade and rip fence
|
2750mm
|
2950mm
|
3150mm
|
|
|
|
Width of cut between saw blade and rip fence
|
1250mm
|
1250mm
|
1250mm
|
|
|
|
Saw blade diameter
|
300mm
|
300mm
|
300mm
|
|
|
|
Height of cut
|
80mm
|
80mm
|
80mm
|
|
|
|
Speed of main saw spindle
|
4000/6000rpm
|
4000/6000rpm
|
4000/6000rpm
|
|
|
|
Main spindle diameter
|
30mm
|
30mm
|
30mm
|
|
|
|
Tilting saw blade
|
0-90°
|
0-90°
|
0-90°
|
|
|
|
Main motor
|
4.0/5.5kw
|
4.0/5.5kw
|
4.0/5.5kw
|
|
|
|
Scoring saw blade diameter
|
120mm
|
120mm
|
120mm
|
|
|
|
Speed of scoring saw blade
|
8000rpm
|
8000rpm
|
8000rpm
|
|
|
|
Scoring saw diameter
|
20mm
|
20mm
|
20mm
|
|
|
|
Scoring motor
|
0.75/1.1kw
|
0.75/1.1kw
|
0.75/1.1kw
|
|
|
45°/90° saw
This machine can adjust 45° or 90° saw tooth,suitable for more range of wood use.
This machine can adjust 45° or 90° saw tooth,suitable for more range of wood use.
Ruler
The operation is simple and clear to ensure the machining accuracy.
The operation is simple and clear to ensure the machining accuracy.
Electric lift
Export lifting mode for electric lifting angle display for digital reading, plus accuracy and convenience.
Export lifting mode for electric lifting angle display for digital reading, plus accuracy and convenience.
Round guide rail
The double-layer round bar guide rail push table has stable structure,high pressure bearing and guaranteed precision.
The double-layer round bar guide rail push table has stable structure,high pressure bearing and guaranteed precision.
Related Products
.
We produce many types of woodworking machines, you can consult me more.
Sample products

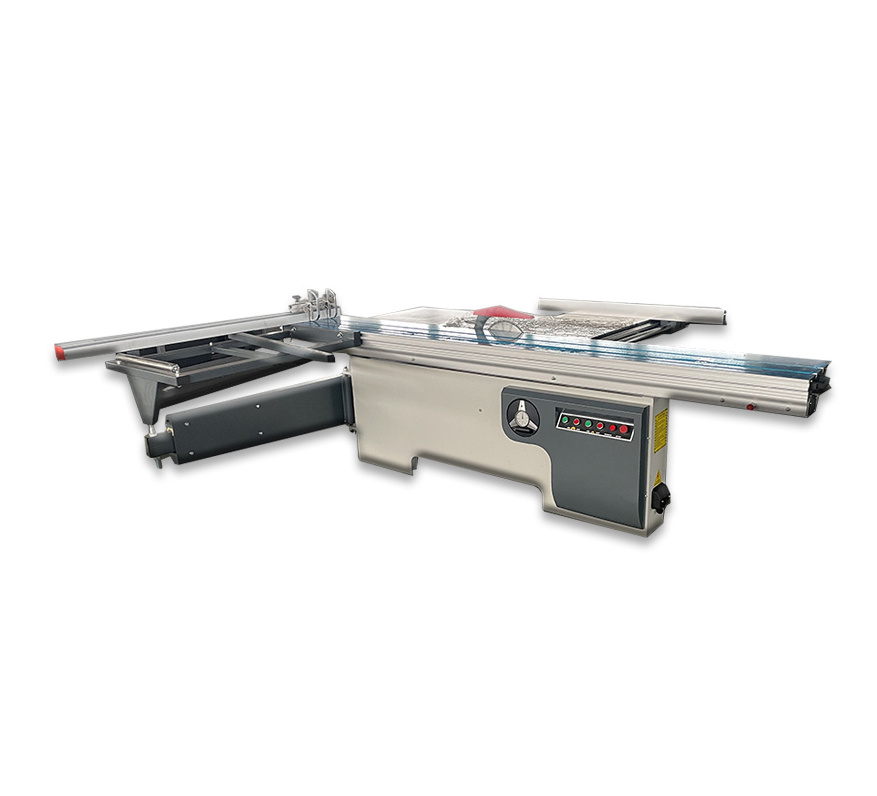

Precision panel saws are also called sliding table saws, which are mainly used for longitudinal sectioning, transverse or angled sawing of plywood, particleboard, fiberboard, veneer, laminated board, blockboard, spliced solid wood board and plastic board,etc.
It can be processed to obtain panels whose size meets the specifications. It can also be used for sawing of various insulating panels, thin aluminum panels and aluminum profiles.
The precision panel saw is composed of a bed, a fixed table, a movable table, a cutting part and a guide device. .
The precision panel saw is composed of a bed, a fixed table, a movable table, a cutting part and a guide device. .
Packing & Delivery
MJ6130 3200mm 45 degree Wood Cutting Squaring machine Manual lifting Saw blade Sliding Table Panel Saw Machines.
1.Wrapped with plastic film
2.Fumigation free plywood
3.Strong steel pallet
Size for reference:
MJ6128:L2900*W1140*H1160mm
