Quick Details
-
Model Number:
-
/
-
Name:
-

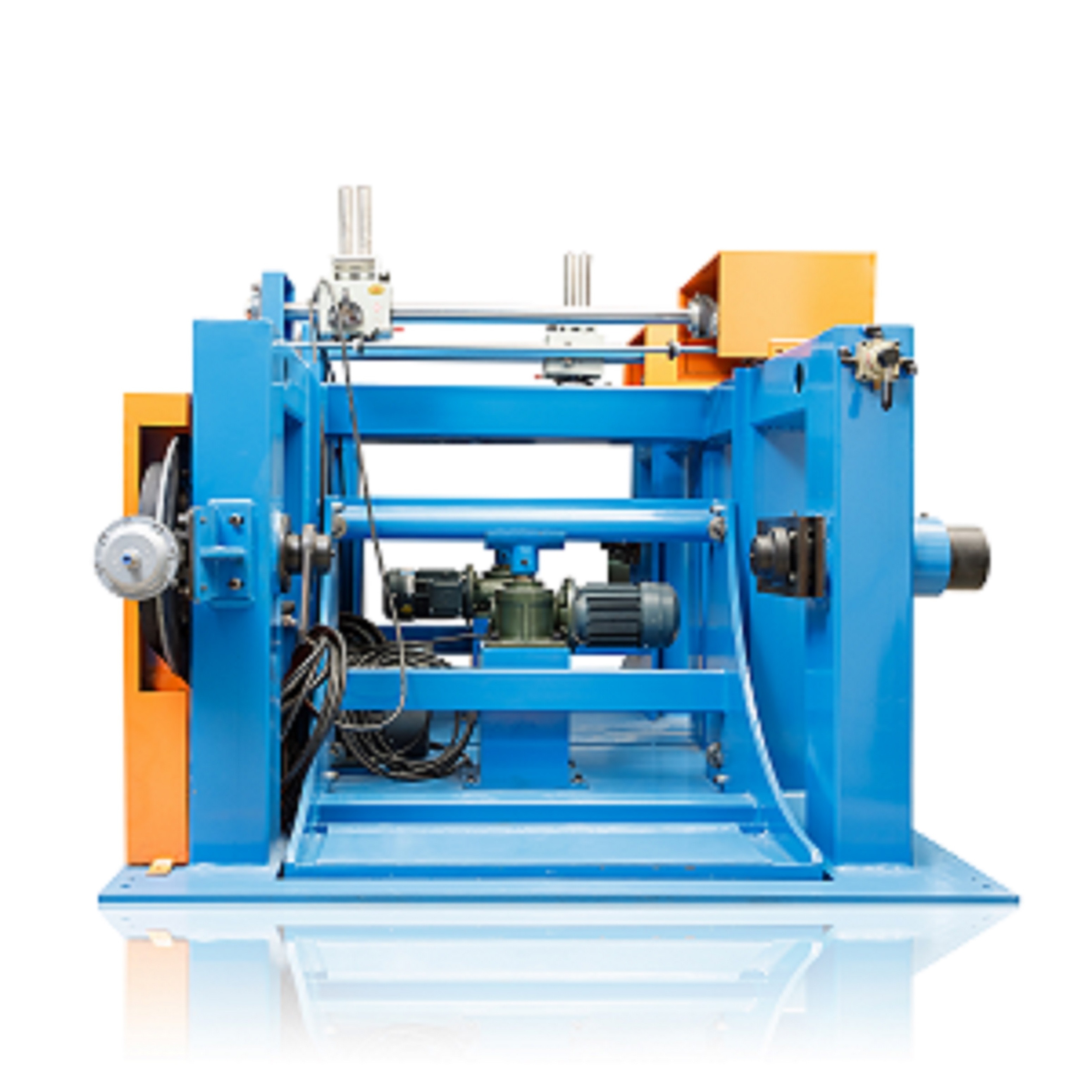

Cable Pay-off stand and Take-up stand
-
Application:
-
Suitable for various cables or core wires
-
Function:
-
Carrying cable
-
Bobbin size:
-
Customizable
Quick Details
-
Use:
-
Carrying
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Pinyang
-
Model Number:
-
/
-
Name:
-
Cable Pay-off stand and Take-up stand
-
Application:
-
Suitable for various cables or core wires
-
Function:
-
Carrying cable
-
Bobbin size:
-
Customizable
Product Description
Application:
Used for pay off and take up
Specification
1、Double-head pay-off unit t
echnical parameters
1. Applicable cable reel: Φ500-630mm
2. Stranded wire type: enameled wire, tinned wire, bare copper wire, etc.
3. Tension control: spring tension, control the tension and pay-off speed through the
swing arm belt
4. Braking: automatic braking when disconnected
2. Stranded wire type: enameled wire, tinned wire, bare copper wire, etc.
3. Tension control: spring tension, control the tension and pay-off speed through the
swing arm belt
4. Braking: automatic braking when disconnected
2、
Magnetic powder tension pay-off stand technical parameters
1. Pay-off reel specifications: Φ630-1250mm
2. Tension control: 10kg Weizheng magnetic powder tension, tension size
3. Wire reel lifting: using 1HP motor + reducer to automatically lift, with upper and lower limit safety devices, easy to operate, saving manpower and operating time, and improving
2. Tension control: 10kg Weizheng magnetic powder tension, tension size
3. Wire reel lifting: using 1HP motor + reducer to automatically lift, with upper and lower limit safety devices, easy to operate, saving manpower and operating time, and improving
3、
Shaftless take up machine technical parameters
1. Type: shaftless double-head type, left and right top cones
2. Pay-off method: intelligent power tracking pay-off
3. Spool locking method:Cylinder lock
4. Spool rotation mode: using motor tracking transmission
5. Spool size used: Φ500-630mm spool (specific size specified by customer)
6. Equipped with wiring and disconnection sensing brake stopping device
7. 1/2HP reduction motor + electric lifter to control lifting
8. Power: 5HP motor + 5HP inverter
2. Pay-off method: intelligent power tracking pay-off
3. Spool locking method:Cylinder lock
4. Spool rotation mode: using motor tracking transmission
5. Spool size used: Φ500-630mm spool (specific size specified by customer)
6. Equipped with wiring and disconnection sensing brake stopping device
7. 1/2HP reduction motor + electric lifter to control lifting
8. Power: 5HP motor + 5HP inverter
4、Slide tube pay off and take up machine technical parameters
1.Type: shaftless type, no foundation, the ground beam moves and opens and closes on the seamless tube
2. Pay-off reel specifications: PN1000-PN2000
3. Applicable reel width: 600-1500mm
4. Top diameter: 80-1250mm
5. Cable reel load: 7T
6. Lifting motor power: 1.1Kw
7. Side shift motor power: 0.75Kw
8. Lifting method: The lifting of the wire reel and the opening and closing of the thimble are driven by an AC motor, cantilever operation, and can be operated in a single or linked manner.
9. Axis lifting method: side movement, the operations of the lifting shafts on both sides can be single or linked.
2. Pay-off reel specifications: PN1000-PN2000
3. Applicable reel width: 600-1500mm
4. Top diameter: 80-1250mm
5. Cable reel load: 7T
6. Lifting motor power: 1.1Kw
7. Side shift motor power: 0.75Kw
8. Lifting method: The lifting of the wire reel and the opening and closing of the thimble are driven by an AC motor, cantilever operation, and can be operated in a single or linked manner.
9. Axis lifting method: side movement, the operations of the lifting shafts on both sides can be single or linked.
