Quick Details
-
Dimension(L*W*H):
-
5300*2300*1700
-
Year:
-
2022
-
Power (kW):
-
55 kW
-
Weight (KG):
-
15000 KG
-
Name:
-
tire shredder waste tire recycling machine for crumb rubber powder
-
power:
-
40-90kw
-
Application:
-
Recycle waste tyre
-
model:
-
semi-auto xkp400 450 560, Auto LPS800,LPS1200
-
color:
-
as customers' demand
-
Fuel:
-
Electricity Etc
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE/ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guangyue
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
5300*2300*1700
-
Year:
-
2022
-
Power (kW):
-
55 kW
-
Weight (KG):
-
15000 KG
-
Name:
-
tire shredder waste tire recycling machine for crumb rubber powder
-
power:
-
40-90kw
-
Application:
-
Recycle waste tyre
-
model:
-
semi-auto xkp400 450 560, Auto LPS800,LPS1200
-
color:
-
as customers' demand
-
Fuel:
-
Electricity Etc
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Video technical support
-
Certification:
-
CE/ISO

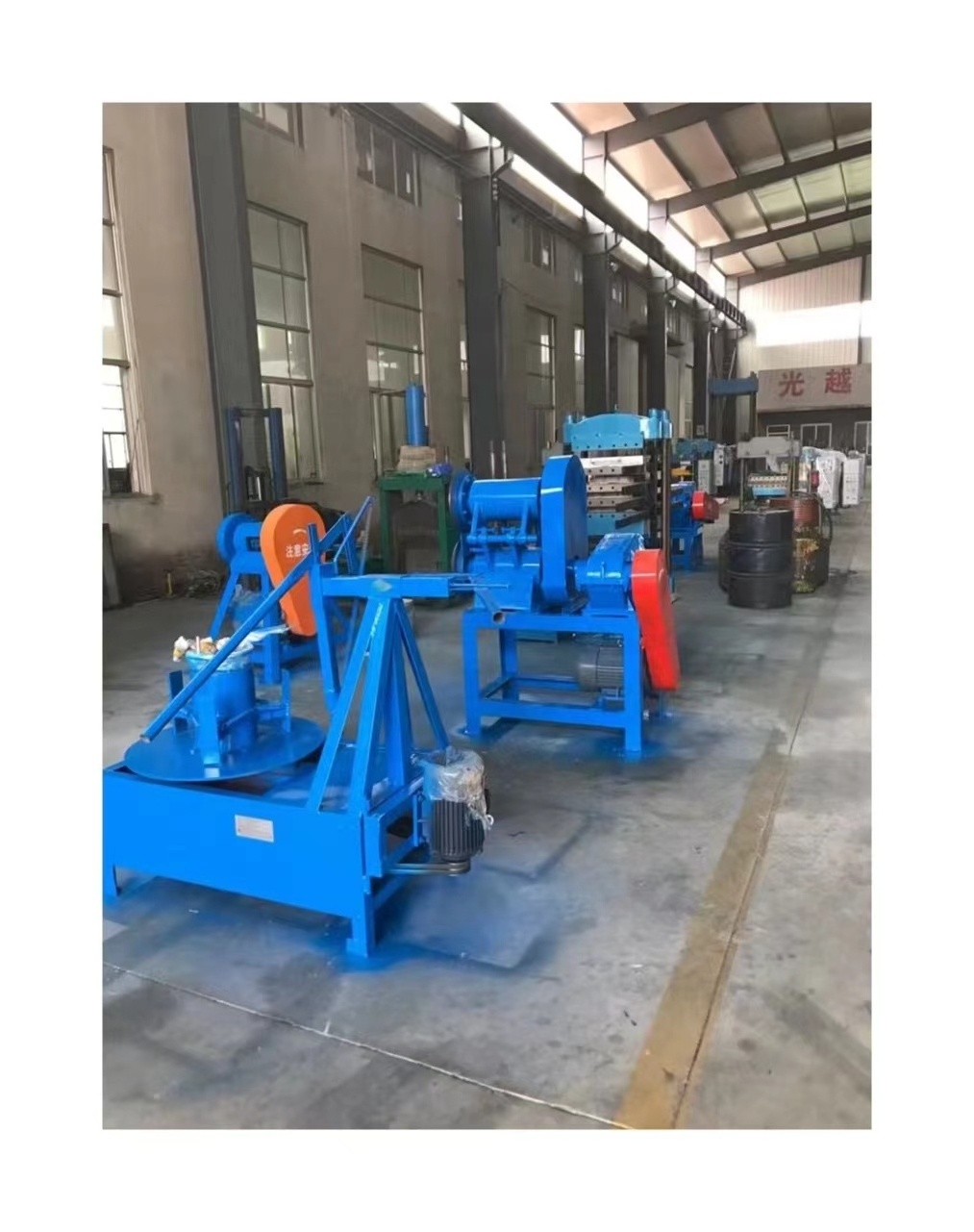

Waste Tyre Recycling Production Line / Rubber Crushing Machine
Product Description
General:
This production line including main machine and accessorial equipment, it is used for recycling scrap-tire (steel tyre and textile tyre), the final product is rubber powder or reclaimed rubber
Producing Flow:
Waste tire→cutting circle → cutting strip → cutting dice → crushing filtering → magnetic separating filtering → finished products → rubber powder/steel wire/nylon.
Features of Tyre Recycling Production Line:
- Process tires size 600-1200 mm.
- Final granule size 5-24 mesh, purity ≥ 99.7%.
- Space for installation is about 300-400 m2
- One year's warranty time and life time maintain service.
- Capacity: 5-6 tons/day.
1-1.Ring cutter
|
Item |
Specification |
|
motor power |
5.5 |
|
production |
80-100 tires/h |
|
MAX Diameter of tyre |
1200mm |
|
Dimension |
1100*900*1700mm |
|
Purpose : ring cutter is used for cutting the used tire into three parts,two sidewalls and one tread.
|
|
1-2.bead wire separator
|
Item |
Specification |
|
Motor power |
15 KW |
|
Linear speed of front roller |
15.5 m/min |
|
Ratio of speed |
1.1 |
|
Dimension |
1520*1150*12101mm |
|
Purpose:To Separate the steel ring from the rubber after 1 step. |
|
1-3.strip cutter
|
Item |
Parameter |
|
Motor Power |
5.5kw |
|
Disc Diameter |
380mm |
|
production |
100-120tyres/hour |
|
Dimension |
1290*870*1550 |
|
Purpose: To cut the old tyre intostrip
|
|
1-4.block cutter
|
Item |
Specification |
|
motor power |
11kw |
|
Speed of main screw |
420 r/min |
|
Out diameter of cutter |
200mm |
|
Dimension |
1130*830*1100 |
|
Purpose: To Cut the strip into block |
|
1-5.tyre crusher mill
|
Item |
XKP-560 |
|
Diameter of front roll(mm) |
560 (smooth) |
|
Diameter of back roll(mm) |
510 (groove) |
|
Working length(mm) |
800 |
|
Linear speed of front roll(m/min) |
25.56 |
|
Ratio |
1:1.30 |
|
MAX gap(mm) |
15 |
|
capacity(kg/h) |
600-800 |
|
Motor power(kw) |
75 |
|
Dimension (l*w*h)(mm) |
5064*2284*1978 |
|
Weight(kg) |
18000 |
Purpose:
Crush the rubber block into rubber powder and granule.
Final Product→Rubber Powder
Exibition & Customers
All the product are CE,ISO, Approved.
Packaging Details: Wood Pallet & Film Wrap
Delivery Detail: 60 Working Days Since Down Payment
