Quick Details
-
Weight:
-
1400 KG
-
Start way:
-
Electricity start
-
Clutch:
-
Single clutch
-
Dimension(L*W*H)mm:
-
3000*1500*1860
-
Front wheel tread(mm):
-
850,960,1000,1100,1200,1300 adjustable
-
Rear wheel tread(mm):
-
960 - 1300 unlimited adjustable
-
Gear shifts:
-
8F+2R
-
Tire:
-
9.5-24/650-16 (9.5-24/550-16)
-
Implements:
-
Front end loader,backhoe,pallet fork,rotary tiller,trailer(optional)
-
Color:
-
Red, blue,green, depend on client's request
Quick Details
-
Brand Name:
-
Huaxia
-
Place of Origin:
-
Shandong, China
-
Marketing Type:
-
Hot Product
-
Weight:
-
1400 KG
-
Start way:
-
Electricity start
-
Clutch:
-
Single clutch
-
Dimension(L*W*H)mm:
-
3000*1500*1860
-
Front wheel tread(mm):
-
850,960,1000,1100,1200,1300 adjustable
-
Rear wheel tread(mm):
-
960 - 1300 unlimited adjustable
-
Gear shifts:
-
8F+2R
-
Tire:
-
9.5-24/650-16 (9.5-24/550-16)
-
Implements:
-
Front end loader,backhoe,pallet fork,rotary tiller,trailer(optional)
-
Color:
-
Red, blue,green, depend on client's request

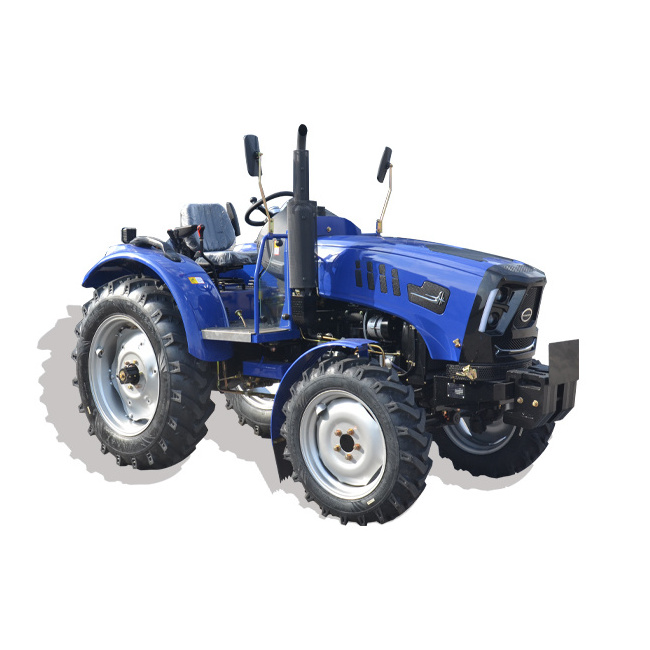

Model: 4x4 40hp 45hp sunshade tractors prices mini tractor agricola for agriculture
Thi s series is middle hp tractor, which directly connected with its engine.Jaw type differential lock can
improve the pass-ability.Hydraulic output interface can make direct connection with the dump trailer.
This series tractor can have many different configurations according to customers demands:single stage
clutch or two stage clutch,(4+1)*2 eight shifts in which the creeping shift can be selected,one or two
speed PTO,fixed or adjusted tread,roll bar and canopy,combination meter,heater cabin and so on.
| From DY184 to DY454 | ||||||||
| Models | 184(180) | 204(200) | 254(250) | 284(280) | 304(300) | 354(350) | 404(400) | 454(450) |
| Wheel drive | 4*4 (4*2) | |||||||
| Dimension(L*W*H)mm | 3350*1500*1860 | |||||||
| Weight(kg) | 1210-1380 | |||||||
| Front wheel tread (mm) | 850,970,1000,1100,1200,1300 adjustable | |||||||
| Rear wheel tread (mm) | 970 - 1300 unlimited adjustable | |||||||
| Wheel base (mm) | 1750 | |||||||
| Min land clearance(mm) | 330(340) | |||||||
| Gear shifts | 8F + 2R | |||||||
| Tyre size | 9.5-24/650-16 (9.5-24/550-16) | |||||||
| Engine Specification | ||||||||
| Model | JD295 | JD295 | JD2100 | JD2102 | JD/LD | JD/LD4 | JD/LD | JD/LD |
| Type | 2 Cylinder or 3 Cylinder | 3 Cylinder | 4 Cylinder | |||||
| Type | Water cooled ,vertical,4 stroke and direct injection | |||||||
| Rated power(kW) | 13.23 | 16.16 | 18.37 | 20.58 | 22.06 | 25.7 | 29.4 | 33.1 |
| Rated revolution (r/min) | 2300/2400 | |||||||
| Start way | Electricity start | |||||||
| Transmission | (4+1)*2 shifts | |||||||
| Clutch | Single chip,dry friction,constant conjunction, single clutch,double clutch | |||||||
| PTO speed | 6 Spline, dual speed 540/720 | |||||||
| Clutch | Single stage clutch | |||||||
| Steering | Hydraulic steering and double hydraulic pumps | |||||||
| Optional parts | Roll bar | Swing draw bar | ||||||
| Sun-shade ,canopy (ROPS) | Spring seat | |||||||
| Multi-way valve | Double clutch | |||||||
| Fender | 750-16/11.2-24 tire | |||||||
| Air brake | Combination instrument | |||||||
| Steel frame package | Cabin (including the heater and fan) | |||||||
We are manufacturer with 18 years experience in farm tractor production and selling,have
strong technology force an superior machine and equipment with the auto assembly line which
is advanced in China.The products are in strict compliance with the international norms of quality
system and have mature at guarantee service system so they have been adopted 2000 edition
ISO9001 international quality management system certificate.
Implements available for this series of tractor.We can supply Front end loader,Backhoe,Pallet fork,
Snow blower,Bulldozer,Posting hole digger,Rotary tiller,Share plow,Disc plow,Disc harrow,Seeder,
Mower, Sprayer,Trailer and so on.
More details,kindly contract me.
Firm and safe package to protect the tractors avoiding damage
Completed units package or SKD iron frame package in containers
