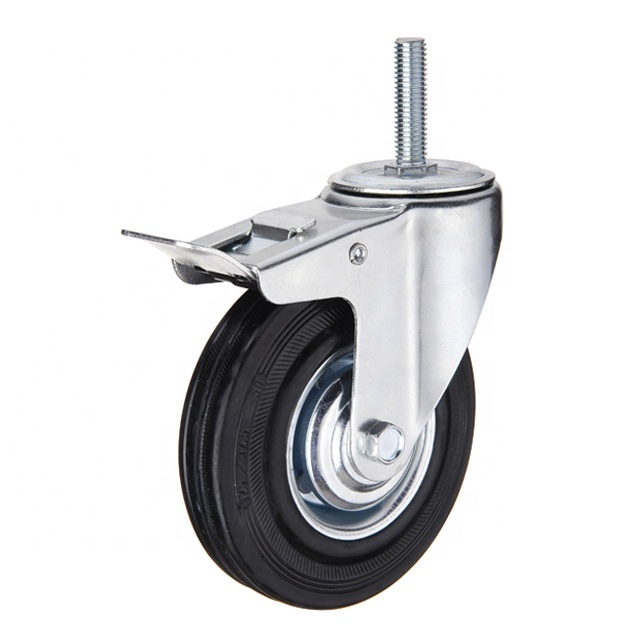

Rotary screw roller 75 80 85 100 125 150 160 200 250 mm solid natural rubber trolley wheel caster

Rotary screw roller 75 80 85 100 125 150 160 200 250 mm solid natural rubber trolley wheel caster

FOB Reference Price: Get Latest Price

≥200 Pieces

US $1.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Style:: Double brake, Swivel with brake

Place of Origin:: Guangdong, China

Wheel size:: 75*23mm to 250*50 mm

Wheel material:: rubber on steel rim, Resistant to most chemicals, solvents and water

Bearing Type:: Roller Bearing

Load capacity:: 40 kg to 180 kg(90lb to 400lb)

Ball raceway:: Double ballrace

Zinc plating:: RoHS standard, 24hr salt spary test passe

Application:: hand cart, mobile equipment

Bolt hole size:: 10*30mm /12*45mm/16*40mm

Quick Details

Material:: Rubber, Steel

Type:: Stem Casters

Model Number:: 11XXXTB caster wheel for industrial application

Warranty:: 1 year

Style:: Double brake, Swivel with brake

Place of Origin:: Guangdong, China

Wheel size:: 75*23mm to 250*50 mm

Wheel material:: rubber on steel rim, Resistant to most chemicals, solvents and water

Bearing Type:: Roller Bearing

Load capacity:: 40 kg to 180 kg(90lb to 400lb)

Ball raceway:: Double ballrace

Zinc plating:: RoHS standard, 24hr salt spary test passe

Application:: hand cart, mobile equipment

Bolt hole size:: 10*30mm /12*45mm/16*40mm

Rotary screw roller 75 80 85 100 125 150 160 200 250 mm solid natural rubber trolley wheel caster

Product Description

SPECIFICATIONS FOR PRODUCT

Housing:

Made of pressed steel, zinc plated,

Double ball-race swivel head,

24 hours salt spray test passed

Wheel:

Materials: Steel core black rubber

Hardness: 85±3 Shore A

Bearing type: Roller bearing

Temperature range: -5℃ to 50℃

Type	11 Series (Size: 75mm/80mm/85mm)
Artical NO.	11075TB	11080TB	11085TB
Wheel Diameter	75mm(3 inch)	80mm(3 inch)	85mm(3 inch)
Wheel Width	23mm	27mm	24mm
Mounting height	96mm	108mm	105mm
Bearing Type	Roller bearing	Roller bearing	Roller bearing
Offset	32mm	40mm	40mm
Threaded Stem Size	10*30mm	12*45mm	12*45mm
Wheel Material	Nature rubber + Steel	Nature rubber + Steel	Nature rubber + Steel
Housing Thickness	2.0mm	2.0mm	2.0mm
Loading Capacity	40KG	50KG	50KG

Type	11 Series (Size: 100mm/125mm/150mm)
Artical NO.	11100TB	11125TB	11150TB
Wheel Diameter	100mm(4 inch)	125mm(5 inch)	150mm(6 inch)
Wheel Width	27mm	34mm	40mm
Mounting height	128mm	152mm	180mm
Bearing Type	Roller bearing	Roller bearing	Roller bearing
Offset	37mm	35mm	43mm
Threaded Stem Size	12*45mm	12*45mm	16*40mm
Wheel Material	Nature rubber + Steel	Nature rubber + Steel	Nature rubber + Steel
Housing Thickness	2.5mm	2.5mm	2.75mm
Loading Capacity	60KG	100KG	110KG

Type	11 Series (Size: 160mm/200mm/250mm)
Artical NO.	11160TB	11200TB	11250TB
Wheel Diameter	160mm(6 inch)	200mm(8 inch)	250mm(10 inch)
Wheel Width	40mm	46mm	50mm
Mounting height	190mm	230mm	280mm
Bearing Type	Roller bearing	Roller bearing	Roller bearing
Offset	43mm	49mm	55mm
Threaded Stem Size	16*40mm	16*40mm	16*40mm
Wheel Material	Nature rubber + Steel	Nature rubber + Steel	Nature rubber + Steel
Housing Thickness	2.75mm	2.75mm	2.75mm
Loading Capacity	130KG	150KG	180KG
