Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape
Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape

Polyimide Pi Film with Silicone Glue Low Static Anti Static ESD Kaptons Polyimide Self Adhesive Tape

FOB Reference Price: Get Latest Price
≥1 Rolls
US $0.1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Design Printing:
No printing
Material:
Polyimide Film
Feature:
Heat-Resistant
Use:
MASKING
Place of Origin:
Guangdong, China
Brand Name:
XINHONG-TAPE
Model Number:
Refer to Model List Below
Thickness:
0.05 | 0.055 | 0.06 | 0.08 | Custom
Product Name:
ESD Polyimide Silicone Tape
Anti-static Level:
10^6 - 10^9
Color:
Amber
Thickness (mm):
0.05 | 0.055 | 0.06 | 0.08 | Custom
Width (mm):
From 1mm to 500mm | Custom
Length (m):
33 | 50 | 100 | 200 | 500 | Custom
Core Diameter (mm):
25 | 32 | 38 | 76 | Custom
Packing Term:
Label | Logo | Opp Bag | Custom
Temperature:
280°C
Sample:
Free Offer

Quick Details

Adhesive:
Silicone
Adhesive Side:
Single Sided
Adhesive Type:
Pressure Sensitive, Water Activated, Hot Melt
Design Printing:
No printing
Material:
Polyimide Film
Feature:
Heat-Resistant
Use:
MASKING
Place of Origin:
Guangdong, China
Brand Name:
XINHONG-TAPE
Model Number:
Refer to Model List Below
Thickness:
0.05 | 0.055 | 0.06 | 0.08 | Custom
Product Name:
ESD Polyimide Silicone Tape
Anti-static Level:
10^6 - 10^9
Color:
Amber
Thickness (mm):
0.05 | 0.055 | 0.06 | 0.08 | Custom
Width (mm):
From 1mm to 500mm | Custom
Length (m):
33 | 50 | 100 | 200 | 500 | Custom
Core Diameter (mm):
25 | 32 | 38 | 76 | Custom
Packing Term:
Label | Logo | Opp Bag | Custom
Temperature:
280°C
Sample:
Free Offer
Product Description

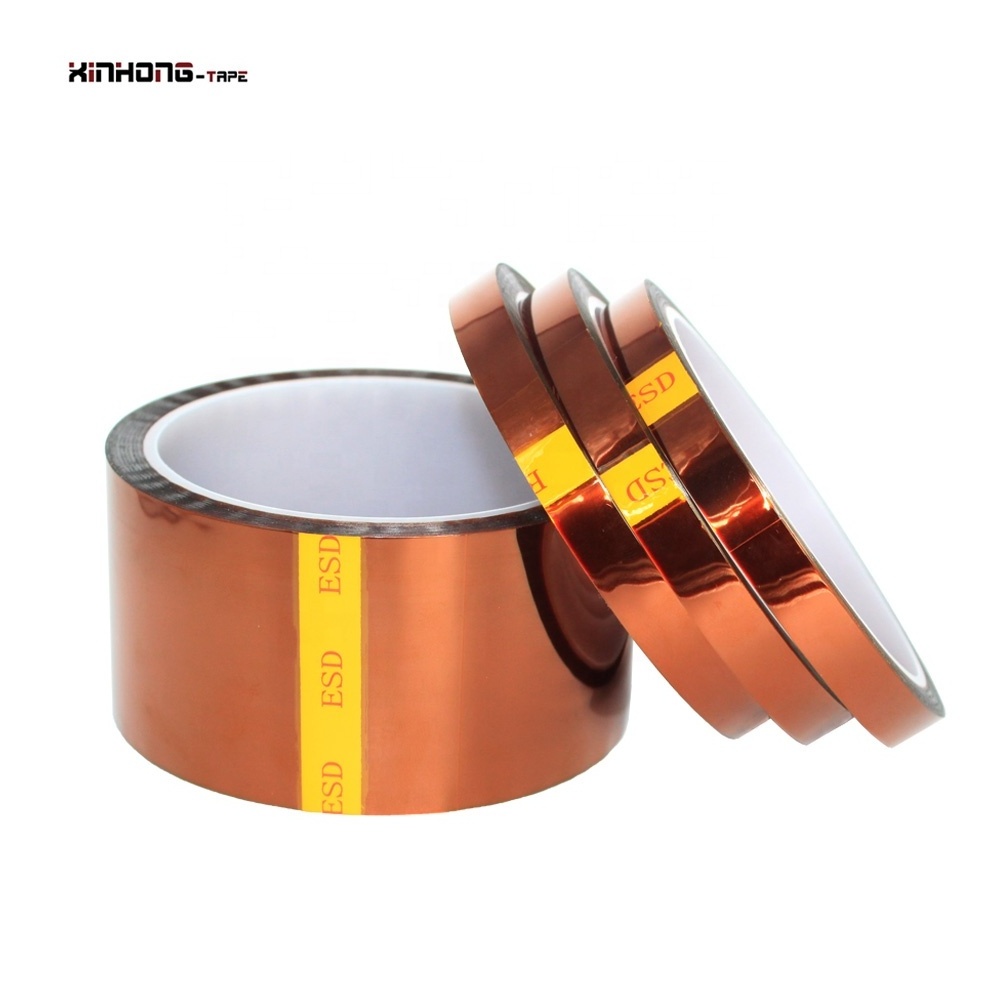

ESD Polyimide Silicone Tape
ESD polyimide tape is made of polyimide film with ESD additive to reduce the static charge single side coated with silicone glue (Antistatic Level: 10^6-10^9). It is used in applications as high as 280°C without glue and color residual. ESD polyimide tape is widely used in industries such as electronics, aerospace, automotive.

It is typically used in electronic manufacturing, assembly, and repair applications where static electricity can damage delicate components or affect the performance of electronic devices.


Product Model List:
Product Number:
Total Thickness：
Adhesion to Steel:
Anti-static Level：
XH-2550EKP
50 microns
4.5 N/25mm
10^6-10^9
XH-2555EKP
55 microns
5.2 N/25mm
10^6-10^9
XH-2560EKP
60 microns
6 N/25mm
10^6-10^9
XH-5080EKP
80 microns
5.5 N/25mm
10^6-10^9
Note: Custom size available.
Product Application:
1. Electronics manufacturing: ESD polyimide tape is commonly used in the manufacturing of electronic components and circuit boards. The tape is used to secure and protect delicate components and prevent static electricity from damaging the electronic devices.

2. Aerospace and defense: ESD polyimide tape is used in the aerospace and defense industries for various applications, including insulation and protection of wires and cables. The tape’s ability to resist high temperatures and chemicals makes it a suitable material for use in harsh environments.

3. Automotive industry: ESD polyimide tape is used in the automotive industry for applications such as protecting sensitive electronic components and wiring harnesses. The tape’s high temperature resistance and ESD properties make it an ideal material for use in engine compartments and other areas where high temperatures and static electricity can be an issue.

4. Medical devices: ESD polyimide tape is used in the manufacture of medical devices, where it is used to insulate and protect sensitive electronic components. The tape’s biocompatibility and resistance to sterilization make it a suitable material for use in medical applications.

5. Solar panels: ESD polyimide tape is used in the manufacture of solar panels, where it is used to protect and secure delicate electronic components. The tape’s high temperature resistance and ESD properties make it an ideal material for use in the extreme conditions of solar panel manufacturing.
OEM & ODM Service:
DONGGUAN CITY XINHONG ELECTRONIC TECHNOLOGY CO.,LTD
Why Choose Us
– Firstly, we are a professional manufacturer, with 16 years of OEM & ODM adhesive tape production experience, has a huge advantage in price and quality.

– Secondly, we have a large number of customers and fast transportation channels to ensure the timeliness of customers receiving goods.

– Finally, we can provide quality assurance services for each customer, if there is a quality problem, free return.
