simco YJ-160 pocket coil roll vending springs mechanical making coiling machine

simco YJ-160 pocket coil roll vending springs mechanical making coiling machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $487000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 17000

Product name:: Spring coiler

Power Supply:: 220/380/400/415/440V

Wire Diameter:: 8.0-16.0 mm

Max. Outer Diameter:: 250 mm

Feeding Speed:: 55 m/min

Max Feed Length:: Unlimited

Min Spring Index:: 3

After-sales Service Provided:: Spare parts

Package:: Wooden Box

Model:: YJ-160

Quick Details

Place of Origin:: Taiwan, China

Brand Name:: SIMCO

Dimension(L*W*H):: 4500 x 2200 x 2610

Weight (KG):: 17000

Product name:: Spring coiler

Power Supply:: 220/380/400/415/440V

Wire Diameter:: 8.0-16.0 mm

Max. Outer Diameter:: 250 mm

Feeding Speed:: 55 m/min

Max Feed Length:: Unlimited

Min Spring Index:: 3

After-sales Service Provided:: Spare parts

Package:: Wooden Box

Model:: YJ-160

Product Information

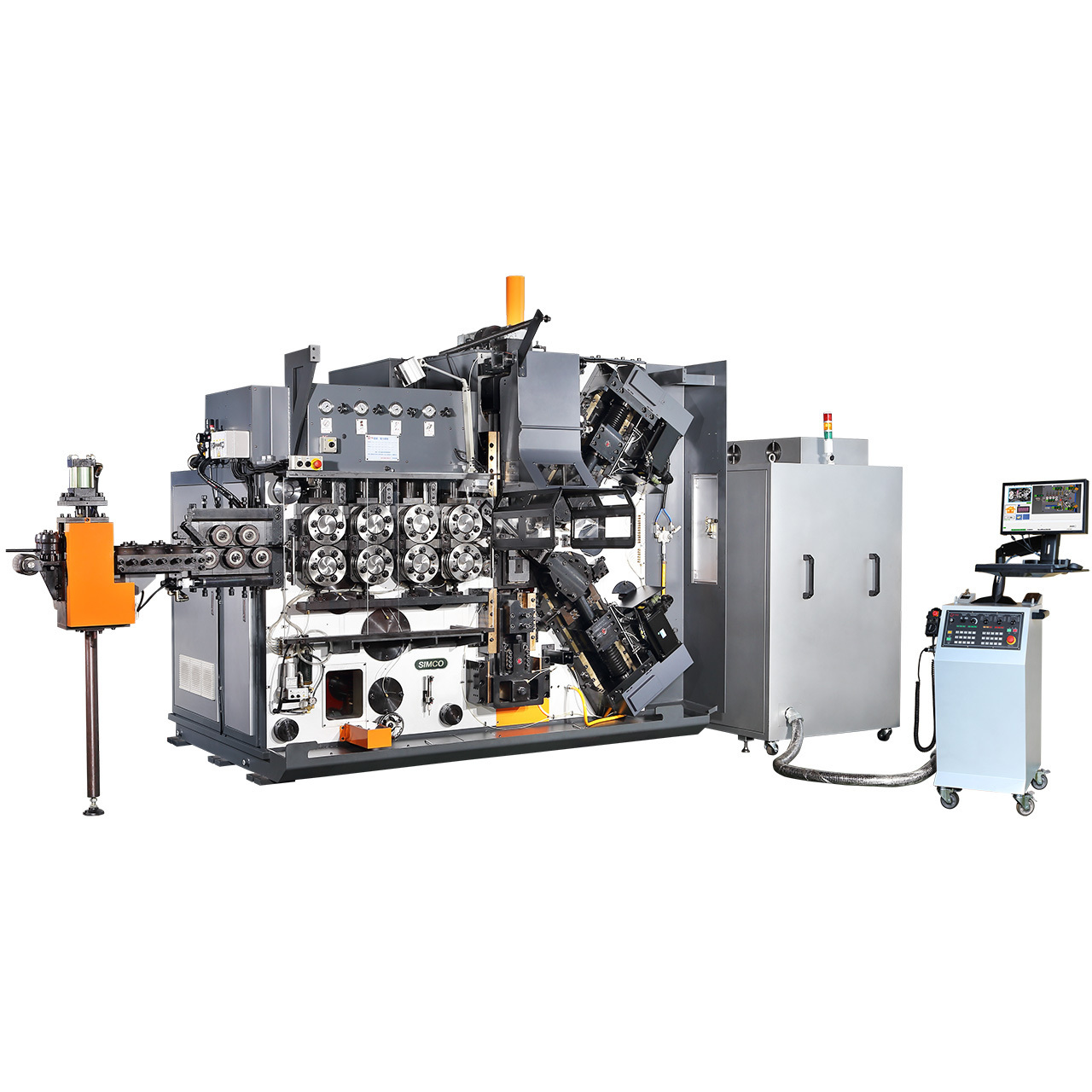

6-axis CNC Spring Coiling Machine

(Feeding, Pitch, Wedge, Cutting, Coiling x2 )

Wire Diameter: 8.0-16.0 mm

Max. Outer Diameter: 250 mm

Max. Feeding Length: Unlimited

Power: 220/380/400/415/440V 3-phrase

Dimension: 4500L x 2200W x 2610H

Color: gray

---------------------------------------------

Features: 1. Touch screen based on Windows OS 2. Auto edit program generator 3. Friendly graphical interface 4. 3D spring preview for programming 5. Jack-like hydraulic device 6. Hydraulic hammer System 7. Dual gear desgin for low/high speed 8. Hydraulic leading & Feeding 9. Japanese servo drive and motor 10. Taiwanese controller system 11. Available for swing cut, twist cut, fly cut 12. Available for producing torsion springs 13. Option for camera length detector 14. Option for composed wire guide 15. Option for auto first coil generator

What the machine can produce

Reference for Other Models

Model No.	YJ-120	YJ-160	YJ-200	YJ-250	YJ-360
Wire Diameter (mm)	5.0-12.0	8.0-16.0	10.0-12.0	13.0-25.0	16.0-32.0
Standard Axes	6	6	6	6	6
Max. Spring O.D. (mm)	150	250	250	300	350
Feed Speed (m/min)	76	55	55	65	55
Power Supply	220V, 3∅ (transformer 380/400/415/440V is available)
Machine Dimension (mm)	3600x2150x2300	4500x2200x2610	4800x2200x2610	5800x2300x2820	8100x2900x4000
Machine Weight (kg)	10000	17000	18000	25000	32000
