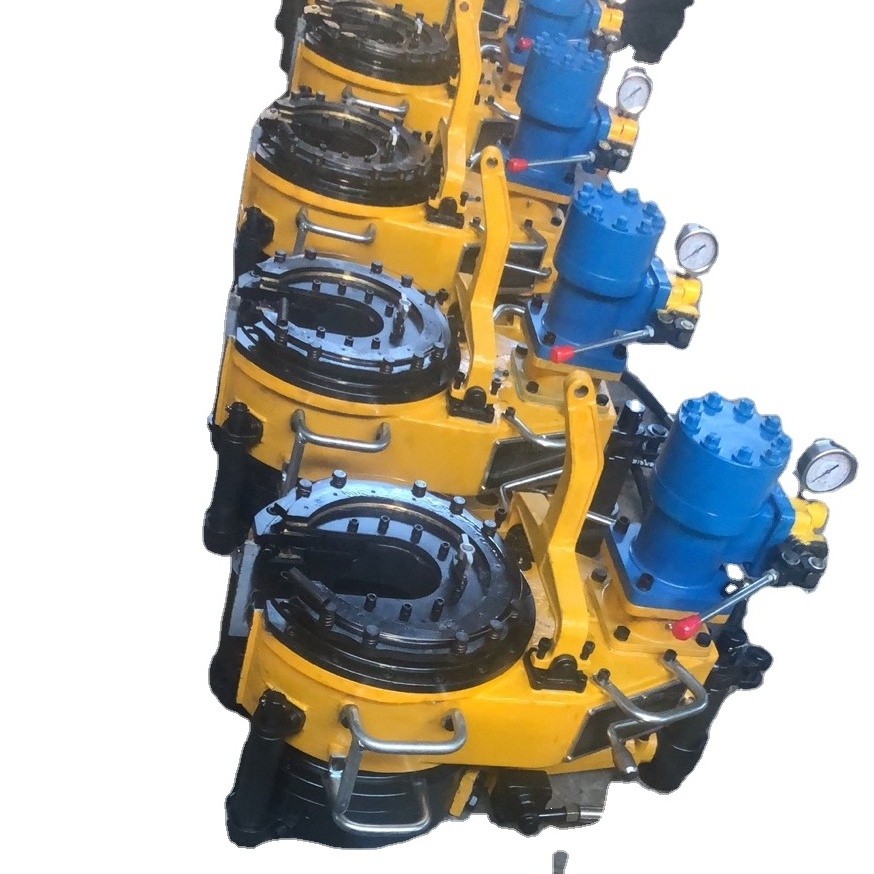

The series of hydraulic power tongs adopt inner cam rolling-up clamping mechanism with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubing sand small sizes of casing sand drill pipes in work over operation The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
oilfield
-
Features:
-
long live
-
Production Capacity:
-
5000/month
-
Dimension(L*W*H):
-
650*430*550MM
-
Weight (KG):
-
348
-
Applicable range main tong:
-
60-89mm
-
Applicable range backup tong:
-
60-114mm
-
Hi-gear rated torque:
-
1100N.m
-
Low-gear rated torque:
-
3300N.m
-
Rated Speed Hi-gear:
-
90 rpm
-
Rated Speed Low-gear:
-
30 rpm
-
Rated pressure:
-
10MPa
-
Max oil supply:
-
80L/Min
-
Model:
-
XQ89/3YB 3YC
-
Weight (with backup tong):
-
348kg
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Beyond or OEM
-
Model Number:
-
XQ89/3YB
-
Application:
-
oilfield
-
Features:
-
long live
-
Production Capacity:
-
5000/month
-
Dimension(L*W*H):
-
650*430*550MM
-
Weight (KG):
-
348
-
Applicable range main tong:
-
60-89mm
-
Applicable range backup tong:
-
60-114mm
-
Hi-gear rated torque:
-
1100N.m
-
Low-gear rated torque:
-
3300N.m
-
Rated Speed Hi-gear:
-
90 rpm
-
Rated Speed Low-gear:
-
30 rpm
-
Rated pressure:
-
10MPa
-
Max oil supply:
-
80L/Min
-
Model:
-
XQ89/3YB 3YC
-
Weight (with backup tong):
-
348kg
Product Description
API 7K XQ 28-1.8Y Sucker Rod Power Tong for Workover Service
Specification
|
Model
|
XQ89/3YB 3YC
|
XQ114/6YB
|
XQ140/12Y
|
XQ140/12Y-T
|
|
Applicable range main tong
|
60-89mm
|
73-114mm
|
73-140mm
|
48-140
|
|
Applicable range backup tong
|
60-114mm
|
89-141.5mm
|
89-156mm
|
60-156
|
|
Hi-gear rated torque
|
1100 N.m
|
1500 N.m
|
2600 N.m
|
2600 N.m
|
|
Lo-gear rated torque
|
3300 N.m
|
6000 N.m
|
12000 N.m
|
12000 N.m
|
|
Rated Speed
|
90/30rpm
|
85/20rpm
|
72/14rpm
|
72/14rpm
|
|
Rated pressure
|
10MPa
|
11MPa
|
12MPa
|
12MPa
|
|
Max oil supply
|
80L/min
|
100L/min
|
120L/min
|
120L/min
|
|
Size
|
650*430*550mm
|
750*500*600mm
|
1024*582*539mm
|
1050*620*900mm
|
|
Weight with backup tong
|
348kg
|
485kg
|
1060kg
|
1060kg
|
