Quick Details
-
Touch Points:
-
10 Points
-
LCD Type:
-
Tft Lcd Touch Screen Module
-
Brightness::
-
Adjustable
-
Viewing Angle::
-
85/85/85/85
-
Resolution::
-
1280*1080
-
Brightness:
-
500cd
-
Type:
-
TFT
-
Display Size:
-
15.6
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZEELANG
-
Interface::
-
LVDS
-
Touch Points:
-
10 Points
-
LCD Type:
-
Tft Lcd Touch Screen Module
-
Brightness::
-
Adjustable
-
Viewing Angle::
-
85/85/85/85
-
Resolution::
-
1280*1080
-
Brightness:
-
500cd
-
Type:
-
TFT
-
Display Size:
-
15.6
Product Description

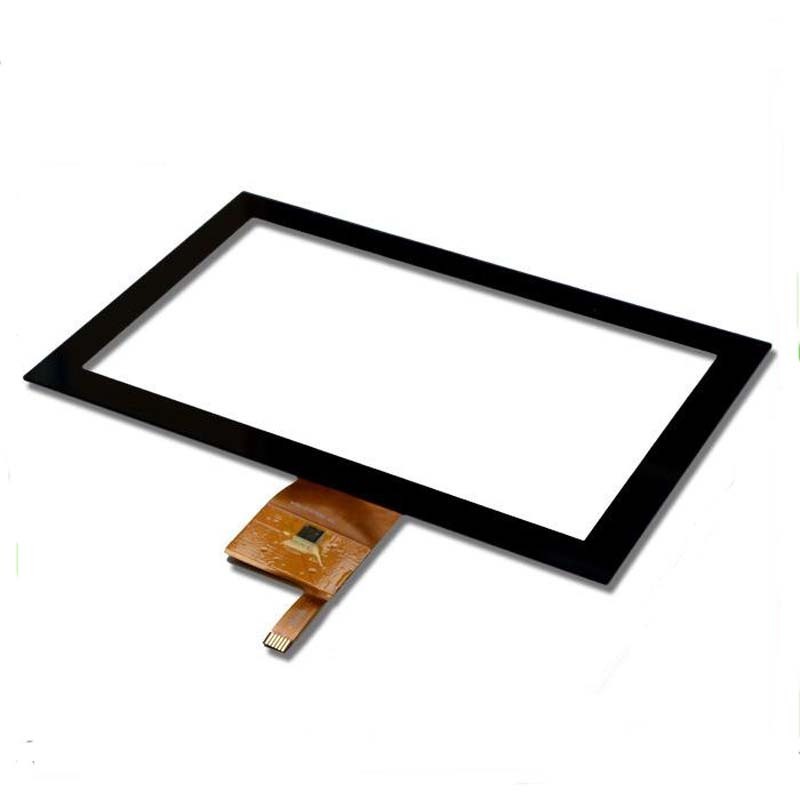

Glass Touch Ilitek Controller 15.6 Inch Usb Pcap Capacitive Touch Screen Panels
You can choose :
1.15.6inch TFT touch screen panels
2.Screen size , Logo , printing colors ,glass material , shapes
3.Anti glare，Anti reflective， magic mirror ,touch with water,gloves touch
Main Features Of 15.6inch capactive touch screen
* Touch Panel : 15.6inch ,other size are welcome customerized
* 1280*1080 resolution, clear display
* Support USB port
* Individual customization of size, style, logo print, AG, AR, Mirror glass
* Provide underlying driver technical support
* Long term stable production and guaranteed supply
|
Type
|
15.6" capactive touch screen panel
|
Window VA Siz
|
15.6 screen
|
|
|||
|
Outline Dimension
|
L:800*W:600*T：3.95 mm
|
Structure
|
G+G
|
|
|||
|
Materials
|
Cover Lens : AR tempered glass with black frame ,3mm SCA :0.25mm ITO Glass: 0.7MM , 80-120Ω
|
|
|
|
|||
|
Interface
|
COB USB
|
IC Board
|
ILI2510
|
|
|||
|
Touch Points
|
10 Points
|
Input Mode
|
Finger
|
|
|||
|
Working Voltage
|
5V
|
Working Current
|
90mA
|
|
|||
|
Input Accuracy
|
Middle: ±2.0MM
Edges:±2.5MM
|
Response time
|
T< 60ms
|
|
|||
|
Supported Os
|
Windows, Linux, Android, Mac, QNX
|
|
|
|
|||
|
Operating Temperature
|
-20～ +60C
|
Storage Temperature
|
-30～ +70C
|
|
|||
