Quick Details
-
Brand Name:
-
Zhongchuang
-
Model Number:
-
ZCNZ-W15000N.m
-
Product name:
-
15000Nm Material Torsion Testing Machine
-
Test torque:
-
15000Nm
-
Torque test range:
-
1%-100%FS
-
Power supply:
-
Custom
-
Min reading value of torque(N.m):
-
0.01Nm
-
Test resolution of torque:
-
1/±300000
-
Relative error of torque indicated value:
-
≤±1.0% (both forward and inversion directions)
-
Relative error of torque repeatability:
-
≤1.0%(both forward inversion directions)
-
Angle test range:
-
0-10000°
-
Min reading value of angle:
-
0.01°
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongchuang
-
Model Number:
-
ZCNZ-W15000N.m
-
Product name:
-
15000Nm Material Torsion Testing Machine
-
Test torque:
-
15000Nm
-
Torque test range:
-
1%-100%FS
-
Power supply:
-
Custom
-
Min reading value of torque(N.m):
-
0.01Nm
-
Test resolution of torque:
-
1/±300000
-
Relative error of torque indicated value:
-
≤±1.0% (both forward and inversion directions)
-
Relative error of torque repeatability:
-
≤1.0%(both forward inversion directions)
-
Angle test range:
-
0-10000°
-
Min reading value of angle:
-
0.01°

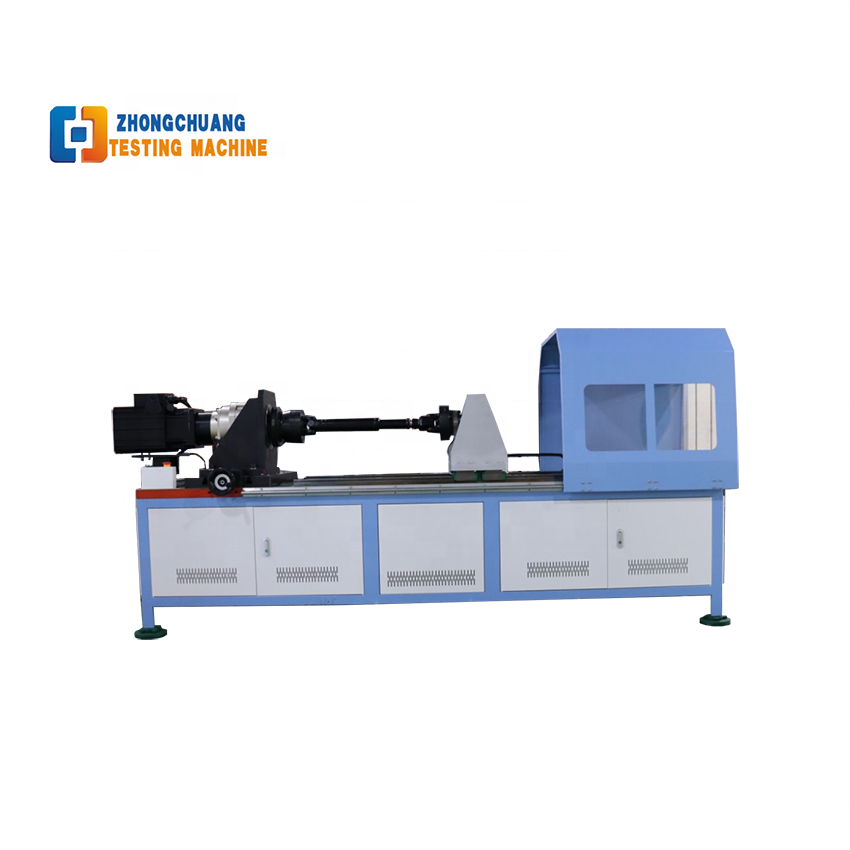

Torsional Stiffness Testing Equipment / Torsion fatigue torque life test machine
Product Description
This series of torsion testing machine is mainly used for the torsional mechanical performance test of automobile torsion bar, drive axle assembly, half shaft, transmission shaft, drill pipe, large bolts, universal joint, camshaft, components and other parts.
Note:
Various torsion testing machines can be customized according to customer samples.
Specification
|
Main specification(N.m)
|
15000N.m
|
|
Torque test range
|
1%-100%FS
|
|
Min reading value of torque(N.m)
|
0.01
|
|
Test resolution of torque
|
1/±300000
|
|
Relative error of torque indicating value
|
≤±1.0% (both forward and inversion directions)
|
|
Relative error of torque repeatability
|
≤1.0%(both forward inversion directions)
|
|
Angle test range
|
0-10000°
|
|
Relative error of angle indicating value
|
≤±1% (both forward inversion directions)
|
|
Min reading value of angle
|
0.01°
|
|
Test speed
|
0.5-720°/min
|
|
Power supply
|
AC 220V±10%,50Hz
|
*Due to different product parameters, the price is different, if you need a specific price, please contact customer service.
More Products
Packing & Delivery
Wooden packaging for export
Such a careful packaging
Eliminate all possible problem caused by shipping
