Quick Details
-
Place of Origin:
-
Chongqing, China
-
Transom Height mm(in):
-
450(17.7)/ 571(22.50)
-
Dispacement(cc):
-
849
-
Propeller specification:
-
13 1/2*15"
-
Max. Output(kw(hp)@r/m):
-
44.1(60)@5000
-
Control System:
-
Tiller/ Remote Control
-
Starting System:
-
Electrical /Manual
-
Gear Ratio:
-
2.0(26/13)
-
Trim and Tilt System:
-
Manual tilt/Power trim
-
Fuel Tank Volume(L):
-
24
Quick Details
-
Dimensions (L x W x H) (mm):
-
/
-
Brand Name:
-
BOCHI
-
Model Number:
-
2 STROKE
-
Place of Origin:
-
Chongqing, China
-
Transom Height mm(in):
-
450(17.7)/ 571(22.50)
-
Dispacement(cc):
-
849
-
Propeller specification:
-
13 1/2*15"
-
Max. Output(kw(hp)@r/m):
-
44.1(60)@5000
-
Control System:
-
Tiller/ Remote Control
-
Starting System:
-
Electrical /Manual
-
Gear Ratio:
-
2.0(26/13)
-
Trim and Tilt System:
-
Manual tilt/Power trim
-
Fuel Tank Volume(L):
-
24

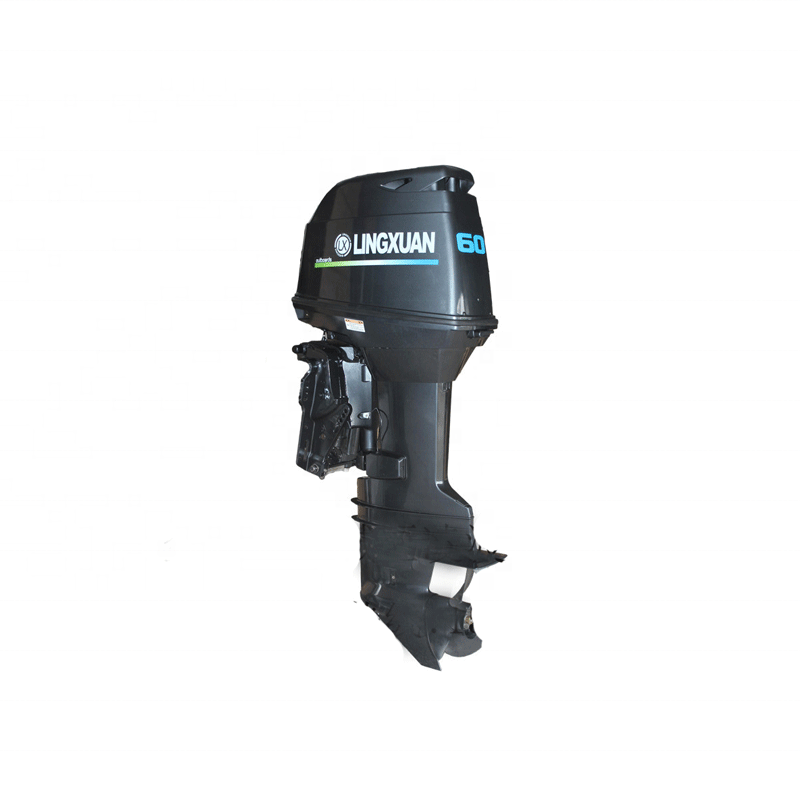

2 stroke 60 hp Outboard Motor
1.The outboard motor is fit for fiberglass boat, inflatable boat, aluminum boat and other sail boat,fishing boat.
2.CDI ignition system makes the outboard motor start easier
3. some parts for free with every motor
4.Long term reliability
5.Durable , High performance, reasonable fuel consumption , easy for service
Cetification: CE , ISO
Note: Please use it as the operating manual, especially if you never use a outboard motor before.
| Parameter | Measuring unit | T60BMS | T60BML | T60BWS | T60BWL | T60BWS-R | T60BWL-R |
| Length | mm(in.) | 1337(52.6) | 1337(52.6) | 726(28.6) | |||
| Width | mm(in.) | 398(15.7) | 398(15.7) | 374(14.7) | |||
| Height | mm(in.) | 1422(56.0) | 1548(60.9) | 1422(56.0) | 1548(60.9) | 1422(56.0) | 1548(60.9) |
| Transom height | mm(in.) | 450(17.7) | 571(22.50) | 450(17.7) | 571(22.50) | 450(17.7) | 571(22.50) |
| Net Weight | kgs | 96 | 99 | 99 | 102 | 98 | 101 |
| Full throttle operating range | r/min | 4500~5500 | |||||
| Maximum output | kw(hp)@r/m | 44.1(60)@5000 | |||||
| Idling speed) | r/min | 750~850 | |||||
| Engine type | 2 Stroke | ||||||
| Cylinder quanitity | 3 | ||||||
| Displacement | cm3 | 849 | |||||
| Bore×Stroke | mm(in.) | 72*69.5 | |||||
| Ignition System | CDI | ||||||
| Control system | Tiller | Remote Control | |||||
| Starting System | Manual | Electrical /Manual | |||||
| Gear positions | Forward-neutral-reverse | ||||||
| Gear ratio | 2.0(26/13) | ||||||
| Trim and tilt system | Power trim/Hydro trim | ||||||
| Fuel tank volume | L | External 24 | |||||
| Maximum fuel | L/h | 25.5 | |||||
| Engine fuel ratio | 50:1 | ||||||
| Gear oil | ml | 610 | |||||
| Propeller specification | in | 13 1/2*15" | |||||
