Quick Details
-
Application:
-
laboratory
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
1300*980*1510mm (LWH)
-
Weight:
-
120 KG
-
Power:
-
A220V 50Hz, single-phase, A220V 50Hz, single-phase
-
Model Number:
-
AT248
-
brand:
-
Anytester
-
Reed width:
-
12inches (16, 20inch optional)
-
Heddle (on main machine:
-
20000pcs
-
Reed (on main machine):
-
1pc
-
Shedding:
-
Dobby shedding, pneumatic control
-
Beating-up:
-
Motor control
-
Air pressure:
-
0.45~0.8Mpa
-
Air consumption:
-
Max. 200L/min
Quick Details
-
Type:
-
sample Loom
-
Production Capacity:
-
500/year
-
Marketing Type:
-
Hot Product 2021
-
Application:
-
laboratory
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Dimension(L*W*H):
-
1300*980*1510mm (LWH)
-
Weight:
-
120 KG
-
Power:
-
A220V 50Hz, single-phase, A220V 50Hz, single-phase
-
Model Number:
-
AT248
-
brand:
-
Anytester
-
Reed width:
-
12inches (16, 20inch optional)
-
Heddle (on main machine:
-
20000pcs
-
Reed (on main machine):
-
1pc
-
Shedding:
-
Dobby shedding, pneumatic control
-
Beating-up:
-
Motor control
-
Air pressure:
-
0.45~0.8Mpa
-
Air consumption:
-
Max. 200L/min
Product Description

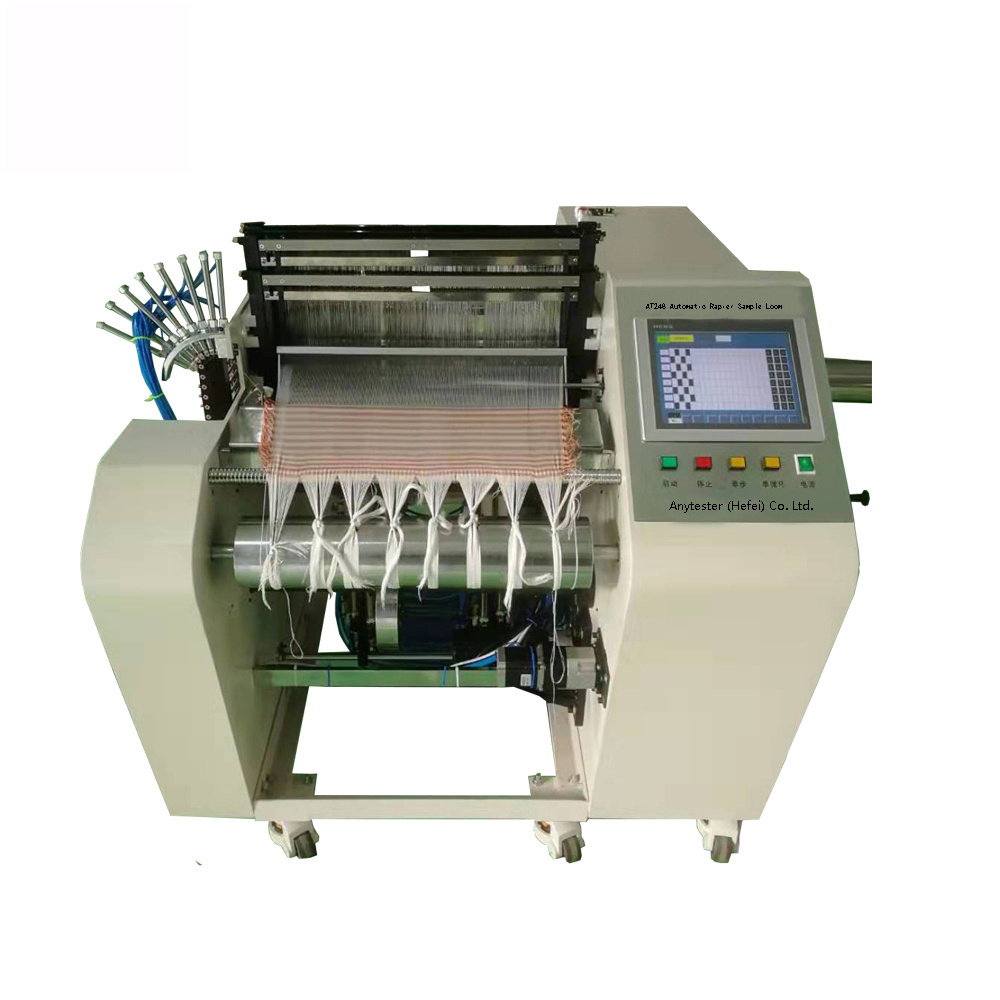

AT248 Automatic Rapier Sample Loom
is used for sample weaving of all kinds of fabrics, such as cotton, hair, jute, silk, chemical fiber, blending, etc. It consists of pneumatic shedding, rapier weft insertion, mechanical let-off, mechanical beating-up, mechanical take-up and pneumatic selection of weft yarns. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Specification
|
Model
|
AT248
|
|
Reed width
|
12inches (16, 20, and 24inch, optional)
|
|
Yarn linear density range
|
5~500tex
|
|
Weft density
|
30~45weft/min, selectable
|
|
No. of heald frame
|
4~20
|
|
Color selection
|
8 color, automatic pneumatic control
|
|
Let-off
|
Active electronic control
|
|
Take-up
|
Motor control
|
|
Shedding
|
Dobby shedding, pneumatic control
|
|
Beating-up
|
Motor control
|
|
Air pressure
|
0.45~0.8Mpa
|
|
Air consumption
|
Max. 200L/min
|
|
Power
|
A220V 50Hz, single-phase
|
Details & Features
★
PLC control touch screen with 2G memory capacity to store designed patterns;
★
Designable and editable patterns and USB interface to share designed patters;
★
Mechanical let-off, beating-up and take-up and pneumatic shedding and selection of weft yarns;
★
Pneumatic Dobby shedding mechanism to avoid the disadvantage of easy to wear for traditional peg mechanical structure;
★
Rapier weft insertion, suitable for various yarns, such as, cotton, terylene/cotton, wool chemical fiber and other fabrics;
★
Heald frames up to 20pcs, easy to mount and dismount;
★
Automatic pneumatic selection of weft yarns up to 8 colors;
★
Professional software for designing or editing patterns;
Our Company
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
|
Packaging
|
|
|
|
Dimensions
|
1300*980*1510mm (LWH)
|
|
|
Weight
|
Approx. 200kg
|
|
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
