Quick Details
-
Model Number:
-
LFP6V4.5AH
-
Battery Size:
-
6v4.5ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.4kg
-
The charging ratio:
-
1.2A
-
The discharge rate:
-
≤3.5% per month at 25℃
-
Battery Type:
-
Lifepo4/lithium Battery
-
Capacity:
-
4.5ah
-
Nominal Voltage:
-
6V
-
Max. Discharge Current:
-
1.2A
-
Design Life (floating charge):
-
15 years
-
Intermal Resistance:
-
45≤mΩ
-
Usage:
-
UPS
-
Cell Cycle life:
-
>3000 Cycles
-
OEM/ODM:
-
Welocome
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, Electric Bicycles/Scooters, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
Maxworld
-
Model Number:
-
LFP6V4.5AH
-
Battery Size:
-
6v4.5ah
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
0.4kg
-
The charging ratio:
-
1.2A
-
The discharge rate:
-
≤3.5% per month at 25℃
-
Battery Type:
-
Lifepo4/lithium Battery
-
Capacity:
-
4.5ah
-
Nominal Voltage:
-
6V
-
Max. Discharge Current:
-
1.2A
-
Design Life (floating charge):
-
15 years
-
Intermal Resistance:
-
45≤mΩ
-
Usage:
-
UPS
-
Cell Cycle life:
-
>3000 Cycles
-
OEM/ODM:
-
Welocome
Title goes here.
Product Overview

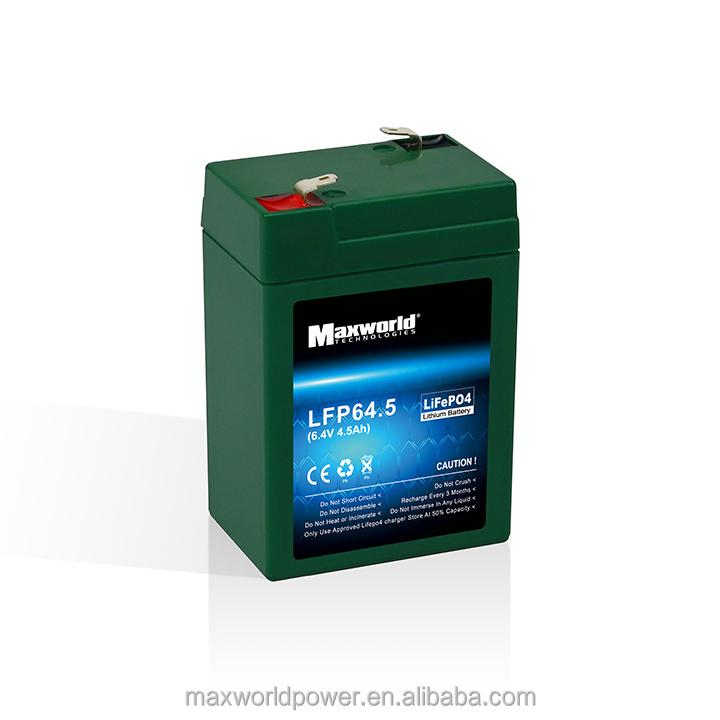

Rechargeable Lithium Iron Phosphate 6v 4.5ah lifepo4 Solar Panel Lifepo4 Replace 6V Battery for ups/Energy storage battery
Rechargeable Lithium Iron Phosphate 6v 4.5ah lifepo4 Solar Panel Lifepo4 Replace 6V Battery for ups/Energy storage battery
Lithium Iron Phosphate (LiFePO4) Battery
Maxworld Power Battery Bank series are Lithium Iron Phosphate (LiFePO4) Battery with compatible SLA (Sealed Lead Acid) battery housing. The plug & play features make it very convenient for many applications, especially when it is applied for direct SLA replacement. The series comes with common voltage and capacity variety for wide range of power and storage requirements.
FEATURES AT A GLANCE
Feature：
●
Using the technology of lithium iron phosphate cell, superior safety,thousands of cycles,100%DOD，under normal conditions
●
Built-in automatic protection for over-charge, over discharge, over current and over temperature
●
Maintenance free
●
Internal cell balancing
●
Lighter weight: About 40% ~50% of the weight of a comparable lead acid battery.
●
Can be charged using most standard lead-acid charges (set)
●
Wider temperature range:-20℃~60℃
●
Support for serial application expansion (up to 51.2V)
PRODUCT SPECIFICATIONS
|
Electrical Characteristics
|
Model
|
LFP6V4.5AH
|
|
Electrical Characteristics
|
Nominal Voltage
|
12.8V
|
|
1
|
Nominal Capacity
|
65h@0.2C
|
|
2
|
Enegry
|
1152Wh
|
|
3
|
Internal Resistance
|
45≤mΩ
|
|
4
|
Cycle Life
|
>3000 Cycles @ 0.2C Charge/Discharge at 100%DOD,End of Life 70% Capacity.
|
|
Standard Charge
|
Max.Charge Current
|
1.2A
|
|
Standard Discharge
|
Max.Continuous Current
|
12A
|
|
Environmental
|
Charge Temperature
|
0℃ to 45℃(32℉ to 113℉) @60+25% Relative Humidity
|
|
|
Disxcharge Temperature
|
-20℃ to 60℃(-4℉ to 140°F) @60+25% Relative Humidity
|
|
Mechanical
|
Dimension(L*W*H*TH)
|
70*47*102*105mm
|
|
8
|
Weight
|
Approx.0.4Kg
|
|
|
Terminal
|
P2 / F2
|
PRODUCT CONFIGURATION
