Quick Details
-
Place of Origin:
-
China
-
Color:
-
Customized Option
-
Logo Printing:
-
OEM Service
-
Usage:
-
Metal Drilling Milling
-
Table size:
-
800*240mm
-
Spindle Taper:
-
MT3 or R8
-
Face Milling Capacity:
-
63mm
-
End Milling Capacity:
-
20mm
-
Spindle travel:
-
130mm
-
Power:
-
750
Quick Details
-
type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
32 mm
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
China
-
Color:
-
Customized Option
-
Logo Printing:
-
OEM Service
-
Usage:
-
Metal Drilling Milling
-
Table size:
-
800*240mm
-
Spindle Taper:
-
MT3 or R8
-
Face Milling Capacity:
-
63mm
-
End Milling Capacity:
-
20mm
-
Spindle travel:
-
130mm
-
Power:
-
750
Features
Gear driven and round colum.
Milling, drilling, tapping, boring and reaming.
Headstock swivel 360º horizontally.
Micro feed precision.
Adjusable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
|

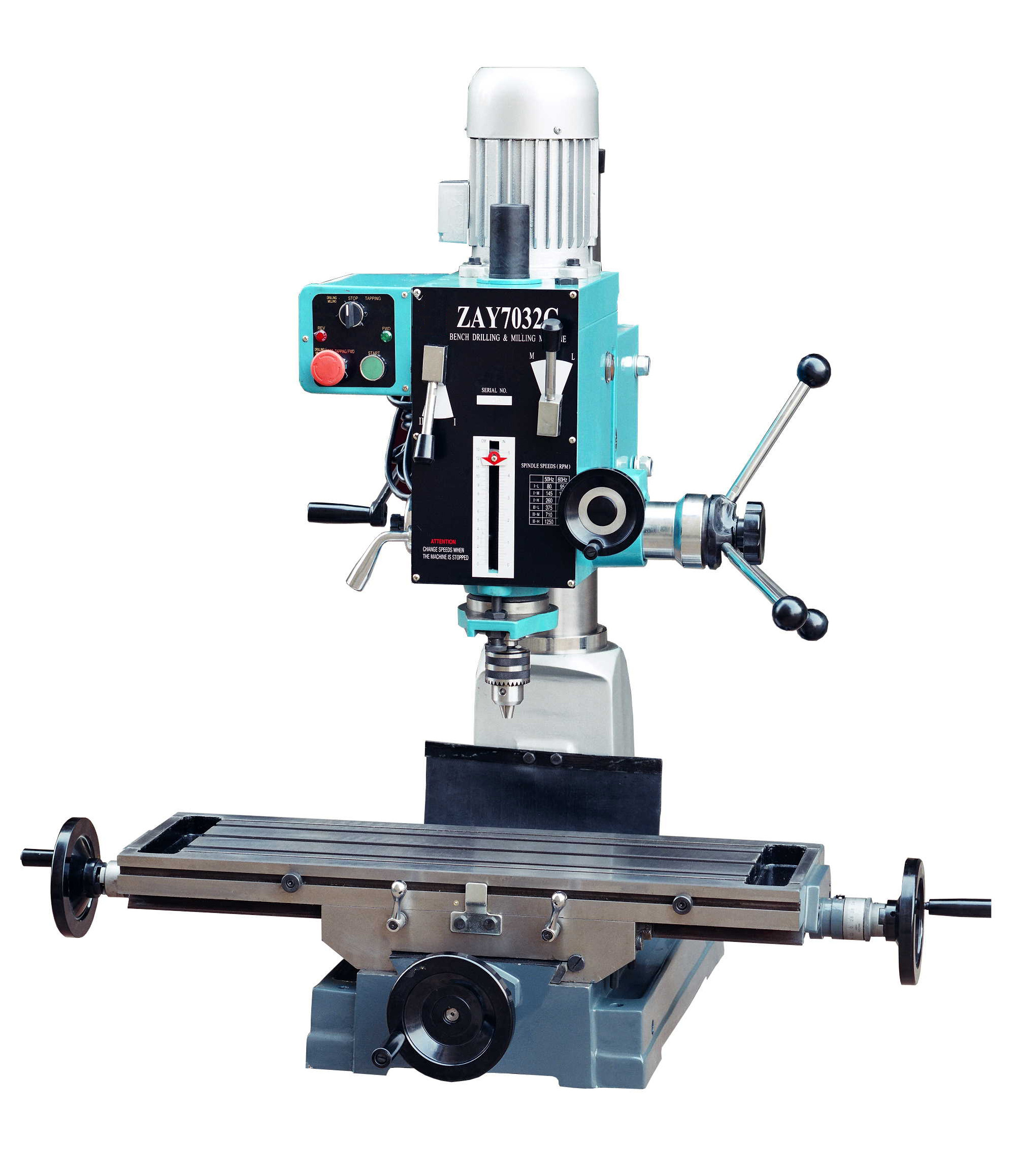

Specifications for ZAY7032G
|
|
|
|
Maximum Drilling Capacity
|
32mm
|
|
|
Maximum Face Milling Capacity
|
63mm
|
|
|
Maximum Ending Milling Capacity
|
20mm
|
|
|
Maximum Distance From Spindle Nose To Table
|
440mm
|
|
|
Minimum Distance From Spindle To Column
|
273mm
|
|
|
Spindle Travel
|
130mm
|
|
|
Spindle Taper
|
MT3/R8
|
|
|
Step of Spindle Speed
|
6
|
|
|
Range Of Spindle Speed(50HZ/60HZ)
|
80-1250rmp / 95-1500rmp
|
|
|
Swivel angle of headstock (Horizontally/Perpendiculary)
|
360º/±90º
|
|
|
Table Size
|
800×240mm
|
|
|
Forward And Backward Travel Of Table
|
175mm
|
|
|
Left And Right Travel Of Table
|
500mm
|
|
|
Motor Power
|
0.75KW
|
|
|
Voltage/Frequency
|
As customer's requirement
|
|
|
Net Weight/Gross weight
|
315kgs/365kgs
|
|
|
Packing Size
|
770×880×1160mm
|
|
Standard Accessories:
● Tie rod
● Wedge
● Allen wrenches
● Tool box & tools
Optional Accessories:
● Drill chuck ●Milling cutter holder ●MIll chuck ●Power feed attachment ●Auto-tapping electrical ●Paraller vise ●Working lamp ●Coolant system ●Machine stand and chip tray ●Clanping kits(58pcs) ●Rotary table ●2-Axis DRO,3-Axis DRO
