Quick Details
-
Number of Row:
-
Single row
-
Bore Size:
-
1 - 12 mm
-
Brand Name:
-
EDINH
-
Model Number:
-
NAX1223Z
-
Place of Origin:
-
Shandong, China
-
Product name:
-
needle roller bearing
-
Material:
-
Chrome Steel
-
Application:
-
Remote-controlled Cars
-
Certificate:
-
ISO9001:2008
-
Lubrication:
-
Oil Grease
-
Cage:
-
Steel Plate
-
Package:
-
Plastic Bag+cox+carton
-
Sample:
-
Supply
-
depth:
-
23mm
-
weight:
-
0.05kg
Quick Details
-
Applicable Industries:
-
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
-
Precision Rating:
-
P6
-
Seals Type:
-
perforation
-
Number of Row:
-
Single row
-
Bore Size:
-
1 - 12 mm
-
Brand Name:
-
EDINH
-
Model Number:
-
NAX1223Z
-
Place of Origin:
-
Shandong, China
-
Product name:
-
needle roller bearing
-
Material:
-
Chrome Steel
-
Application:
-
Remote-controlled Cars
-
Certificate:
-
ISO9001:2008
-
Lubrication:
-
Oil Grease
-
Cage:
-
Steel Plate
-
Package:
-
Plastic Bag+cox+carton
-
Sample:
-
Supply
-
depth:
-
23mm
-
weight:
-
0.05kg

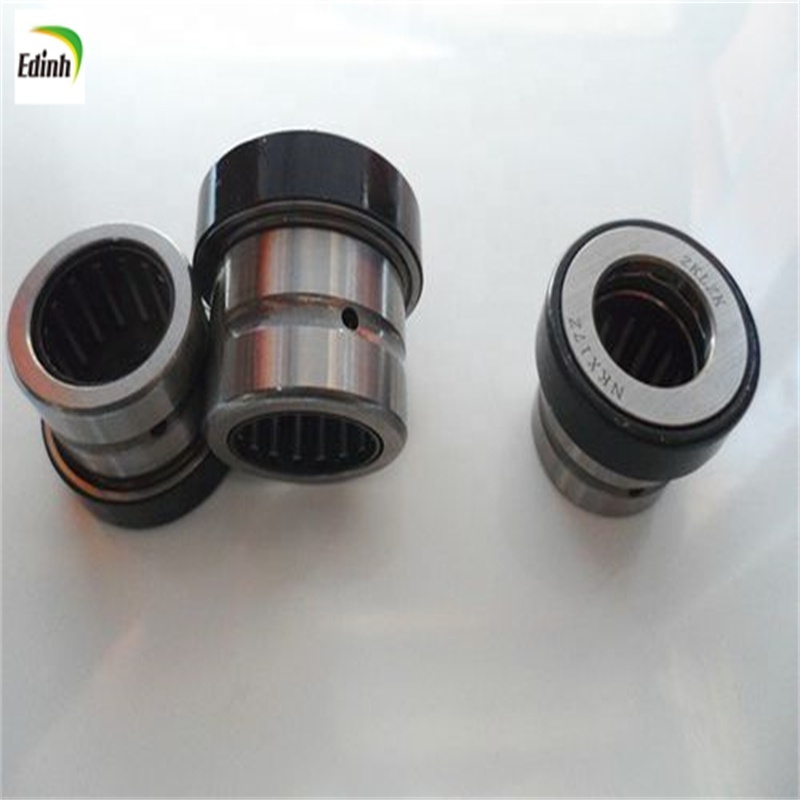

Japan IKO NAX1023 NAX1223Z NAX1523 NAX1725 NAX2030Z Composite combination needle roller bearings
Product Description
Needle roller bearings
:
Needle bearings are cylindrical rollers with roller bearings. The rollers are thin and long relative to their diameter. This is called a needle bearing. Although it has a small cross-section, it has a high load carrying capacity and is equipped with slender
needle bearing (roller diameter D <5mm, L / D> 2.5, L is the length of the roller), so the diameter The radial structure is compact, and its diameter size and load capacity are the same as other types of bearings, the smallest diameter, especially for supporting structures with limited radial installation dimensions.
According to different occasions, bearings without inner ring or needle and cage assembly can be used. When the surface of the journal bearing surface and the surface of the bearing seat hole directly match the outer rolling surface of the bearing, the load capacity and operation under the same performance can be ensured.
size information
|
Model Number
|
d（ mm ）
|
D（ mm ）
|
B（ mm ）
|
Cr（ kN ）
|
Cor（ kN ）
|
weight（ kg ）
|
|
NAX1023Z
|
10
|
24
|
23
|
10
|
11.1
|
0.04
|
|
NAX1223Z
|
12
|
26
|
23
|
9.67
|
11.1
|
0.0455
|
|
NAX1523Z
|
15
|
28
|
23
|
9.93
|
12.2
|
0.0485
|
|
NAX1725Z
|
17
|
30
|
25
|
10.8
|
14.5
|
0.056
|
|
NAX2030Z
|
20
|
35
|
30
|
14.2
|
19.7
|
0.089
|
