Quick Details
-
Model Number:
-
GM211
-
Material:
-
ABS
-
Item Weight:
-
210g
-
Product name:
-

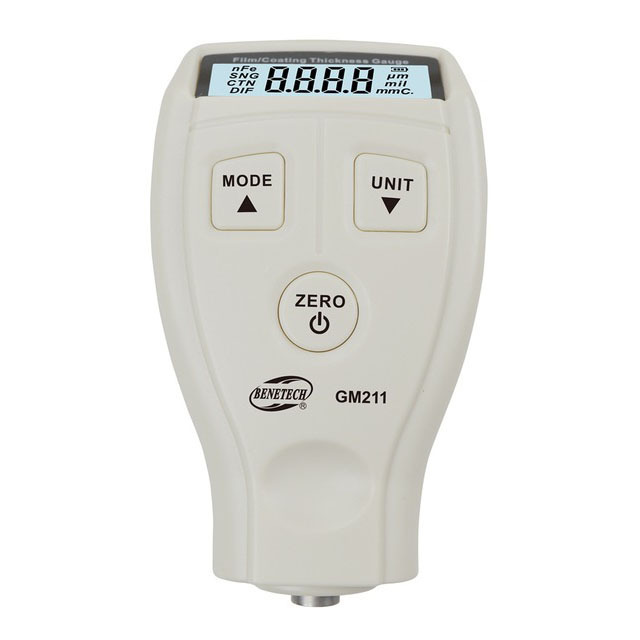

GM211 coating and paint thickness gauge
-
Measuring range:
-
0~1500μm/0~59mil/0~1.5m
-
Resolution:
-
0.1μm/1μm/0.1mil
-
Measurement error::
-
±(3%H+1μm)
-
Min.thickness of substrate:
-
0.5mm
-
Power supply:
-
2*1.5V AAA battery
-
Weight:
-
63.98g (without battery)
-
Dimension:
-
65*31*108mm
-
Min.diameter of substrate:
-
12mm
-
Operating temperature range:
-
0~40°c
Quick Details
-
Warranty:
-
No Warranty
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Generic
-
Model Number:
-
GM211
-
Material:
-
ABS
-
Item Weight:
-
210g
-
Product name:
-
GM211 coating and paint thickness gauge
-
Measuring range:
-
0~1500μm/0~59mil/0~1.5m
-
Resolution:
-
0.1μm/1μm/0.1mil
-
Measurement error::
-
±(3%H+1μm)
-
Min.thickness of substrate:
-
0.5mm
-
Power supply:
-
2*1.5V AAA battery
-
Weight:
-
63.98g (without battery)
-
Dimension:
-
65*31*108mm
-
Min.diameter of substrate:
-
12mm
-
Operating temperature range:
-
0~40°c
Product Introduction
This unit can make a quick and effective measurement of the thickness of the non- magnetic metal film on the nonmagnetic metal substrate and the non magnetic film of the magnetic metal substrate, be able to identify the magnetic or nonmagnetic metal substrate automatically, widely be applied in manufacturing industry, metal process, chemical industry, and business inspection.
FEATURES:
Film/Coating Thickness Gauge possesses the following
1.Measuring the non-magnetic film on the magnetic metal substrate.
2.Thickness measurement of non-magnetic surface coatings on magnetic metal substrates.
3.Automatically identifying the non-magnetic metal substrate or magnetic metal substrate.
4.Single measurement, continuous measurement and differential measurement available.
5.Zero-point calibration, 2-point calibration and basic calibration available.
6.Metric and imperial units of measurement optional.
7.LCD backlight.
8.Automatic shutdown.
SPECIFICATION:
Measurement ranges: 0~1500μm/0~59mil/0~1.5mm Resolution: (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm Measuring error: ≤150μm ±5μm>150μm ±(3%H+1μm) Minimum diameter of magnetic substrate: 12mm Minimum thickness of magnetic substrate: 0.5mm Minimum curvature radius of convex magnetic substrate: 2mm Minimum curvature radius of concave magnetic substrate: 11mm Minimum diameter of non-magneticsubstrate: 50 mm Minimum thickness of non-magnetic substrate: 0.5mm Operating temperature range: 0~40℃ Operating humidity range: 10~95%RH Power supply: 2*1.5V AAA batteries Overall dimensions: 61.98*30.57*107.99mm weight: 63.98g(excluding of batteries)
FEATURES:
Film/Coating Thickness Gauge possesses the following
1.Measuring the non-magnetic film on the magnetic metal substrate.
2.Thickness measurement of non-magnetic surface coatings on magnetic metal substrates.
3.Automatically identifying the non-magnetic metal substrate or magnetic metal substrate.
4.Single measurement, continuous measurement and differential measurement available.
5.Zero-point calibration, 2-point calibration and basic calibration available.
6.Metric and imperial units of measurement optional.
7.LCD backlight.
8.Automatic shutdown.
SPECIFICATION:
Measurement ranges: 0~1500μm/0~59mil/0~1.5mm Resolution: (0.1μm(<100μm),1μm(≥100μm))/0.1mil/0.001mm Measuring error: ≤150μm ±5μm>150μm ±(3%H+1μm) Minimum diameter of magnetic substrate: 12mm Minimum thickness of magnetic substrate: 0.5mm Minimum curvature radius of convex magnetic substrate: 2mm Minimum curvature radius of concave magnetic substrate: 11mm Minimum diameter of non-magneticsubstrate: 50 mm Minimum thickness of non-magnetic substrate: 0.5mm Operating temperature range: 0~40℃ Operating humidity range: 10~95%RH Power supply: 2*1.5V AAA batteries Overall dimensions: 61.98*30.57*107.99mm weight: 63.98g(excluding of batteries)
Specification
|
item
|
value
|
|
Place of Origin
|
China
|
|
|
Guangdong
|
|
Brand Name
|
BENETECH
|
|
Model Number
|
GM211
|
|
Product name
|
GM211 coating and paint thickness gauge
|
|
Measuring range
|
0~1500μm/0~59mil/0~1.5m
|
|
Resolution
|
0.1μm/1μm/0.1mil
|
|
Measurement error:
|
±(3%H+1μm)
|
|
Min.thickness of substrate
|
0.5mm
|
|
Power supply
|
2*1.5V AAA battery
|
|
Weight
|
63.98g (without battery)
|
|
Dimension
|
65*31*108mm
|
|
Min.diameter of substrate
|
12mm
|
|
Operating temperature range
|
0~40°c
|
Packing & Delivery
GM211 Coating And Paint Thickness Gauge
Small PP color boxed
