Quick Details
-
Drilling Speed:
-
75-1220rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIPOW
-
Model Number:
-
ZQ3040X13
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
1800*810*2300 mm
-
Weight (KG):
-
1400 KG
-
Product name:
-
small radial drill machine ZQ3040x13 radial bench driller for metal
-
Spindle taper:
-
MT4
-
Max. Travel of spindle:
-
200mm
-
Spindle speeds steps:
-
6
-
Column Diameter:
-
230mm
-
Weight:
-
1400Kg
-
Power(W):
-
2200
-
Certification:
-
CE ISO9001
Quick Details
-
type:
-
Radial Drilling Machine
-
Max. Drilling Dia. (mm):
-
40 mm
-
Range of Spindle Speed(r.p.m):
-
72 - 1220 r.p.m
-
Drilling Speed:
-
75-1220rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HIPOW
-
Model Number:
-
ZQ3040X13
-
Voltage:
-
220/380/400/415V
-
Dimension(L*W*H):
-
1800*810*2300 mm
-
Weight (KG):
-
1400 KG
-
Product name:
-
small radial drill machine ZQ3040x13 radial bench driller for metal
-
Spindle taper:
-
MT4
-
Max. Travel of spindle:
-
200mm
-
Spindle speeds steps:
-
6
-
Column Diameter:
-
230mm
-
Weight:
-
1400Kg
-
Power(W):
-
2200
-
Certification:
-
CE ISO9001
|
|

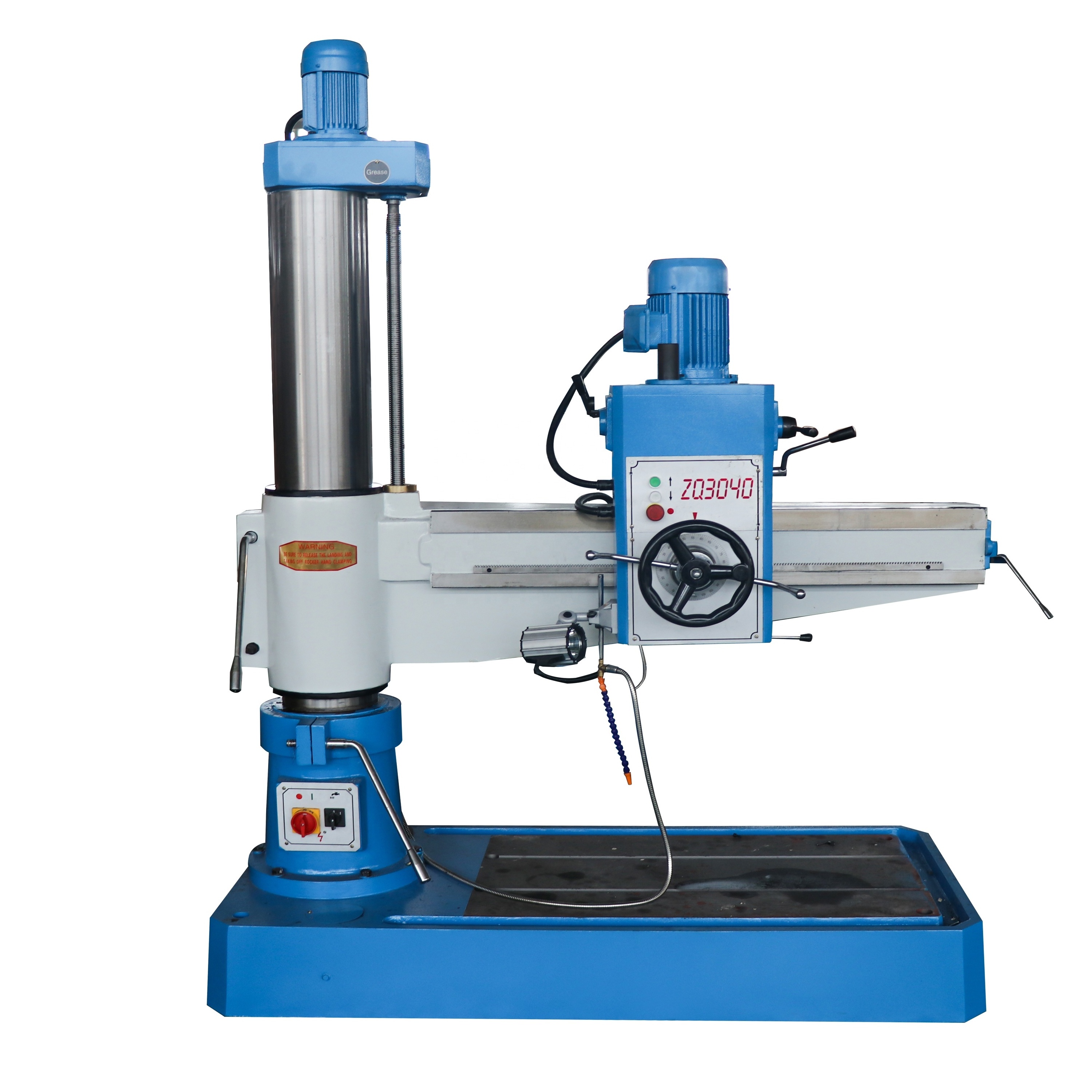

Small radial drill machine ZQ3040x13 radial bench drilling machine for metal
|
|
1. Auto Feed All Gear Spindle Head
1. Spindle Speed Range:,6 steps, 72-1220rpm
2. Spindle Auto Feed Range:3 steps,0.1-0.25 mm/min
3.Spindle Taper: MT4
4. Spindle Travel:200mm
2. High Performance Double-Column Radial Drilling Machine
1)Double-Column Design makes the machine perfect performance
2) Column Diameter:230mm
3. Precised Tempered and Processed Arm Guideway
4. Combined Switch and Indicator.
5. High Quality Electrical Items.
1.China famous brand electrical items are used for the machine
2. Siemens ,Schneider,Omron electrical items can be customized
|
SPECIFICATIONS |
ZQ3040×13 |
|
Max.drilling dia(mm) |
Casting Iron 40 Steel32 |
|
Distance from spindle nose to table surface(mm) |
260-1050 |
|
Distance between spindle axis and column surface(mm) |
360-1300 |
|
Spindle travel (mm) |
200 |
|
Spindle Hole Taper |
MT4 |
|
Spinde speeds range(r.p.m) |
75, 130,240,380,660,1220 |
|
Spinde speed step |
6 |
|
Spinde feeding range(r.p.m) |
0.10-0.25 |
|
Spinde auto feeding step |
3 |
|
Column Diameter(mm) |
230 |
|
Rocker rotary angle |
360° |
|
Main motor power(KW) |
2.2 |
|
Movements motor power(KW) |
1.1 |
|
Weight (Kg) |
1400Kg |
|
Overall dimensions(mm) |
1800×810×2300 |
