Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB22E-P11-E*
-
Product type:
-
Waterproof push button Switch
-
Mounting hole diameter:
-
22mm
-
Head Shape:
-
Flat
-
Switch combination:
-
1NO1NC 2NO2NC
-
Operation type:
-
Momentary Latching
-
Terminal type:
-
Pin Teiminal
-
Material:
-
Nickel Plated Brass/Stainless steel/aluminum oxide
-
Led color:
-
Red Green Blue White Orange Yellow
-
Led voltage:
-
3 5 6 12 24 36 48 110 220V
-
Product name:
-
big push button
-
Certification:
-
CE/ROHS/ISO9001
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
220V AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ABILKEEN
-
Model Number:
-
IB22E-P11-E*
-
Product type:
-
Waterproof push button Switch
-
Mounting hole diameter:
-
22mm
-
Head Shape:
-
Flat
-
Switch combination:
-
1NO1NC 2NO2NC
-
Operation type:
-
Momentary Latching
-
Terminal type:
-
Pin Teiminal
-
Material:
-
Nickel Plated Brass/Stainless steel/aluminum oxide
-
Led color:
-
Red Green Blue White Orange Yellow
-
Led voltage:
-
3 5 6 12 24 36 48 110 220V
-
Product name:
-
big push button
-
Certification:
-
CE/ROHS/ISO9001
Products Description

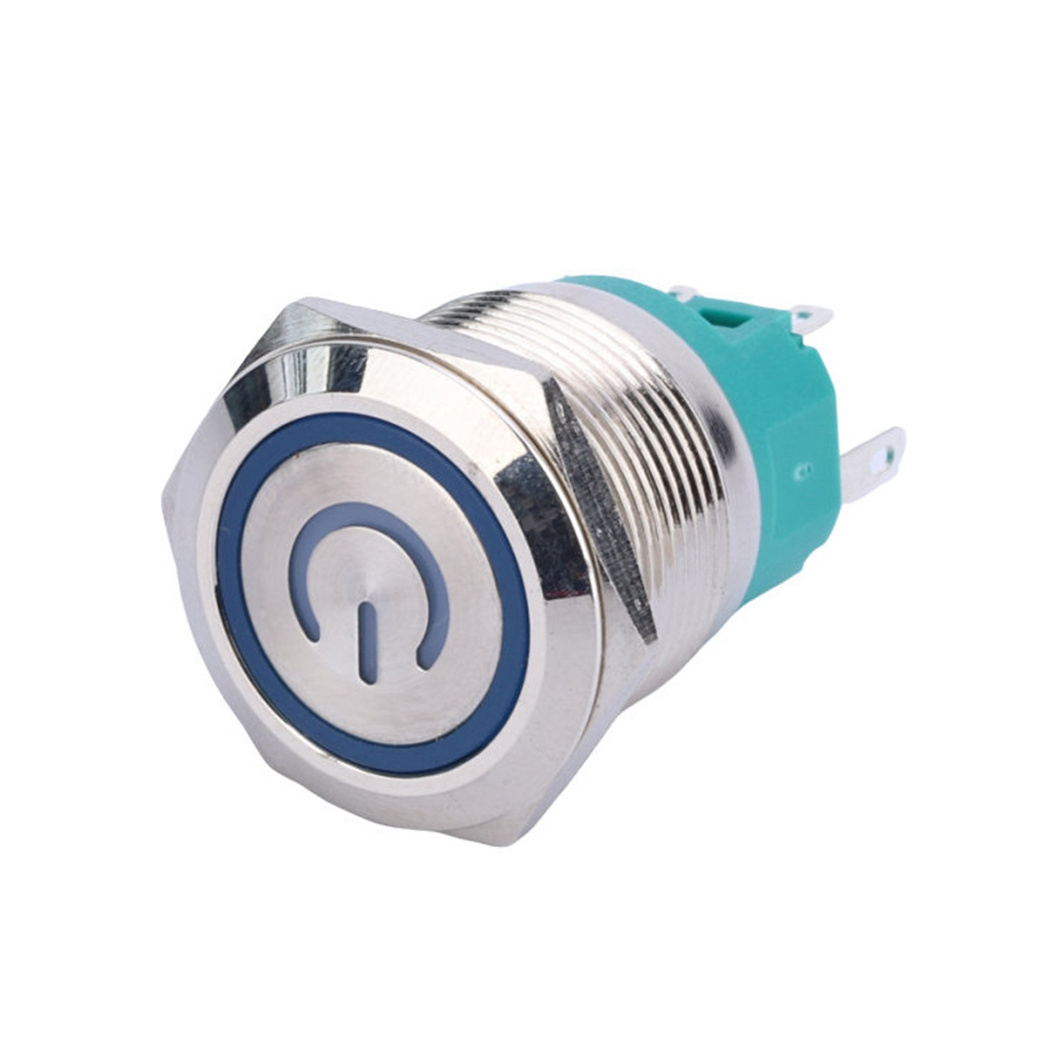

Waterproof Push Button Switch 22 mm Ring Power Led Momentary Latching Customized Logo Symbol Customization IP 67 IK 08
We have anti-vandal p
ush-button switch with19mm.
WATERPROOF MARINE SWITCH:
This push button switch can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.
WIDE APPLICATION：
This 12V/24V push button switch is suitable for motorized vehicles of motor starting, power starting devices, and can also be an access control button.
What is Momentary(reset) function?
When you push switch and then move your finger, the actuator will back to the original position
What is Latching(Self-locking) function?
When you press the button, it will be ON and keeps locked until you press again, it will return to original position
Product Paramenters
|
Model Specification
|
|
|
|
Model NO.
|
Push Button Switch
|
|
|
Mounting diameter
|
22mm
|
|
|
Head shape
|
Flat
|
|
|
Switch Combination
|
1NO
|
|
|
Operation type
|
Momentary Latching
|
|
|
Rated Current
|
5A 220VAC
|
|
|
Illuminating type
|
illuminated LED
|
|
|
Illuminating color
|
Red Green Blue White Orange Yellow
|
|
|
Lamp voltage
|
3-220v
|
|
|
Shell material
|
Brass nickel,Stainless steel,aluminum oxide
|
|
|
Contact Resistance
|
50mΩ max
|
|
|
Insulation Resistance
|
2000VAC
|
|
|
Dielectric Intensity
|
2000VAC
|
|
|
Accessories
|
Nut, Rubber Waterproof O-ring
|
|
