1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Stron
-
Model Number:
-
SEB-01
-
Accuracy Class:
-
Class I
-
Output Voltage:
-
230V
-
Operating Temperature:
-
-25℃-70℃
-
Dimensions:
-
27.2*17*7.8
-
Name:
-
Single phase prepayment electricity energy meter box
-
Weight:
-
1kg
-
Material:
-
PC+ABS
-
Installation:
-
wall mounted/polc mounted
-
Insulation resistance:
-
≥20MΩ
-
Color:
-
White+Gray
-
Rated insulation voltage UI:
-
800V
-
Meter Type:
-
Single Phase
-
Installation location:
-
Indoor/outdoor
-
Installation Network:
-
LV: AC220V,AC380V
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
999999.99
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Stron
-
Model Number:
-
SEB-01
-
Accuracy Class:
-
Class I
-
Output Voltage:
-
230V
-
Operating Temperature:
-
-25℃-70℃
-
Dimensions:
-
27.2*17*7.8
-
Name:
-
Single phase prepayment electricity energy meter box
-
Weight:
-
1kg
-
Material:
-
PC+ABS
-
Installation:
-
wall mounted/polc mounted
-
Insulation resistance:
-
≥20MΩ
-
Color:
-
White+Gray
-
Rated insulation voltage UI:
-
800V
-
Meter Type:
-
Single Phase
-
Installation location:
-
Indoor/outdoor
-
Installation Network:
-
LV: AC220V,AC380V
Product Description

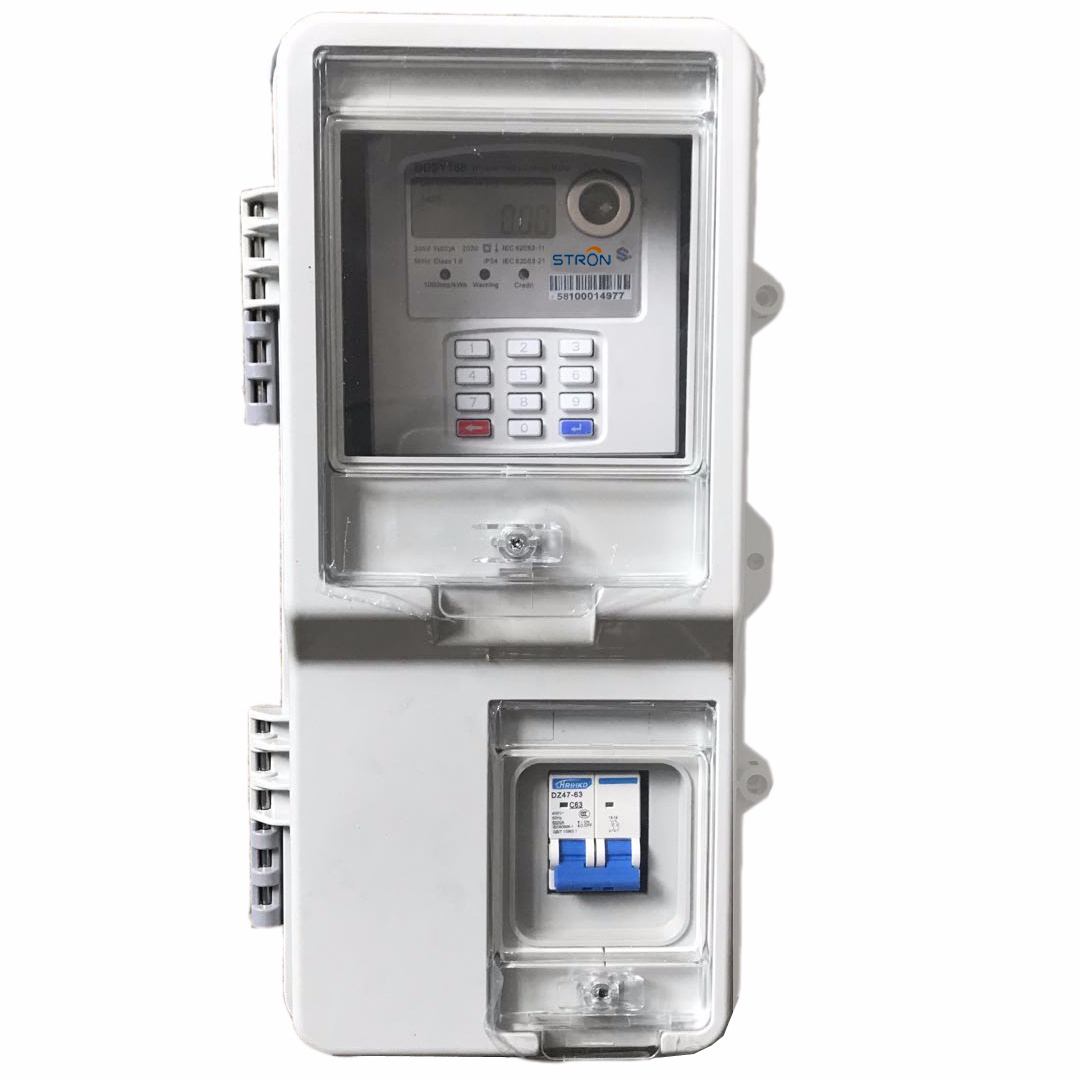

SEB-01 meter box is a multi-functional meter box for single phase energy meter. It can be pole mounted and wall mounted. The meter box can accommodate one unit of BS type single phase meter.
It has high protection degree for outdoor mounting and security sealing provision. Independent transparent window for meter reading and breaker operation, both with sealing provision. It has excellent protection to electricity meter.
It has high protection degree for outdoor mounting and security sealing provision. Independent transparent window for meter reading and breaker operation, both with sealing provision. It has excellent protection to electricity meter.
|
Installation Network:
|
LV: AC220V,AC380V
|
|
Installation type:
|
wall mounted/polc mounted
|
|
Installation location:
|
Indoor/outdoor
|
|
Frequency:
|
50Hz or 60Hz
|
|
Main busbar rated short time withstand current low:
|
30kA
|
|
Insulation resistance:
|
≥20MΩ
|
|
Rated insulation voltage UI:
|
800V
|
|
Material:
|
PC+ABS
|
|
Protection Class:
|
IP65
|
|
Life Expectancy:
|
≥30 years
|
|
Main busbar rated current In:
|
10A~250A
|
|
Dimension(LxWxD):
|
209.5x400x131mm
|
Meter Dimensions
Stronpay Vending Software
Operation of vending software
API
-Stronpay vending software can easily integrated with local mobile payment via API
Company Introduction
Hunan Stron Smart Co., Ltd
is founded in 2007, is the leading supplier of smart meters in China. There are 500 employees in our company including 100 technical engineers, among which 100 people with professional title. We are devoting ourselves to be the intelligent product service provider.
Stron
owns a strong technical team comprised of industry professional engineers and eminent experts and has applied for over 100 patents and intellectual property rights, while a number of its products and technologies have won the national, provincial and municipal awards.
