Quick Details
-
Optical Resolution:
-
Visible Red Light 632nm LED
-
Scan Speed:
-
500 Scans/sec
-
Brand Name:
-
DiligenCe
-
Place of Origin:
-
Guangdong, China
-
Reading preciseness:
-
4mil(0.102mm)@PCS9%
-
CPU:
-
Cortex-M3 32-bit
-
Decoding type:
-
1D bar codes
-
Color:
-
White/Black
-
Name:
-
android pos pen type barcode scanner
-
Interface:
-
USB + BT
-
Weight:
-
95g
-
Advantage:
-
Android Smart Phone Easily
-
Capability:
-
Reading bar codes from Screen
-
Scanning range:
-
3-50CM
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CCD
-
Max Paper Size:
-
N/A
-
Optical Resolution:
-
Visible Red Light 632nm LED
-
Scan Speed:
-
500 Scans/sec
-
Brand Name:
-
DiligenCe
-
Place of Origin:
-
Guangdong, China
-
Reading preciseness:
-
4mil(0.102mm)@PCS9%
-
CPU:
-
Cortex-M3 32-bit
-
Decoding type:
-
1D bar codes
-
Color:
-
White/Black
-
Name:
-
android pos pen type barcode scanner
-
Interface:
-
USB + BT
-
Weight:
-
95g
-
Advantage:
-
Android Smart Phone Easily
-
Capability:
-
Reading bar codes from Screen
-
Scanning range:
-
3-50CM

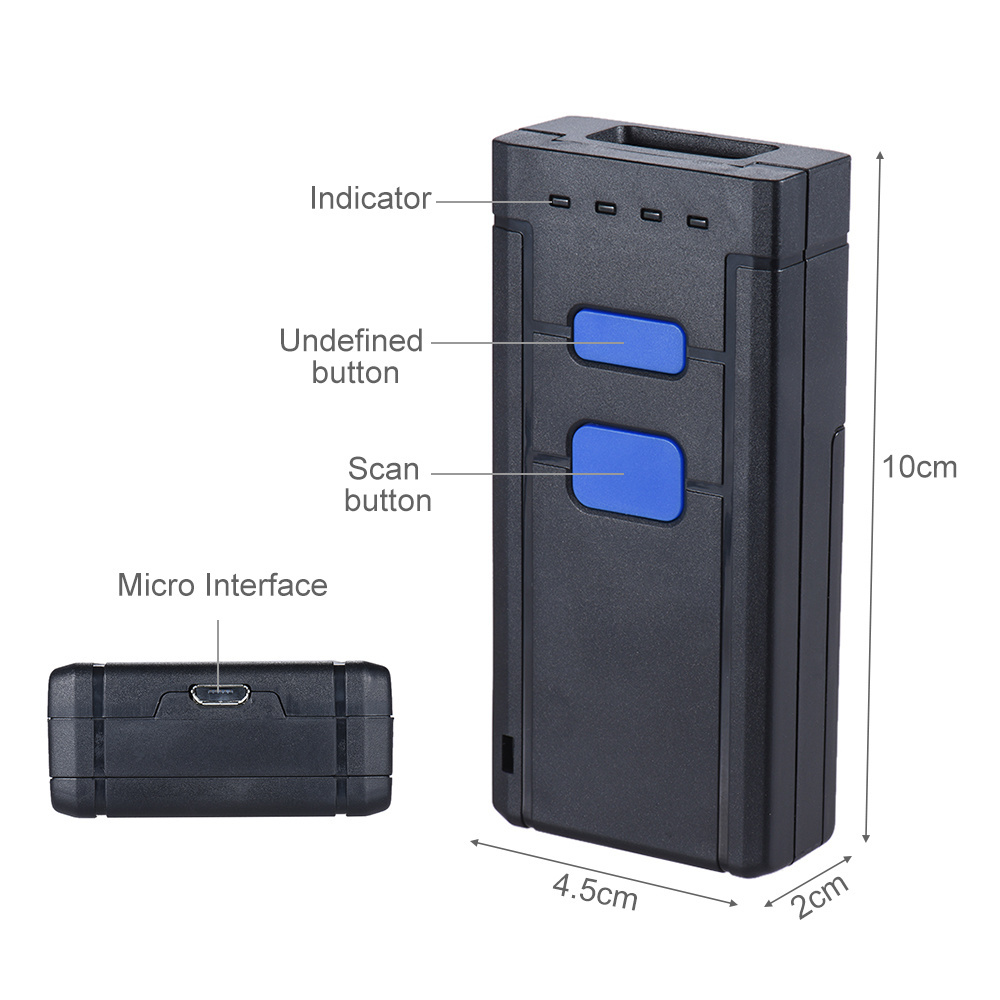

Cheap Pen Type Mini 1D 2D CCD Barcode Reader Manufacturer Mobile 2.4GHz Android Portable Handheld Wireless Barcode Scanner 2877
Specifications
|
Type |
BT Barcode Scanner |
|
Light Source |
Visible Red Light 632nm LED |
|
CPU |
ARM Cortex™-M3,32-bit |
|
Scanning Speed |
500 scan/sec |
|
Resolution |
4mil(0.102mm)@PCS9% |
|
Decoding Capability |
UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII, Code 32,Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5 (Discrete 2 of 5), Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey,UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants |
|
Communication Distance |
10 meters visual range, 80meters effective open distance |
|
Depth of scan field |
500mm@20mil/0.5mm, PCS90% |
|
Decode error rate |
Less than1/5 million |
|
Scan Angel |
Yaw(Skew)60 Pitch 60 |
|
Battery |
DC3.7V, 1000mA Li-ion battery |
|
Scanner material |
Eco-friendly, ABS |
|
Drop test |
2 meters fall into concrete for several times |
|
Power |
Working current:100 mA Standby Current: 30mA |
|
Dimension |
100*46*21mm |
|
Scanner Weight |
150g |
