Quick Details
-
Brand Name:
-
HNHC
-
Use:
-
Fiber cutting, FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
Fiber cleaver
-
Model:
-
HY-85
-
Weight:
-
230g
-
Cutter Life time:
-
48000 times
-
Applicable bare fiber diameter:
-
125μm
-
Applicable fibercore number:
-
Single core (0.25&0.9mm)
-
Fiber Type:
-
0.25mm&0.9mm
-
Fiber cutting length:
-
7-16mm
-
Cleave angle capability:
-
≤0.5°
Quick Details
-
Type:
-
Fiber optic cleaver
-
Model Number:
-
HY-85
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HNHC
-
Use:
-
Fiber cutting, FTTH
-
Warranty Time:
-
1 year
-
Product name:
-
Fiber cleaver
-
Model:
-
HY-85
-
Weight:
-
230g
-
Cutter Life time:
-
48000 times
-
Applicable bare fiber diameter:
-
125μm
-
Applicable fibercore number:
-
Single core (0.25&0.9mm)
-
Fiber Type:
-
0.25mm&0.9mm
-
Fiber cutting length:
-
7-16mm
-
Cleave angle capability:
-
≤0.5°

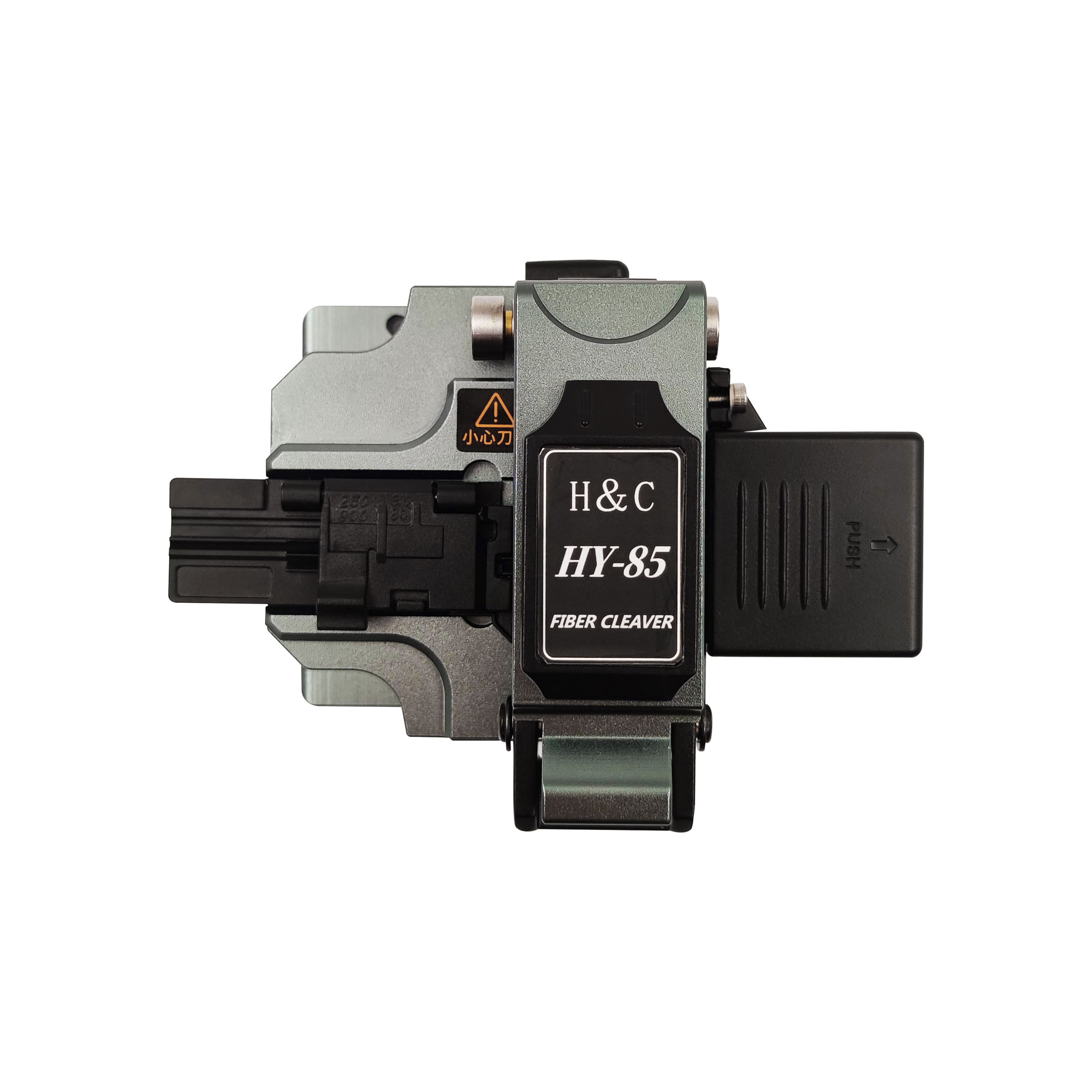

HY-85 Optical Fiber Cleaver
HY-85 Optical Fiber Cleaver
(1)Hold the outer plate, push downward and remove the outer plate locking according to the guidance of the rear end, open the outer plate(conversely, locked), move the blade seat inward;
(2) Visually align edge of the fiber coating layer with the corresponding scale on the ruler（10-16cm） of the cleaver, put the optical fiber into the guide groove with the left hand, requiring the bare fiber to be placed straight on the rubber pad;
(3)Close the holder cover,press the outer plate till the blade seat pops out, then open the outer plate, the cleaving is done;
