Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine
Cable bobbin wire unwinder uncoiler work with wire stripping machine

Cable bobbin wire unwinder uncoiler work with wire stripping machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SR-Q001
Model:
SR-Q001
Warranty:
1 Year
Applicable cable:
Round cable, Flat cable customized
Available cable reel:
Dia Max 630mm, height max 480mm
Load weight:
100kg
Available coil outer diameter:
PN400, PN500, PN630
Size:
960*810*1050mm
Power:
AC220V 0.75KW
Weight:
180KG
Speed:
Max 2m/s

Quick Details

Use:
Feeding
Place of Origin:
Guangdong, China
Brand Name:
Sinrad
Model Number:
SR-Q001
Model:
SR-Q001
Warranty:
1 Year
Applicable cable:
Round cable, Flat cable customized
Available cable reel:
Dia Max 630mm, height max 480mm
Load weight:
100kg
Available coil outer diameter:
PN400, PN500, PN630
Size:
960*810*1050mm
Power:
AC220V 0.75KW
Weight:
180KG
Speed:
Max 2m/s
Product Description

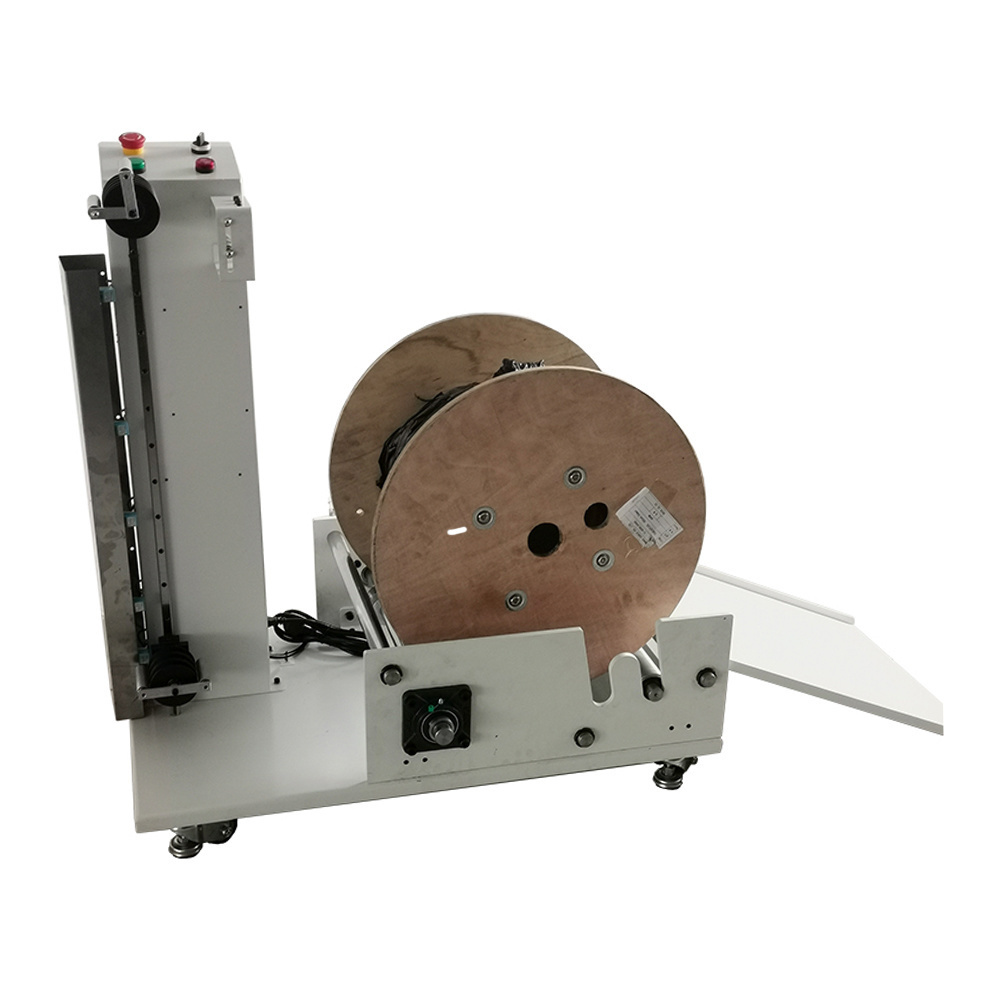

Cable bobbin wire unwinder uncoiler work with wire stripping machine

Especially for heavy cable, power cable, large cable feeding.

Product details

Model SR-Q001 / SR-K001
Power 220V 750W / 220V 1.5kw
Size 960*810*1050mm / 1240*920*1050mm
Applicable cable reel Diameter max 630mm, height max 480mm / Diameter 800mm, height 580mm
Applicable wire diameter Less than 12mm
Load weight Max 100kg / 200kg
Speed Max 2m/s
Packing Wooden case
Gross weight 180kg / 220kg

We can customize the cable feeder according to the details of cable and coil: the outer diameter of coil, the inner diameter of coil, the width of coil, the outer diameter of cable, the total weight of cable and coil.

This pay-off machine is suitable for wire coils with rollers. The machine adopts a variable-frequency motor with infinitely variable speed, which fundamentally solves the problem of difficult pay-off in wire harness processing.

Features:

(1)This machine is an automatic wire feeding machine, which is used in conjunction with a fully automatic computer wire stripping machine, eliminating the need for manual threading. You only need to fix the whole coil of wire on the pay-off rack, start the motor when the wire needs to be fed, and it will automatically stop when the wire is slack to a certain degree.


(2)This machine is compact in design and convenient in setting and clamping the spool, which can greatly reduce labor intensity and improve production efficiency.


(3)It can be used with any type of automatic terminal crimping machine or computer wire cutting machine.


(4)It can be modified and customized according to the special requirements of customers.
