Quick Details
-
Brand Name:
-
XRD
-
Material:
-
carbon steel, Carbon Steel or SS304
-
Weight:
-
500-9000kgs
-
Size:
-
10-100m3
-
Power:
-
11-30 kw
-
Productivity:
-
30-200 m3/h
-
Weight (KG):
-
2000 kg
-
Product name:
-
dissolved air flotation system price
-
Color:
-
Blue
-
Certification:
-
ISO9001:2008
-
Application:
-
Wastewater treatment
-
Function:
-
Remove suspended solids
-
Type:
-
Horizontal type
-
Working time:
-
8-24 hours/day
-
Operation way:
-
Automatic
-
Capacity:
-
30m3-200m3
Quick Details
-
Applicable Industries:
-
domestic sewage, industrial sewage treatment mill, hospital sewage treatment mill, food sewage treatment mill, printing and dyeing sewage treatment mill
-
Marketing Type:
-
Hot Product 2021
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XRD
-
Material:
-
carbon steel, Carbon Steel or SS304
-
Weight:
-
500-9000kgs
-
Size:
-
10-100m3
-
Power:
-
11-30 kw
-
Productivity:
-
30-200 m3/h
-
Weight (KG):
-
2000 kg
-
Product name:
-
dissolved air flotation system price
-
Color:
-
Blue
-
Certification:
-
ISO9001:2008
-
Application:
-
Wastewater treatment
-
Function:
-
Remove suspended solids
-
Type:
-
Horizontal type
-
Working time:
-
8-24 hours/day
-
Operation way:
-
Automatic
-
Capacity:
-
30m3-200m3

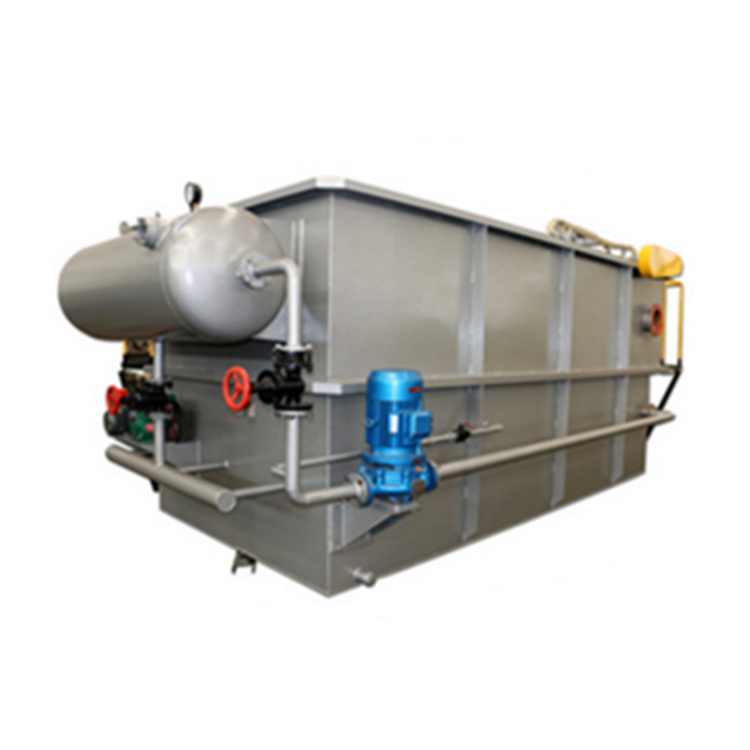

The big capacity 30-200m3/h Dissolved Air Flotation (DAF) Separator
Function & application
This machine is a separator to get clean water by separating suspended solids, fats, oils and greases from water. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation. And its function is the following:
( 1) Remove oil and TSS.
(2) Separate small particles and algae in groundwater.
(3) Recover valuable products in industrial sewage such as paper pulp.
(4) Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
The machine is used in slaughter house, chemical plants, textile plants, metal fabricator, dairy processor, pulp and paper mills, pet food processors, meat & poultry processing plants, fruit & vegetable processors and canneries, biological treatment facilities(clarification, thickening)
Feature & advantage
1) Air-liquid dissolving efficiency high,Low voltage operation, Dissolve gas-water dissolving efficiency 80-100%
2) Large capacity, high efficiency and small occupying space.
3) Compact structure, easy operation and maintenance.
4) Silt expansion elimination.
5) Aerate to the water while air floating, it has an obvious effect to the elimination of active agent and foul smell in water. Meanwhile, the increased dissolved oxygen provides a favorable condition to the follow-up process.
6) It can achieve the best effect in adopting this method when disposing the water with lower temperature, lower turbidity and more algae.
Technical specification
Productivity (m3/h) |
Water volume (m3/h) |
Power (kw) |
Blows form machine power (kw) |
Air flotation pot specification (mm) |
|
XRWF -11-5 |
4-5 |
1.5-2 |
3 |
0.75 |
φ400×1000 |
XRWF-11-10 |
8-10 |
2-3 |
3 |
0.75 |
φ500×1512 |
XRWF-11-15 |
10-16 |
3-4 |
3 |
0.75 |
φ500×1512 |
XRWF-11-20 |
15-20 |
5-7 |
7.5 |
1.1 |
φ500×1512 |
XRWF-11-30 |
20-30 |
6-10 |
7.5 |
1.1 |
φ500×1512 |
XRWF-11-40 |
30-40 |
8-13 |
7.5 |
1.1 |
φ600×1880 |
XRWF-11-50 |
40-50 |
15-20 |
7.5 |
1.5 |
φ600×1880 |
XRWF-11-60 |
50-60 |
18-27 |
7.5 |
1.5 |
φ600×1880 |
XRWF-11-80 |
70-80 |
24-32 |
7.5 |
1.5 |
φ650×2034 |
XRWF-11-105 |
90-105 |
30-35 |
15 |
1.5 |
φ700×1980 |
XRWF-11-150 |
125-150 |
60-80 |
22 |
2.2 |
φ800×1980 |
XRWF-11-200 |
175-200 |
80-100 |
22 |
3 |
φ800×2100 |
XRWF-11-250 |
225-250 |
110-120 |
22 |
3 |
φ800×2400 |
XRWF-11-300 |
280-300 |
120-180 |
37 |
3 |
φ1000×2900 |
|
01. We are a manufacturer and we have import and export rights.
02. We produce wonderful environmental protection machines and solutions, pulp and paper making machines and solutions as well as tissue paper converting machinery and solutions,
03. Our main manufacturing facility which spans nearly 30,000m2.
04 . We have achieved a total of 32 patents over the past few years.
05.
Each year the output value of our products can reach up to 150 million RMB, to domestic and overseas.
06.
We are in very close proximity to a very famous port city – Qingdao in northern China, and this location provides us with a plethora of logistics advantages, including: easy and cost effective transport by both air and sea
,
also.
01. Detailed installation manual and maintenance guideline are provided with the equipment.
02. Technical training and site-commissioning are available for you.
03. Any equipment issue, we will stand by. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
01. How to buy your idea products?
A: You can provide us your water sources, water quality, flow rate and ground area (connect us for more details).
02. How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balance before loading by TT.
03. What is the delivery time?
A: It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
04. How to pack the products?
A: We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
05. How to keep your equipment from corrosion?
A: We use the world-famous paint, like SigmaCoatings, PainBow, etc. What's more, we paint strictly according to the standard process.
06. How do you manufacture your equipment ?
A: Our machining technology includes laser/plasma cutting, automatic welding, CNC cutting and bending.
07. How to install after the equipment arriving destination?
A: We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
