Quick Details
-
Hose Inner Diameter:
-
125 mm
-
Air Consumption:
-
10-15m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincola
-
Voltage:
-
380V/400V/415V/440V/660V 50Hz/60Hz
-
Power:
-
45kw
-
Dimension(L*W*H):
-
5.8*2.1*2.9
-
Weight:
-
8000 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Mine, tunnel, Construction
-
Color:
-
yellow or Customised
-
Keywords:
-
Wet Shotcrete Machine
-
Type:
-
Robotic Telescopic Concrete Spray System
-
Drive mode:
-
Electric, Diesel
-
Output:
-
15-25m3/h
-
Market:
-
Global
Quick Details
-
Marketing Type:
-
New Product 2021
-
Max. Conveying Distance:
-
16m
-
Max Aggregate Size:
-
20mm
-
Hose Inner Diameter:
-
125 mm
-
Air Consumption:
-
10-15m3/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sincola
-
Voltage:
-
380V/400V/415V/440V/660V 50Hz/60Hz
-
Power:
-
45kw
-
Dimension(L*W*H):
-
5.8*2.1*2.9
-
Weight:
-
8000 kg
-
Warranty:
-
12 Months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Mine, tunnel, Construction
-
Color:
-
yellow or Customised
-
Keywords:
-
Wet Shotcrete Machine
-
Type:
-
Robotic Telescopic Concrete Spray System
-
Drive mode:
-
Electric, Diesel
-
Output:
-
15-25m3/h
-
Market:
-
Global
Concrete Spraying System, Customization Robot Arm Gunite Machine
Concrete Spraying System, Shotcrete Machine:
Tunnel application concrete spray system with robotic arm shotcrete machine application
This Customization Robot Arm Gunite Machine are suitable for bigger fracture surface, project which need big output, and tunnel construction which need high efficiency shotcrete.
Customization Robot Arm Gunite Machine, Concrete Spraying System applied in railway tunnel, Road slope protection etc.
Concrete Spraying System SKC20
Technical Parameters:
|
Technical Parameters of SKC20 |
|||
|
No |
Item |
Data |
|
|
1 |
Whole machine |
weight |
8T |
|
speed L/H |
5/15 Km/h |
||
|
slope climbing capability |
25° |
||
|
ground clearance |
245mm |
||
|
traveling size |
5900*2000*2650(mm) |
||
|
Moving mode |
all hydraulic wheel type |
||
|
2 |
power |
engine |
60KW/2200rpm water cold,diesal |
|
motor |
45kW |
||
|
3 |
Spraying System |
boom type |
fold,turn,telescopic( 3 section) |
|
max spray height |
11m |
||
|
max spray width |
19m |
||
|
max spray depth in front |
9.6m |
||
|
the fold boom length |
2.48m |
||
|
telescopic boom turn |
360° |
||
|
telescopic boom length |
2.9m |
||
|
nozzle rotary angle |
360° |
||
|
nozzle swaying angle |
240° |
||
|
spray pipe diameter |
Φ80mm |
||
|
4 |
Pump system |
Theoretical pump capacity |
8~20m3/h (manual ) |
|
Theoretical max output pressure |
8MPa |
||
|
Max aggregate material diameter |
≤16mm |
||
|
pipe diameter |
Φ125mm change toφ80mm |
||
|
concrete cylinder diameter |
φ140mm |
||
|
concrete cylinder travel distance |
600mm |
||
|
cylinder diameter(Vat/pole) |
Φ80/Φ50 |
||
|
cylinder travel distance |
600mm |
||
|
concrete capacity |
300L |
||
|
feeding position height |
1200mm |
||
|
5 |
Dozing Accelerating Chemical System |
flow rate |
60~600L/h |
|
pressure |
12bar |
||
|
Chemical capacity |
200L |
||
|
6 |
Electrical hydraulic system |
electric conponents: siemens,Omron; hydraulic conponents: Rexroth, danfoss |
|

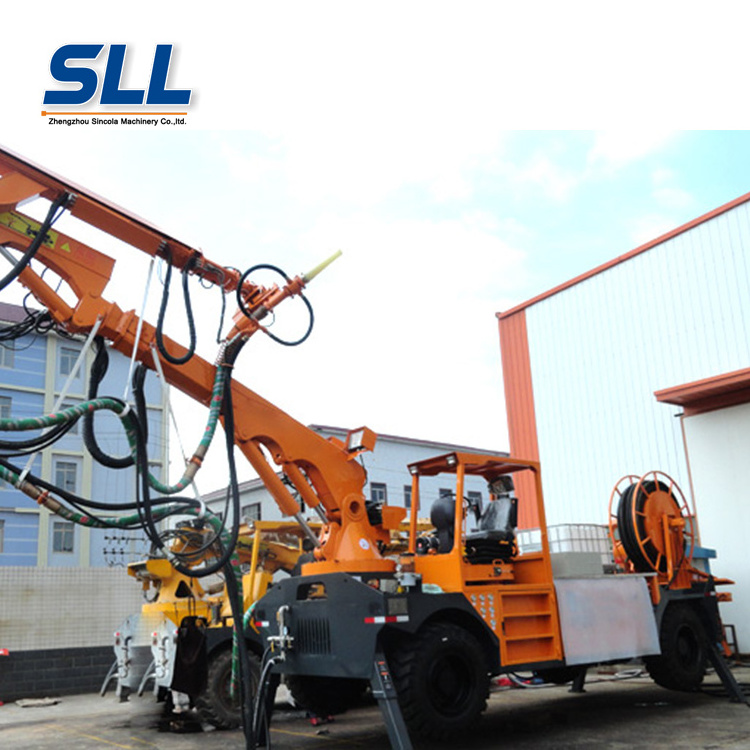

Customization Robot Arm Gunite Machine Picture
Robot Shotcrete Machine SKC20 Features:
1. Spraying System of
Customization Robot Arm Gunite Machine:
Intelligent spraying control, high accuracy, wide spray area, minimum spray rejection.
2. Working range:
a. long-reach spray boom allows to work at long distance and great height.
b. 3-PRS spray head gives full spherical spray area without blind spot.
c. Full hydraulic intelligent spray boom guarantees no interference when all boom sections working at the same.
3. Chassis:
a. Rigid chassis, internal combustion – hydrostatic transmission, 4-wheel drive, 4-wheel steering with swiveling driver’s cab.
b.hydraulic supporting leg hold the vehicle steady at all times, absorb forces when material blending, pumping and spraying.
4. Concrete delivery system:
a.Advanced undamped hydraulic system with 1200mm stroke length offers high and steady pumping pressure, also reduce power consuming and parts wearing.
b.Pumping capacity range from 0 to 60 cubic meters. It can be adjusted as per customer requirements to satisfy complicated working conditions. (Recommend capacity range is 4 to 28 cubic meters)
5. Setting Accelerator Adding system:
a. Reliable frequency convert technology complied with PLC and computer control offer a setting control of adding rate depending on concrete out put.
b. Auto-adjusting frequency control offers motor speed change and auto dosing according to concrete delivery amount.
6. Complete machine:
Minimum height and rotation radius, suitable for space limited work sites
Remote Control of Concere Spraying System
FAQ:
1. Full Automatic one set concrete spraying machine for mine, your machine, is it suitable for the project?
Yes, Our concrete spraying system, It is a whole unit of pumping,spraying.
With robot telescope arm, you just control the machine, it will automaticlly working for the project.
2. How much is
Customization Robot Arm Gunite Machine
price?
It's cheaper than other in the market. The detail price, you can contact me by email,I'll send you according your requirement.
3. I need the machine for tunnel construction spraying concrete, is it suitable for the project?
Of course, our the robot shotcrete machine, is a professional for mines,tunnels,etc.
4. Do you have larger capacity concrete spraying machine?
Yes, we have machine of out put capacity: 5m3/h, 7
m3/h,
9
m3/h (by manua);
15m3/h,
20m3/h,
25m3/h,
30m3/h,
3
5m3/h (automatic arm). Please email me about your requirment,i'll offer you as soon as possible.
5.
Can you offer the
m
achine operation training?
Yes, we can send technicist to training if you need.
6. The Customization Robot Arm Gunite Machine, can it be transport by container?
Yes, we had ever export machines to international market , the shipping is no problem.
Any questions or requirment of the concrete spraying system, please contact me with thanks.
