Name: Electrci Relay
Brand: Schneider
Original: France
Good quality and easy to find in customer's local market.Keep the machine stable and uniform.
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
20KW
-
Application:
-
Plywood Bending Product
-
Working Principle:
-
High Frequency Wood Bending Shaping Machine
-
Heating Time:
-
2~5 minutes
-
Power:
-
380V,50Hz or customized
-
Electric Spare Parts:
-
Schneider, Omron,etc
-
Hydraulic System:
-
Taiwan Brand
-
Press Rack:
-
Heavy Duty Structure
-
Mold Type:
-
Wooden Mold
-
Output:
-
2 output
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SAGA
-
Machine Type:
-
Wood Bending Press
-
Weight (KG):
-
8000 KG
-
Power (kW):
-
20KW
-
Application:
-
Plywood Bending Product
-
Working Principle:
-
High Frequency Wood Bending Shaping Machine
-
Heating Time:
-
2~5 minutes
-
Power:
-
380V,50Hz or customized
-
Electric Spare Parts:
-
Schneider, Omron,etc
-
Hydraulic System:
-
Taiwan Brand
-
Press Rack:
-
Heavy Duty Structure
-
Mold Type:
-
Wooden Mold
-
Output:
-
2 output
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
After Warranty Service:
-
Field maintenance and repair service
-
Local Service Location:
-
None
Product Description
Product Application

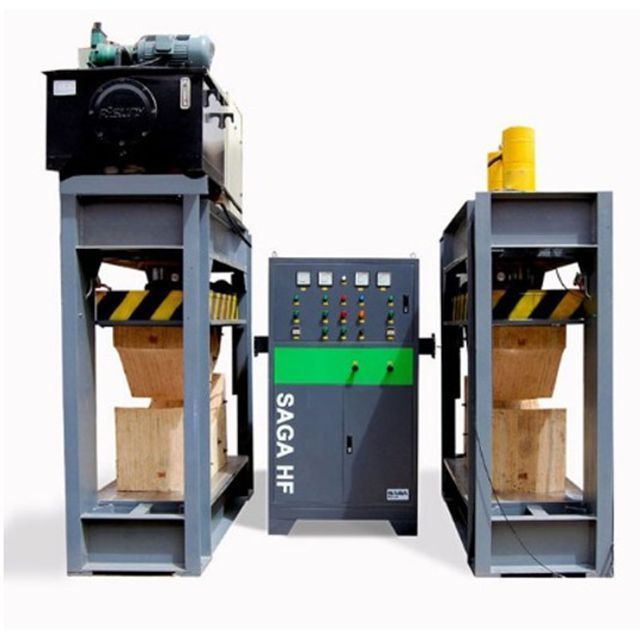

High Frequency Wood Bending Shaping Machine applies high frequency generator to hydraulic press by mold and electrode, it transfers high frequency power to work piece to achieve the function of fast gluing and forming .
RF Curved Plywood Press for 1.Bent plywood chair. 2.Bent or arc plywood furniture or bed. 3.Other bent plywood products like cloth hangers, surface of musical instrument,etc
|
SPECIFICATIONS FOR 80 TON High Frequency Wood Bending Shaping Machine
|
|
|
|
|||
|
High Frequency Generator
|
Model
|
HF20-SA
|
|
|||
|
|
Input Power
|
30 Kva
|
|
|||
|
|
Output Power
|
20 Kw
|
|
|||
|
|
Output
|
One or Two output
|
|
|||
|
|
Power Requirement
|
380V, 50 Hz, 3 Pase, 4 Wire
|
|
|||
|
|
Oscillation
|
6.78 Mhz
|
|
|||
|
|
Overall Size
|
1000*950*1850 mm
|
|
|||
|
|
Weight
|
500 kgs
|
|
|||
|
Hydraulic Press
|
Press Plate Working Length
|
1600 mm
|
|
|||
|
|
Press Plate Working Width
|
800 mm
|
|
|||
|
|
Opening
|
1100 mm
|
|
|||
|
|
Stroke
|
600 mm
|
|
|||
|
|
Main Pump
|
7.5 Kw
|
|
|||
|
|
Hydraulic Pressure
|
80 Ton
|
|
|||
Main Features
1) Fast and uniformly heating
2) Bending shape is stable, not easy to change de-lamination
3) High frequency power is a selectively heating power, it concentrate only on water or glue, wood not consume HF power, so HF heating is effective and power saving
4) Wooden or MDF mould used, much economic than metal mould if shape is frequently changed.
Certifications
Detailed Images
Machine Parts
Main Features
Name:
Relay
Brand:
Omron
Original:
Japan
Good quality and easy to find in customer's local market.Keep the machine stable and uniform.
Machine Parts
Name:
Output Change Overy Switch
Brand:
Saga
Original:
China
Saga Machinery made this part to meet the machine requirement, to make sure high frequency generator work well.
Main Features
Name:
Hydraulic Motor
Brand:
ZHIYAN
Original:
Taiwan,China
Hydraulic motor is made in Taiwan, with good quality and after-sell service.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
|
|
|
Size
|
2300 (L) * 800 (W) * 2200 (H)
|
|
|
Weight
|
3 T
|
|
|
Packaging Details
|
The normal package for hydraulic press is plastic and foam(Size: L*W*H).We can pack by wooden case as customer's requirement, If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Packaging
|
|
|
|
Size
|
1000 (L) * 950 (W) * 1850 (H)
|
|
|
Weight
|
0.5 T
|
|
|
Packaging Details
|
The normal package for high frequency generator is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
