Name:
Bitzer
Brand:
Germany brand
The compressor is the only engine of the refrigeration system, it's just as the heart for a human being, so the quality of compressor enfluence the refrigeration effect. Bitzer brand is good quality one, and widely used all over the world.
- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
2.5kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwell
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Bitzer/Customized
-
Ice size:
-
Customized Size
-
Cooling way:
-
Water/Air Cooling
-
Refrigerant:
-
R22 or R404a
-
Material for ice moulds:
-
Aluminum plate
-
Control System:
-
Simens PLC Control System
-
Freezing Time:
-
According to the size
-
Capacity:
-
1 ton~30 tons/24h
Quick Details
-
Ice Shape:
-
ICE BLOCK
-
Voltage:
-
380v/50hz/3p
-
Power:
-
37.5KW
-
Ice storage capacity:
-
2.5kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Kingwell
-
Dimension(L*W*H):
-
Customized
-
Weight:
-
3000 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Compressor:
-
Bitzer/Customized
-
Ice size:
-
Customized Size
-
Cooling way:
-
Water/Air Cooling
-
Refrigerant:
-
R22 or R404a
-
Material for ice moulds:
-
Aluminum plate
-
Control System:
-
Simens PLC Control System
-
Freezing Time:
-
According to the size
-
Capacity:
-
1 ton~30 tons/24h
Product Description

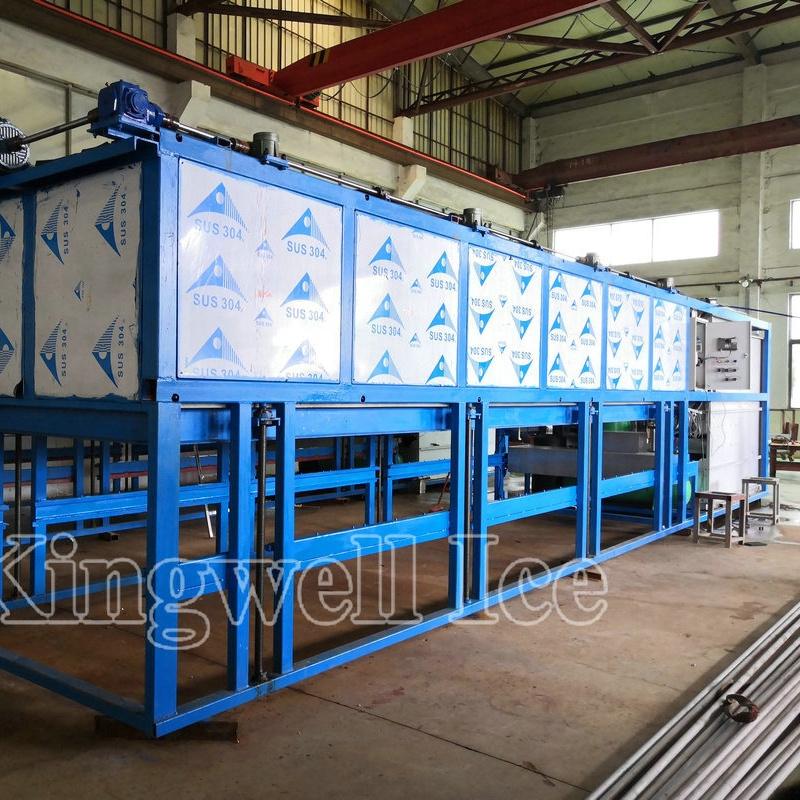

Direct cooling Ice block making machine 15 tons with automatic ice harvest and ice pushing system
Kingwell direct cooling block ice machine is able to produce
edible white and transparent block ice
, much attractive and quite popular among customers. This kind of block is totally
clean enough for drinking
, most of our clients are used for human consumption, while it is also used in pelagic fishing, fresh keeping, temperature controlling and ice sculpture. Especially for hot regions, such as Africa, Middle East, Australia, etc. What's more, the block ice has a dominant advantage than other types of ice, it's solid, strong and not easy to melt, so it's perfect matched for transport in long distance and fishing industry.
Edible white block ice Transparent and Crystal block ice
Main Features
1).
Sanitary and food grade block ice
: Using aluminum plate evaporated directly, the ice can eat directly if the ice making water is clean enough;
2).
Automatic ice making and harvest under control of PLC micro computer system, easy operation;
3).
Anti-rust and anti-corrosive material
: the aluminum ice cans is a good material anti-rust and anti-corrosive, it means the lifespan will be longer;
4).
All-in-One refrigeration system, less space is required, easier for installation;
5).
Shorter freezing and harvesting cycle, save labor cost.
Detailed Images
Compressor
PLC Program Controller
Name:
SIEMENS
Brand:
Germany brand
This PLC is just as the brain for a human being, it controls all the electrical parts of the machine, to guide all part when to work and stop, so the whole ice making and ice falling process are totally automatic. SiEMENS brand is also widely used over the world.
Touch Screen
Name:
Weicon
Brand:
Taiwan brand
This touch screen can adjust some datas and ice thickness, all the working states and working histories can be seen clearly on the screen, so when there is some error of the machine, you can show the video and picture to the factory, problems can be judged quickly
Aluminum plate ice can
Name:
Kingwell
Material:
aluminum plate
Function:
for block ice freezing
The ice can is totally matched food-grade standard, we can make different sizes for your choice.
BLOCK ICE
Ice weight: 5kg,10kg,15kg,20kg, 25kg, 30kg,50kg ,etc for your choice, we can also make any size base on customers'
requirement.
Working conditions
◆ Refrigerant: R22/R404A
◆ Supply Power: Power supply:380~415V, 50Hz, 3 phase; 220~240V, 60Hz, 3 phases; 440~480V, 60Hz, 3 phases; 380V, 60Hz, 3 phases.
◆ Working Conditions: Input Water Temp: 21℃; Evaporating Temp:- 15℃; Condensing Temp: 40℃;
(Notice: the actual ice production will be changed with input water temp and ambient temp.)
◆Guangzhou Kingwell reserves the right to change specifications and design without notice.
Title goes here.
Loading
Our Company
1)
OEM &ODM PRODUCTS
We welcome to make customized products according to client specially requirements.All range of machines can be designed and engineered to suit for clients!
2)
WHOLESALE PRICE
Our factory have full produce ability of entire range of ice machine and cold room that can save cost in many produce step,the same as full experience in export that help client earn more profit.
3)
24H ONLINE SERVICE
With a full suite of global,we have the ability to optimize solutions for urgent clients questions in 24h online serives.
4)
DELIVERY TIME
Full experience staffs and exquisite technology can assure the delivery time.
Kingwell Projects
Kingwell Online Transaction History
Certifications
Related Products
FAQ
1. What's the delivery time of your machine?
1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )
2. Whats the payment method you accept ?
Pay via Alibaba, T/T, In Cash, Western Union, 30% deposit, balance should be paid before shipping.
3. How about the warranty for the products ?
12 months since the delivery date.
4. How to install the machine ?
Manual book and video will be provided to guide you how to install the machine, and also our service online.
5.24h online service
With a full suite of global, we have the ability to optimize solutions for urgent clients questions in 24h online service.With modern communication developing ,businessmen tend to free calls, free text messages, photo and location sharing.
