Quick Details
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
2500*840mm
-
Panel Efficiency:
-
20~21%
-
Size:
-
2500x842mm
-
Thichness:
-
3.9mm
-
Effective area:
-
1.76㎡
-
Weight:
-
20kg
-
Battery type:
-
mono solar cell
-
Color:
-
silver or black
-
Power:
-
380W
-
Efficiency:
-
20~21%
Quick Details
-
Brand Name:
-
Vland or OEM
-
Model Number:
-
HBVT-380
-
Material:
-
mono solar cell
-
Place of Origin:
-
Shandong, China
-
Panel Dimensions:
-
2500*840mm
-
Panel Efficiency:
-
20~21%
-
Size:
-
2500x842mm
-
Thichness:
-
3.9mm
-
Effective area:
-
1.76㎡
-
Weight:
-
20kg
-
Battery type:
-
mono solar cell
-
Color:
-
silver or black
-
Power:
-
380W
-
Efficiency:
-
20~21%
Product Description
Specification
|
Material Data
|
|
BIPV operation parameters
|
value
|
||
|
Model No.
|
HBVT-380
|
Operate temperature
|
-40~+85℃
|
||
|
Outter size
|
2500x842mm
|
Frequency tolerance
|
0~+10W
|
||
|
Effective install size
|
2400x800mm
|
Standard operate temperature
|
41±3℃
|
||
|
Thickness
|
3.9mm
|
Temperature coefficient
|
|
||
|
Effective area
|
1.76㎡
|
Short-circuit current |
+0.048%/℃
|
||
|
Weight
|
20kg
|
Open circuit voltage
|
-0.28%/℃
|
||
|
Effective width
|
800mm/+20mm
|
Peak power
|
-0.35%/℃
|
||
|
Connect cable
|
1x4.mm㎡ PV cable
|
Load capacity
|
|
||
|
Connector
|
MC4
|
Front side static load
|
5400 Pa
|
||
|
Battery type
|
Mono solar cell
|
Back side static load
|
2400 Pa
|
||
|
Front/back board material
|
Tempered glass, aluminum zinc plated plate
|
system parameter
|
|
||
|
Frame
|
BIPV integration
|
Maximum DC voltage
|
＜120Vdc
|
||
|
Color
|
Silver, Black
|
System output voltage
|
BIPV inverter AC 380Vac
|
||
|
Accessory
|
ST5.5 Self tapping nail, cover plate
|
|
|
||
|
Fire rating(TUV)
|
Class A
|
|
|
||

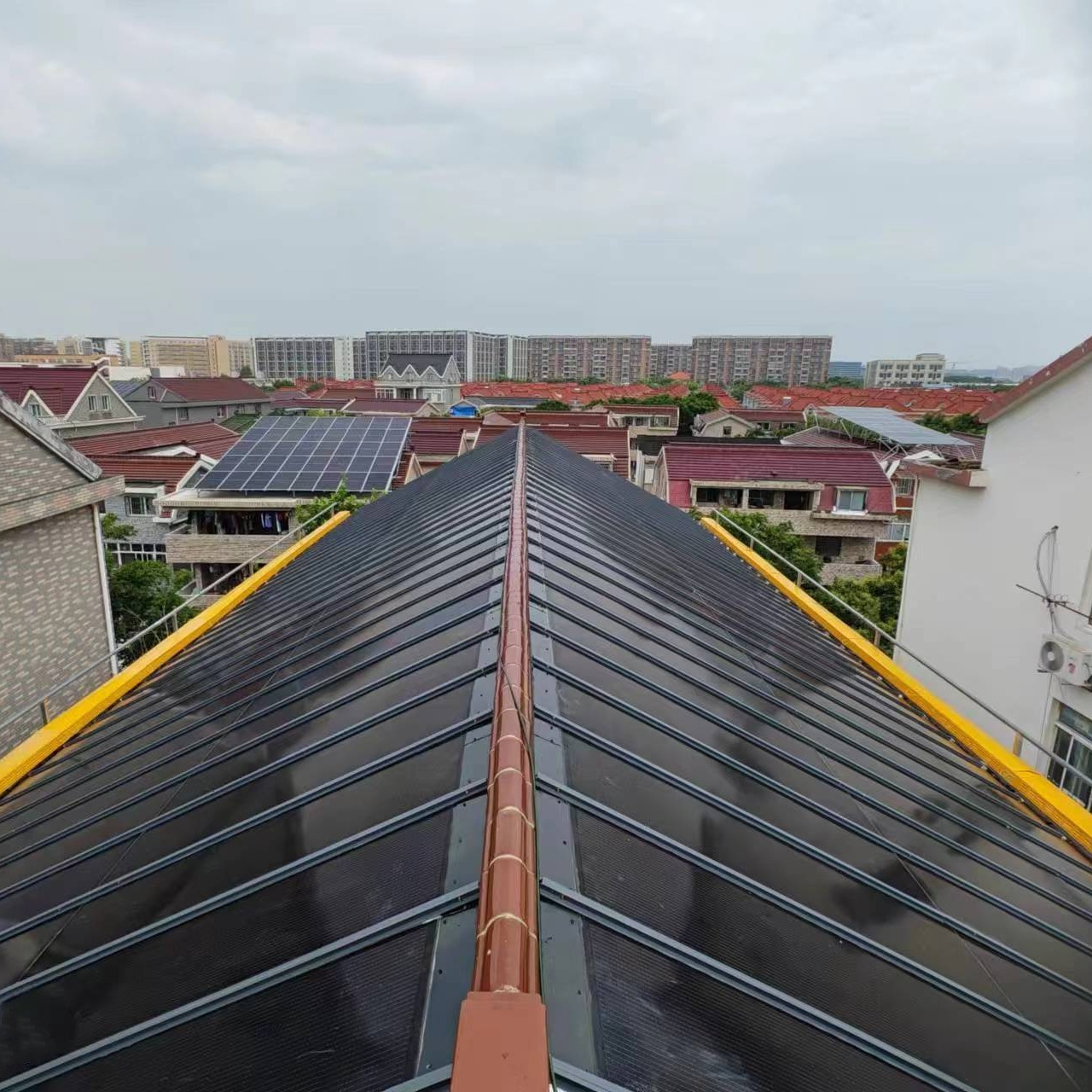

Application
