Quick Details
-
Function:
-
Pulse Repair Lead acid Battery Charger
-
Brand Name:
-
OEM ODM
-
Model Number:
-
1206H
-
output voltage and current:
-
12v 6a
-
Place of Origin:
-
Guangdong, China
-
Output:
-
14.4V 6A
-
Input:
-
AC 100-240V 50/60Hz
-
Use:
-
12V lead acid battery charger
Quick Details
-
Type:
-
Electric
-
Port:
-
DC
-
Usage:
-
12V lead acid battery
-
Function:
-
Pulse Repair Lead acid Battery Charger
-
Brand Name:
-
OEM ODM
-
Model Number:
-
1206H
-
output voltage and current:
-
12v 6a
-
Place of Origin:
-
Guangdong, China
-
Output:
-
14.4V 6A
-
Input:
-
AC 100-240V 50/60Hz
-
Use:
-
12V lead acid battery charger

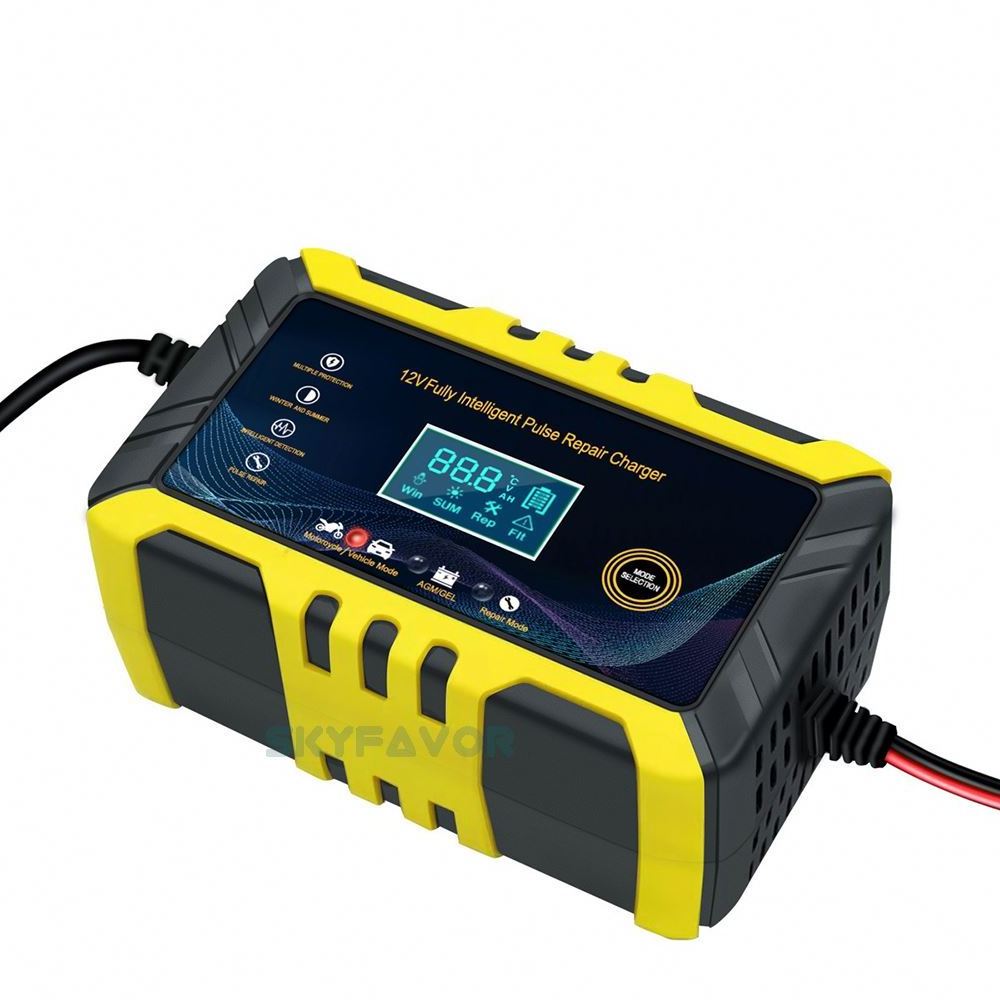

( 12V battery charger) 12V 6A Intelligent Pulse Repair lead acid battery charger for 12 volt car battery with CE ROHS
|
Name |
12V 6A Intelligent Pulse Repair lead acid battery charger |
|
Mode |
1206H |
|
Input |
110Vac or 220Vac |
|
Output |
14.4V Float charge voltage:13.8V (for 12V lead acid battery) |
|
Output current |
6A |
|
Features: |
Temperature control compensation charger |
|
Compatibility |
35AH,60AH 80AH lead acid battery |
|
Protection |
-Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection |
|
Apply to |
Children's toy cars, motorcycles, cars, etc. |
|
weight |
480g |
The Automatic 12V car battery charger 12V 6A Intelligent Pulse Repair lead acid battery charger has designed highly reliable and meet international safety and electromagnetic compatibility requirements.
A:Input Characteristics:
Input Voltage: 100-240Vac input AC voltage
Input Frequency: 50Hz or 60Hz and single phase.
B:Output Characteristics:
Constant Charging Voltage: 14.4V Float charge 13.8V
C:Charging Mode Automatic 12V car battery charger 12V 6A Intelligent Pulse Repair lead acid battery charger
3 Stages, CC, CV, Trickle
D:Safety Test for battery charger
Hi-pot Test:15KVac 5mA 3 Seconds between input and output test
Resistance:The battery charger insulation resistance shall be not less 30M ohms after application of 500Vdc/10mA for 3 Seconds
Drop test: Height: The battery charger conform to BS EN60068-2-32:1993 TEST ED: free fall appendix B
E:Protection for battery charger
Over Voltage Protection The battery charger will be auto recovered when faults remove
Over Current Protection Charger output current does not exceed the set maximum battery charging current.
Over Short Circuit Protection Battery charger output can be shorted without damage No odor, smoke, fire, plastic deformation, and excessive heal happen. The power shall be auto-recovery. (It will enter into normal condition when then the fault condition is removed)
Over reverse polarity Protection When the battery charger output line reversed after the charger will not work until the right user access only to start.
F:DC Connector Dimension: Automatic 12V car battery charger 12V 6A Intelligent Pulse Repair lead acid battery charger
Optional output connector: 3-port Inline, 3-pin XLR, Alligator clip, 3-port House, Coaxial etc.
Special plug: 4-pin XLR, 2-port Inline, 3-pin House, Polarized, 3-port House for Panterra and Grio, Polarized C7 etc
Automatic 12V car battery charger 12V 6A Intelligent Pulse Repair lead acid battery charger
We are the professional manufacturer of all kinds of the battery chargers, we can make OEM customized battery charger for every customer .
|
IDOITWELL Smart Automatic battery charger list |
|||||||||
|
Model IDOITWELL |
Charging voltage¤t for reference |
N.W. (KG) |
Size(mm) IDOITWELL |
||||||
|
84V |
|||||||||
|
7A |
4A |
2.5A |
1.8A |
1.5A |
_ |
_ |
0.7 |
135x90x50 |
|
|
10A |
5A |
3.5A |
2.5A |
2A |
1.5A |
_ |
0.9 |
155x90x50 |
|
|
15A |
7.5A |
5A |
3.8A |
3A |
2.5A |
_ |
1 |
170x90x50 |
|
|
20A |
12A |
8A |
6A |
4.5A |
4A |
_ |
1.2 |
170x90x63 |
|
|
25A |
19A |
12A |
9A |
7A |
6A |
_ |
2.5 |
207x120x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
_ |
3 |
220x135x70 |
|
|
40A |
25A |
18A |
15A |
12A |
10A |
8A |
3.5 |
260x175x90 |
|
|
50A |
30A |
20A |
19A |
15A |
12A |
10A |
4.5 |
260x175x90 |
|
|
60A |
45A |
30A |
24A |
19A |
16A |
14A |
5.5 |
300x175x90 |
|
|
90A |
60A |
40A |
30A |
25A |
20A |
18A |
6.5 |
330x175x115 |
|
|
- |
75A |
50A |
40A |
30A |
25A |
22A |
7 |
380x240x150 |
|
|
150A |
100A |
80A |
60A |
45A |
40A |
35A |
11 |
400x300x200 |
|
Automatic 12V car battery charger 12V 6A Intelligent Pulse Repair lead acid battery charger
1 x Battery charger
1 x User Manual
Automatic 12V car battery charger 12V 6A Intelligent Pulse Repair lead acid battery charger
1.We promise all the photos display on our store are taken by our team, it is real and 2-10% brightness adjustment.
2.Before sending, all the battery charger will be tested, when packing item, we will use the Foam sponge or Corrugated box to protect the battery charger, we will make sure you will receive the perfect product.
1. Are you a manufacturer or trading company?
We are a manufacturer which has 8 years expearance in power supply/power adapter/ charger field.
2. Is your product in full current and full power ?
Yes, we will not do non-full current and non-full power product to customers.
3. Is your products safety ?
Yes. first our matterials are new and fireproof . besides, our products are approved by international certificates CE ROHS UL FCC TUV GS PSE KC CB BSMI...
4. What is your MOQ?
500pcs
5. What is your product warranty policy?
One year
6. What is the delivery time ?
For sample order , 2-3 workingdays after confirm
For bulk order , generally speaking is 7-15 workingdays after confirm , detailed delivery time bases on your order quantity
7. What service could you offer ?
OEM ODM are welcome
8. What is your payment method and trade term ?
By TT , Paypal , Western Union
For bulk order, 30% as deposit, 70% pay off before shipment
