Quick Details
-
Lift Speed:
-
2.5 m/min.
-
Weight (KG):
-
54 kg
-
After-sales Service Provided:
-
Video Technical Support, Online Support, Spare Parts
-
Lifting height:
-
3m
-
Certification:
-
CE , GS , ISO9001:2015
-
Package:
-
Wooden Box
-
Driven Type:
-
AC
-
Main Girder Form:
-
Single Girder
-
Moving Type:
-
Fixed
-
Installation:
-
Assembled
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAIXUN
-
Lift Speed:
-
2.5 m/min.
-
Weight (KG):
-
54 kg
-
After-sales Service Provided:
-
Video Technical Support, Online Support, Spare Parts
-
Lifting height:
-
3m
-
Certification:
-
CE , GS , ISO9001:2015
-
Package:
-
Wooden Box
-
Driven Type:
-
AC
-
Main Girder Form:
-
Single Girder
-
Moving Type:
-
Fixed
-
Installation:
-
Assembled
PRODUCT DESCRIPTION

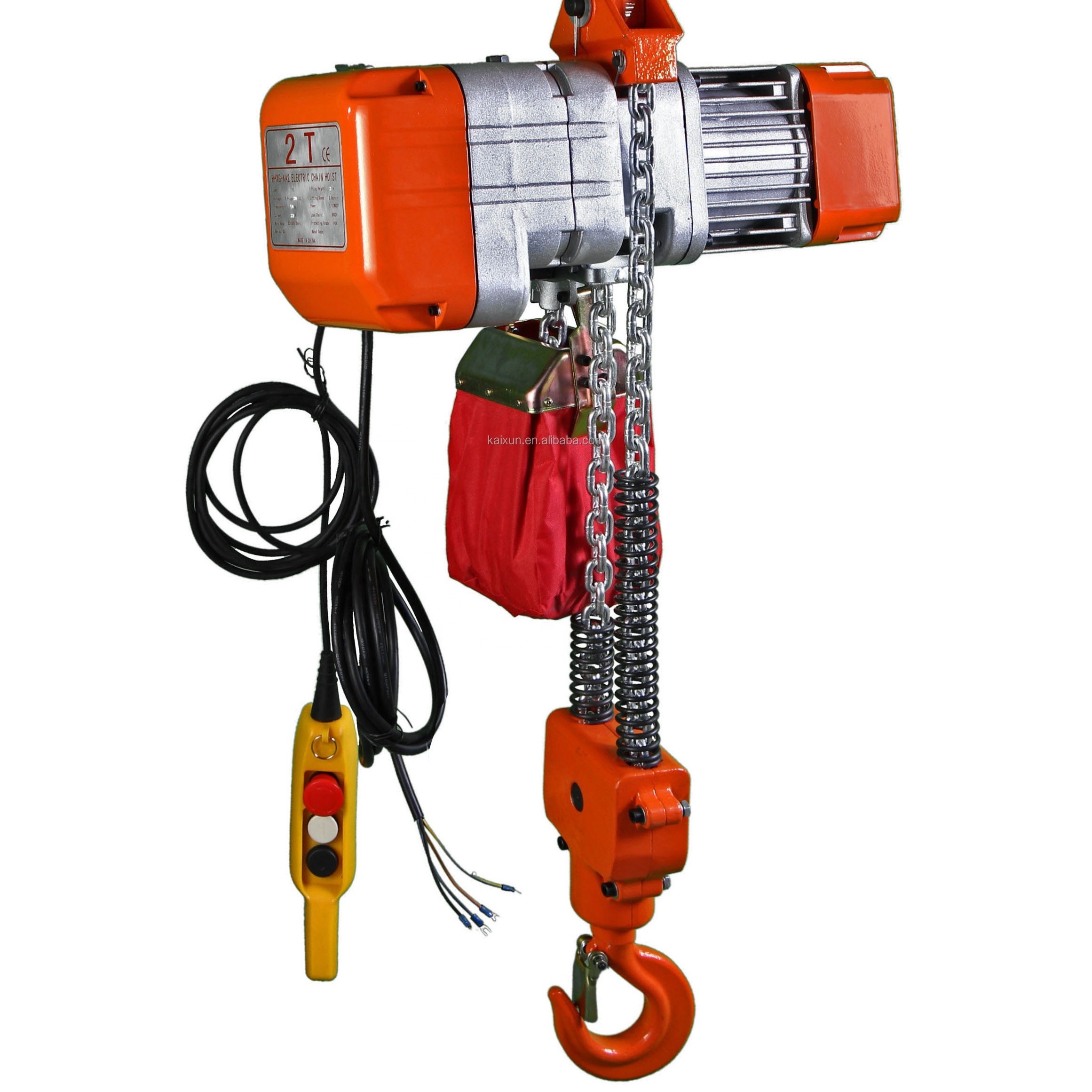

HHXG-HA0.5 / HA1 / KA1 / KA2 Round Chain Electric Hoist
This organic adopts die-casting aluminium principle, legerity and agility, up and down position limit protection device, phase protection device and electromagnetic brake device.
PRODUCT SPECIFICATIONS
|
Model
|
HHXG-HA0.5
|
HHXG-HA1
|
HHXG-KA1
|
HHXG-KA2
|
|||
|
Rated load(kg)
|
500
|
1000
|
1000
|
2000
|
|||
|
Load Chain(mm×mm)
|
φ8×24
|
|
φ7.1×21
|
|
|||
|
Handle Control Voltage(V.AC)
|
24
|
|
|
|
|||
|
Power(KW)
|
0.65
|
|
1.1
|
|
|||
|
Lifting height(m)
|
3
|
3
|
6
|
3
|
|||
|
Lifting speed(m/min)
|
5
|
2.5
|
5
|
2.5
|
|||
|
Work Rate
|
S3-30% 20 min
|
|
|
|
|||
|
Rated Volt(V)
|
AC 100/110/120 220/230/240v 50/60Hz
|
|
AC 220/380/420/440 50/60Hz
|
|
|||
|
N.w(kg)
|
43
|
54
|
43
|
56
|
|||
