Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PrimoPal
-
Model Number:
-
PBDM DC-260 Series
-
Torque:
-
218g.cm
-

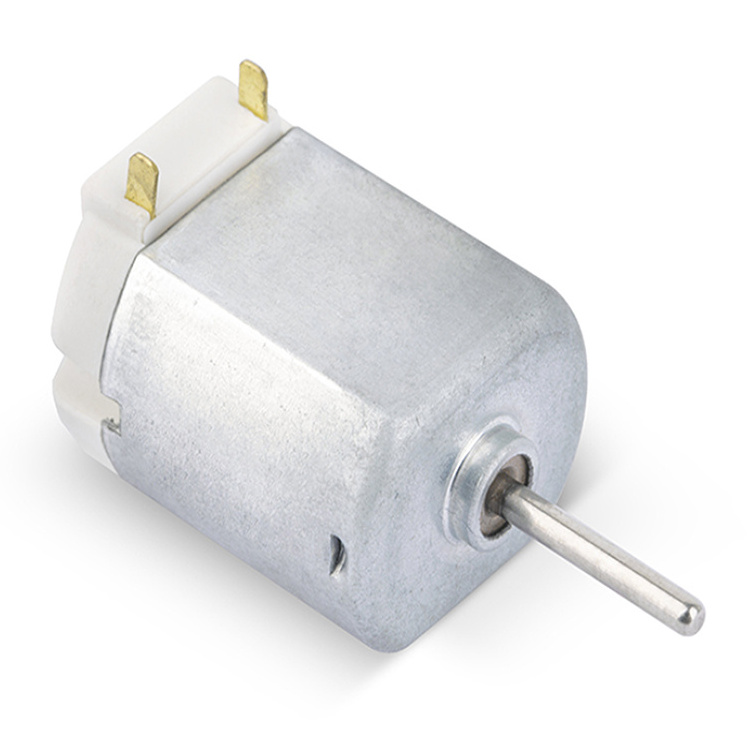

Product Name:
-
12 volt dc Brushed Motor Electric Motors for Central Locks
-
Motor type::
-
Micro Motor
-
Rated Voltage:
-
3.0V - 24.0V
-
Speed(no load):
-
8000-25000 rpm
-
Speed(maximum efficiency):
-
6000-20000 rpm
-
Length:
-
27mm
-
Diameter:
-
24.2mm
-
Weight:
-
34g
-
Noise::
-
low noise
-
Application:
-
Central Locks
-
Certification:
-
CE
Quick Details
-
Speed(RPM):
-
9700RPM
-
Continuous Current(A):
-
0.72A
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
PrimoPal
-
Model Number:
-
PBDM DC-260 Series
-
Torque:
-
218g.cm
-
Product Name:
-
12 volt dc Brushed Motor Electric Motors for Central Locks
-
Motor type::
-
Micro Motor
-
Rated Voltage:
-
3.0V - 24.0V
-
Speed(no load):
-
8000-25000 rpm
-
Speed(maximum efficiency):
-
6000-20000 rpm
-
Length:
-
27mm
-
Diameter:
-
24.2mm
-
Weight:
-
34g
-
Noise::
-
low noise
-
Application:
-
Central Locks
-
Certification:
-
CE
Product Profile
Features
Front and rear double ball bearings.
High-power,low noise.
Long life.
The front can be fixed with 2 M4 screws.
High-speed high torque DC motor,electric drill machine tools.
|
End cap
|
Metal end cap
|
|
Shaft type
|
Carbon Steel Shaft
|
|
Brush type
|
Carbon brush
|
|
Technical Data
|
Customizable
|
