If you need
Linkable in parallel
, please tell me when placing order.
- Product Details
- {{item.text}}
Quick Details
-
Tube Length(ft):
-
4
-
Color Temperature(CCT):
-
4000k
-
Color Rendering Index(Ra):
-
80
-
Lifespan (hours):
-
50000
-
Working Time (hours):
-
50000
-
Product Weight（kg）:
-
3
-
Input Voltage(V):
-
220~240Vac
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unicornlite
-
Model Number:
-
TP040LE4F-BR
-
Product Name:
-
led triproof light
-
Length:
-
600mm/1200mm/1500mm
-
CCT:
-
6000K/4000K/3000K/Customized
-
Power:
-
20/40/60w
-
Lamp Luminous Flux(lm):
-
140lm
Quick Details
-
Warranty(Years):
-
5
-
Lamp Luminous Efficiency(lm/w):
-
130
-
Lamp Body Material:
-
PC
-
Tube Length(ft):
-
4
-
Color Temperature(CCT):
-
4000k
-
Color Rendering Index(Ra):
-
80
-
Lifespan (hours):
-
50000
-
Working Time (hours):
-
50000
-
Product Weight（kg）:
-
3
-
Input Voltage(V):
-
220~240Vac
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Unicornlite
-
Model Number:
-
TP040LE4F-BR
-
Product Name:
-
led triproof light
-
Length:
-
600mm/1200mm/1500mm
-
CCT:
-
6000K/4000K/3000K/Customized
-
Power:
-
20/40/60w
-
Lamp Luminous Flux(lm):
-
140lm
We have warehouse in Europe
Product Description
One end with cable gland
The other end is with a rubber plug.
We provide one more cable gland in accessories bag. You can use that cable gland when you want to link the lamps.
There is a push-in terminal block inside both end caps.
Easy rewiring
Linkable
Features of Our LED tri-proof Light:
1. Easy wiring. Easy to open endcaps for wiring.
2. Linkable. With wire through 3*1.5mm² cables.
3. Osram / Lifud flickering-free driver + Bridgelux LED.
4. 130 lm/w. After using 5 years, lumen maitenance will be still more than 80%
5. With TUV, CE, RoHS, D-mark certificate. If you need other certificates, we can also do it too when you place order.
Above is our standard spec. Besides, we also have below options:
1. Power adjustable function.
0.6M (10W-14W-17W-20W adjustable),
3. Osram / Lifud flickering-free driver + Bridgelux LED.
4. 130 lm/w. After using 5 years, lumen maitenance will be still more than 80%
5. With TUV, CE, RoHS, D-mark certificate. If you need other certificates, we can also do it too when you place order.
Above is our standard spec. Besides, we also have below options:
1. Power adjustable function.
0.6M (10W-14W-17W-20W adjustable),
1.2M ( 20W-25W-30W-40W
adjustable
)
1.5M ( 30W-40W-50W-60W
adjustable
)
2. CCT adjustable fubnction. 3000K--4500K--6000K CCT adjustable.
3. Microwave motion sensor; DALI; 1~10V dimming; Emergency backup
4. 3*L available (L1, L2, L3, N, Earth), convenient for group control.
2. CCT adjustable fubnction. 3000K--4500K--6000K CCT adjustable.
3. Microwave motion sensor; DALI; 1~10V dimming; Emergency backup
4. 3*L available (L1, L2, L3, N, Earth), convenient for group control.
|
Model
|
Watt
|
Voltage
|
Lumen
|
CCT
|
Dimension (L*W*H)
|
|
TP020LE2F-BO
|
20W
|
220~240Vac
|
2600lm
|
4000K/ 5000K/ other
|
659*74*64mm
|
|
TP040LE4F-BO
|
40W
|
220~240Vac
|
5200lm
|
4000K/ 5000K/ other
|
1221*74*64mm
|
|
TP060LE5F-BO
|
60W
|
220~240Vac
|
7800lm
|
4000K/ 5000K/ other
|
1502*74*64mm
|
Detailed Image
After using 5 years, lumen maitenance will be still more than 80%
Please note our standard is
Linkable in series
.
Applications
LED tri-proof light used in parking garage

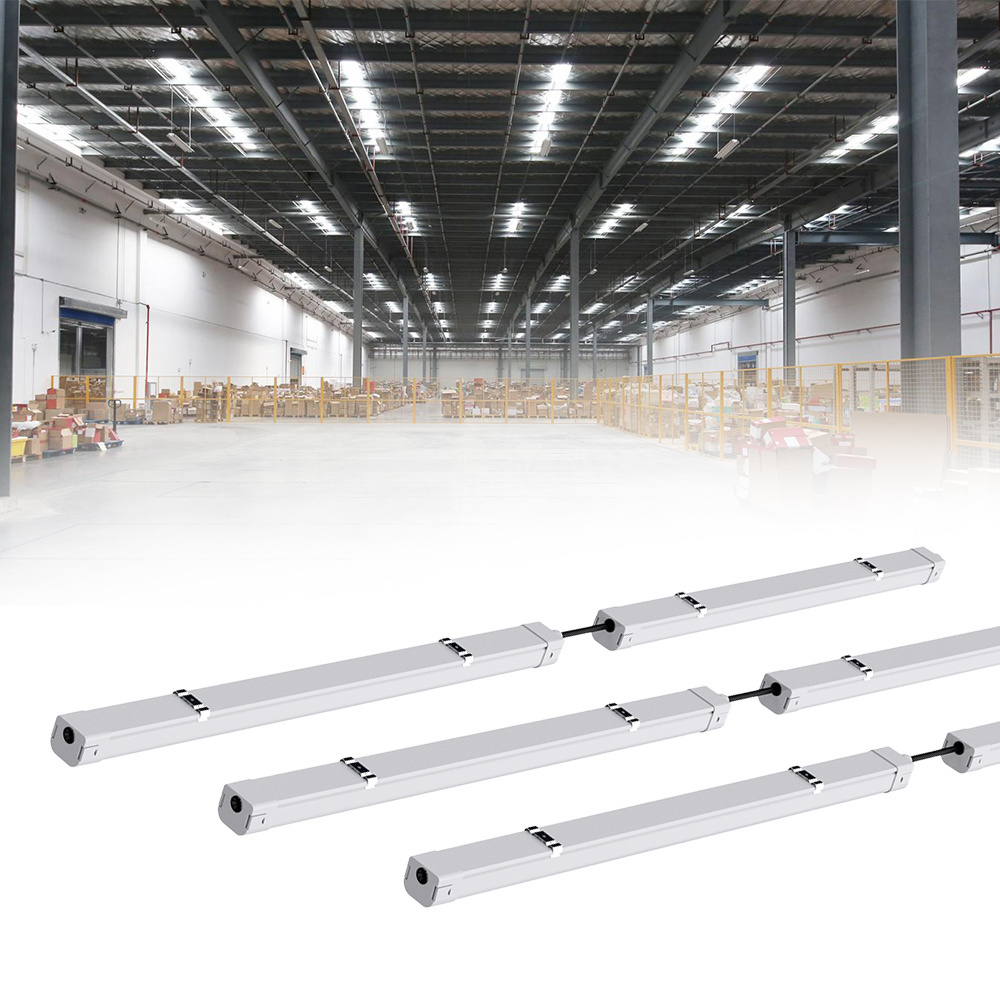

LED tri-proof light used in warehouse
LED triproof light used in factory
Contact us for more info
CUSTOMER PRAISE
OUR ADVANTAGE
COMPANY PROFILE
OUR CERTIFICATE
FOREIGN EXHIBITION
UNICORNLITE CUSTOMER
PACKAGE &PAYMENT
Q1. CAN I HAVE A SAMPLE ORDER FOR LED LIGHT?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. WHAT ABOUT THE LEAD TIME?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.
Q3. DO YOU HAVE ANY MOQ LIMIT FOR LED LIGHT ORDER?
A: Low MOQ, 1pc for sample checking is available
Q4. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: We usually ship by DHL, UPs, FedEx or TNT. it usually takes 3-5 days to arrive. Airine and sea shipping also optional
Q5. HOW TO PROCEED AN ORDER FOR LED LIGHT?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. ls it OK TO PRINT MY LOGO ON LED LIGHT PRODUCT?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: DO YOU OFFER GUARANTEE FOR THE PRODUCTS?
A: Yes, we offer 3/5 years warranty to our products.
Q8: HOW TO DEAL WITH THE FAULTY?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution includingre-call according to real
