Quick Details
-
Brand Name:
-
Elaiter
-
Raw material:
-
Cordierite, mullite, alumina, corundum
-
Size:
-
150x150x100/150/300 mm
-
Usage:
-
RTO, HTAC, RCO, VOC, SCR
-
Quantity of channels:
-
25x25, 32x32, 40x40, 43x43, 50x50, 60x60
-
Hole shape:
-
Square, hexagon circular
-
Certification:
-
ISO9001:2008
Quick Details
-
Material:
-
Alumina Ceramic
-
Place of Origin:
-
Guangxi, China
-
Model Number:
-
ELT- RTO/RCO
-
Brand Name:
-
Elaiter
-
Raw material:
-
Cordierite, mullite, alumina, corundum
-
Size:
-
150x150x100/150/300 mm
-
Usage:
-
RTO, HTAC, RCO, VOC, SCR
-
Quantity of channels:
-
25x25, 32x32, 40x40, 43x43, 50x50, 60x60
-
Hole shape:
-
Square, hexagon circular
-
Certification:
-
ISO9001:2008

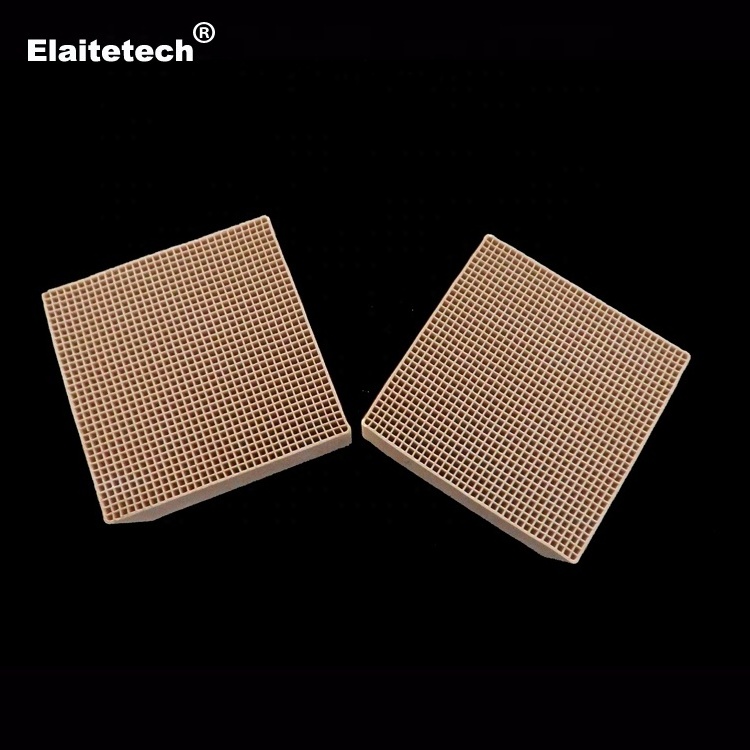

Honeycomb ceramic heat accumulator is a new developed porous industrial ceramic, as a storage material of regenerative thermal oxidation and catalytic oxidation (RTO, RCO) equipment for volatile organic compounds (VOCs) and hazardous air pollutants (HAPs) converted into carbon dioxide and water vapor through thermal oxidation.
Regard to RTO/RCO of the different requirements, we can offer various structures and materials of honeycomb ceramics. They have the properties of corrosion resistances, high specific surface area, low resistance, low thermal expansion coefficient, good thermal conductivity and thermal-shock resistance performance.
Material: Alumina porcelain, dense alumina, dense cordierite, porous cordierite, porous mullite, stoneware porcelain, etc.
Size: 100×100×100 mm, 100×150×150 mm, 150×150×150 mm, 150×150×300mm and others.
Quantity of hole: 20×20, 25×25, 32×32, 40×40, 43×43, 50×50, 60×60 and others.
Hole shape: Square, rectangular, hexagonal, circular, triangular and so on.
We can also be customized according to customer requirements.
|
Item |
Alumina Ceramic |
Loosen Mullite |
Compact Cordierite |
Loosen Cordierite |
Stoneware Porcelain |
|
|
AL 2 O 3 |
% |
52.0 |
68.3 |
25.5 |
35.4 |
30.4 |
|
SiO 2 |
% |
43.3 |
28.9 |
57.2 |
51.5 |
66.1 |
|
MgO |
% |
0.1 |
0.2 |
7.9 |
11.5 |
0.13 |
|
Other |
% |
<3.5 |
<2.0 |
<3.0 |
<1.5 |
<3.0 |
|
Material density |
g/m 3 |
2.68 |
2.31 |
2.42 |
2.16 |
2.47 |
|
Loose density |
Kg/m 3 |
965 |
832 |
871 |
778 |
889 |
|
Coefficient of thermal expansion |
×10 -6 / K |
6.2 |
6.2 |
3.5 |
3.4 |
4.8 |
|
Specific capacity |
J/Kg K |
992 |
998 |
942 |
1016 |
897 |
|
Thermal conductivity |
W/mk |
2.79 |
2.42 |
1.89 |
1.63 |
1.37 |
|
Resistance to fluctuated temperature |
K |
Max 500 |
Max 550 |
Max 500 |
Max 600 |
Max 500 |
|
Softening temperature |
°C |
1500 |
1580 |
1320 |
1400 |
1380 |
|
Highest working temperature |
°C |
1400 |
1480 |
1200 |
1300 |
1280 |
|
Average thermal capacity |
KWh/m 3 K |
0.266 |
0.231 |
0.228 |
0.219 |
0.222 |
|
Porosity ratio |
% |
0.8 |
26.0 |
0.4 |
15.0 |
0.6 |
|
Acid resistance |
% |
0.2 |
2.5 |
5.0 |
16.7 |
0.3 |
Honeycomb Ceramic for RTO (Heat Media)
Regenerative thermal oxidizer (RTO) is effective exhaust air treatment for a wide range of processes. The system uses a bed of ceramic material (e.g. Honeycomb ceramic heat exchange media) to absorb heat from the exhaust gas and use the captured heat to preheat the incoming process gas stream. This significantly lowers overall operating costs. The regenerative thermal oxidizer (RTO) converts volatile organic compounds (VOCs) and hazardous air pollutants (HAPs) to carbon dioxide and water vapor through thermal oxidation.
Honeycomb for RCO (Catalyst Support)
Regenerative catalytic oxidizer (RCO) is improved on basis of RTO structure, added in the oxidizers boiler with the layer of special catalyst material. Using catalytic oxidation to provide sufficient heat required to destroy VOC. This technology can reduce the RTO system operating temperatures, improve efficiency and reduce the fuel consumption.
Regenerative catalytic oxidizer (RCO) destroys air toxins and Volatile Organic Compounds (VOCs) that are discharged in industrial process exhausts. The RCO system achieves VOC destruction through the process of catalytic oxidation, converting the VOCs to carbon dioxide and water vapor, recycling released energy to reduce operating costs.
Honeycomb thermal store catalyst ceramic is used for waste gas treatment (RTO/RCO) of the different requirements, selecting many kinds of new highly effective ceramic material to make. It has the properties of corrosion resistances, high specific surface area, low resistance, low thermal expansion coefficient, good thermal conductivity and thermal-shock resistance performance.
