Quick Details
-
Brand Name:
-
GAOFU/OEM
-
Product name:
-
1X8 single mode 0.9mm mini steel tube fiber optic plc Splitter
-
Grade:
-
Telecom Level
-
Operating Wavelength(nm):
-
1260~1650
-
Fiber Type:
-
G657A1 or customized
-
Connector:
-
SC/APC,SC/UPC,or customized
-
Cable Length of Blockless Splitter:
-
1m ,1.5m, 2m or customized length
-
Fiber diameter:
-
0.9mm
-
Cassette material:
-
Steel tube mini type
-
Working temperature:
-
-40°C~+85°C
-
Certification:
-
CE RoHS ISO9001
Quick Details
-
Type:
-
PLC splitter
-
Model Number:
-
1x8 PLC Splitter
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GAOFU/OEM
-
Product name:
-
1X8 single mode 0.9mm mini steel tube fiber optic plc Splitter
-
Grade:
-
Telecom Level
-
Operating Wavelength(nm):
-
1260~1650
-
Fiber Type:
-
G657A1 or customized
-
Connector:
-
SC/APC,SC/UPC,or customized
-
Cable Length of Blockless Splitter:
-
1m ,1.5m, 2m or customized length
-
Fiber diameter:
-
0.9mm
-
Cassette material:
-
Steel tube mini type
-
Working temperature:
-
-40°C~+85°C
-
Certification:
-
CE RoHS ISO9001

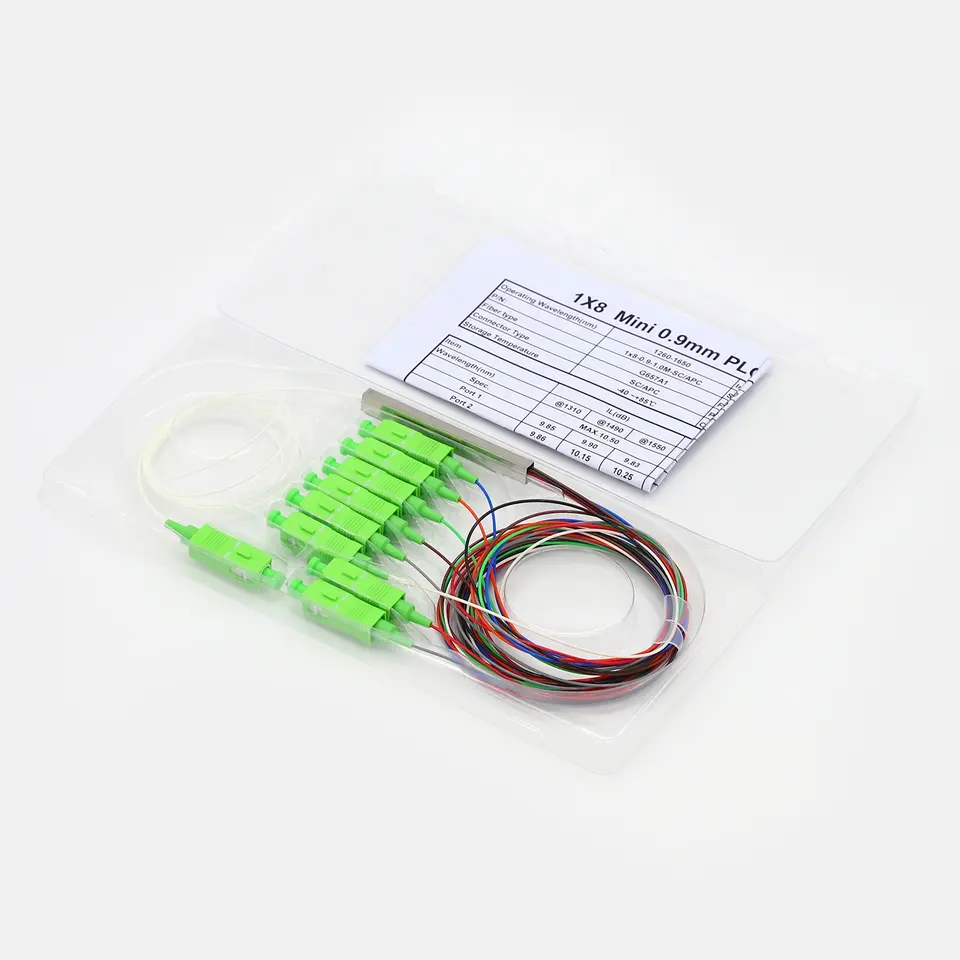

1*8 Steel Tube G657A 0.9mm Fiber Optic PLC Splitter With SC/APC connector
Fiber Optic PLC (planar lightwave circuit) splitter is fabricated by using silica optical waveguide technology. It features wide operating wavelength range, good channel-to-channel uniformity,high reliability and small size, and is widely used in PON networks to realize optical signal power management. We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications. All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.
Ordering information
| PLC | Port | Pigtal Style | Fiber Length | IN/OUT Connector | Package type |
| PLC |
0102=1x2
0104=1x4 1606=1x6 0108=1x8 0112=1x12 0116=1x16 0132=1x32 0164=1x64 1128=1x128 0204=2x4 0208=2x8 0216=2x16 0232=2x32 0264=2x64 |
0=bare fiber
1=900umLoose tube 2=2.0mm cable LSZH 3=3.0mm cable LSZH |
0=0.5m
1=1m 2=1.5m 3=2m 4=3m 5=4m S=Specify |
0=none
1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/APC 6=LC/UPC 7=ST S=Specify |
A=Bare
B=Blockless C=ABS box D=Insert type E=Pallet type F=19” 1U rackmount S=Specify |
Ultra-end insertion loss and associated loss of polarization
Good spectral uniformity
Wide wavelength bandwidth
Wide range of working environment
High reliability
Small
FTTX Systems
GEPON Networks
CATV
Optical Signal Distribution
