Quick Details
-
Model Number:
-
ZTS 360R
-
Model:
-
ZTS-360R
-
Reflectorless distance:
-
600m
-
Single prism distance:
-
3000m
-
Triple prism distance:
-
6000m
-
Magnification:
-
30X
-
Distance measurement:
-
2mm+2ppm
-
Angle measurement accuracy:
-
2"
-
Reflectorless accuracy:
-
3mm+2ppm
-
Telescope Field of View:
-
1°30'(2.7m at 100m)
-
Compensator System:
-
Dual-axis (optional)
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Hi-target
-
Model Number:
-
ZTS 360R
-
Model:
-
ZTS-360R
-
Reflectorless distance:
-
600m
-
Single prism distance:
-
3000m
-
Triple prism distance:
-
6000m
-
Magnification:
-
30X
-
Distance measurement:
-
2mm+2ppm
-
Angle measurement accuracy:
-
2"
-
Reflectorless accuracy:
-
3mm+2ppm
-
Telescope Field of View:
-
1°30'(2.7m at 100m)
-
Compensator System:
-
Dual-axis (optional)
Hi-target ZTS360R total station parts with high-grade dustproof and waterproof structure design
Product Description:
Compact and Lightweight Designed, easy to carry and setup. With powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, ZTS-360R improves the speed and distance of measurement efficiently. Using STM32 architecture and high-grade dustproof and waterproof structure design, Comprehensively enhance the overall performance of ZTS-360R
Key Features:
Compatible to the 3rd party data processing software, satisfying users’ requirements for different data format.
|
Hi-target ZTS-360R Total Station |
|
|
Angle Measurement |
|
|
Measurement Method: |
Absolute Encoding |
|
Minimum Readout: |
1″/5″/10″(0.3mgon/1.5mgon/3mgon)optional |
|
Accuracy |
2” |
|
Distance Measurement (with Reflector) |
|
|
Single Prism |
3000m (9,842ft.) under good condition3 |
|
Three Prisms |
6000m (19,685ft.) under good condition3 |
|
Reflective Sheet |
800m (2,624 ft.) |
|
Accuracy |
2 mm +2ppm |
|
Measuring Time |
0.8s/0.3s |
|
Distance Measurement (Reflectorless) |
|
|
Reflectorless2 Range |
600m |
|
Single Prism |
>7500m (24606ft.) |
|
Accuracy |
3mm+2ppm |
|
Measuring Time |
1.5s |
|
Telescope |
|
|
Magnification |
30X |
|
Field of View |
1°30′ (2.7m at 100m) |
|
Minimum Focusing Distance |
1.2m |
|
Reticle |
Illuminated |
|
Compensator |
|
|
System |
Dual-axis (optional) |
|
Working Range |
±3′ |
|
Setting Accuracy |
1″ |
|
Bluetooth |
|
|
Interface |
Standard RS232, USB, mini-USB |
|
Internal Data Memory |
Approx. 20,000 Points, 8G USB pen driver |
|
Data Format |
ASCII |
|
Operation |
|
|
Operation system |
Real-time Operating System |
|
Display |
High resolution backlight black and white display with contrast adjustment/ Graphics: 192 x 96 pixels / Character: 6 lines x 25 characters |
|
Keyboard |
2 sides Alphanumeric backlit crystal keyboard |
|
Trigger Key |
on right istrument support |
|
Laser Plummet |
|
|
Type |
Laser point, 4 brightness levels adjustment / Optical plummet (optional) |
|
Centering Accuracy |
1 mm at 1.5m instrument height |
|
Power Supply |
|
|
Battery Type |
Rechargeable Li-ion battery |
|
Voltage/Capacity |
ZBA-400: 7.4V (DC) / 3000mAh |
|
Operating Time With ZBA-400 |
Optimal 16 hours5 (Continuous angle measurement every 30 seconds) |
|
Measuring Times |
Approx. 12000 times |
|
Environmental |
|
|
Operating Temperature |
-20℃ ~+50℃( -4℉ to +122℉) |
|
Storage Temperature |
-40℃ ~+70℃(-40℉ to +158℉) |
|
Dust&Water Proof (IEC60529 Standard)/Humidity |
IP54, 95%, non-condensing |
Phisical Charactors :
Weight( without battery): 3.7kg (8.16lb
Dimension: 300mmx150mmx150mm (HxWxD)

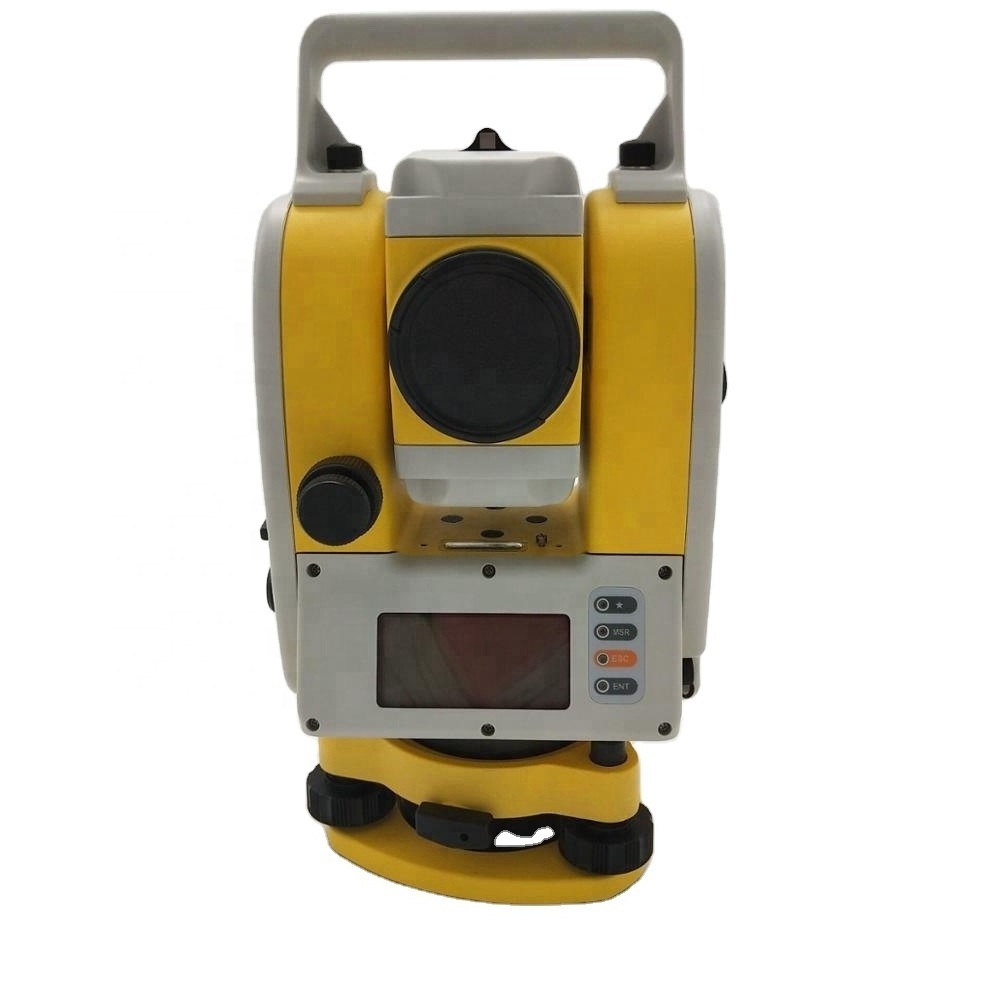

Product Display:
Hi-target ZTS360R total station parts with high-grade dustproof and waterproof structure design
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be bored by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement
5. Technical support is offered 24/365
1.What kind payment method we accept?
T/T, L/C at sight, Western Union, Trade Assurance on Alibaba, Moneygram and Paypal
Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY
2.How can you guarantee payment safety ?
Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt
3.What kinds of shipment for goods and how long time it takes ?
Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt
4.Does your company ship battery or not ?
Our company can receive battery order and ship to customer normally, except a few special countries
5.Do you have other items not displayed on your website ?
Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time
